TM20G-KDZ (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Jan 1981
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(7910- )

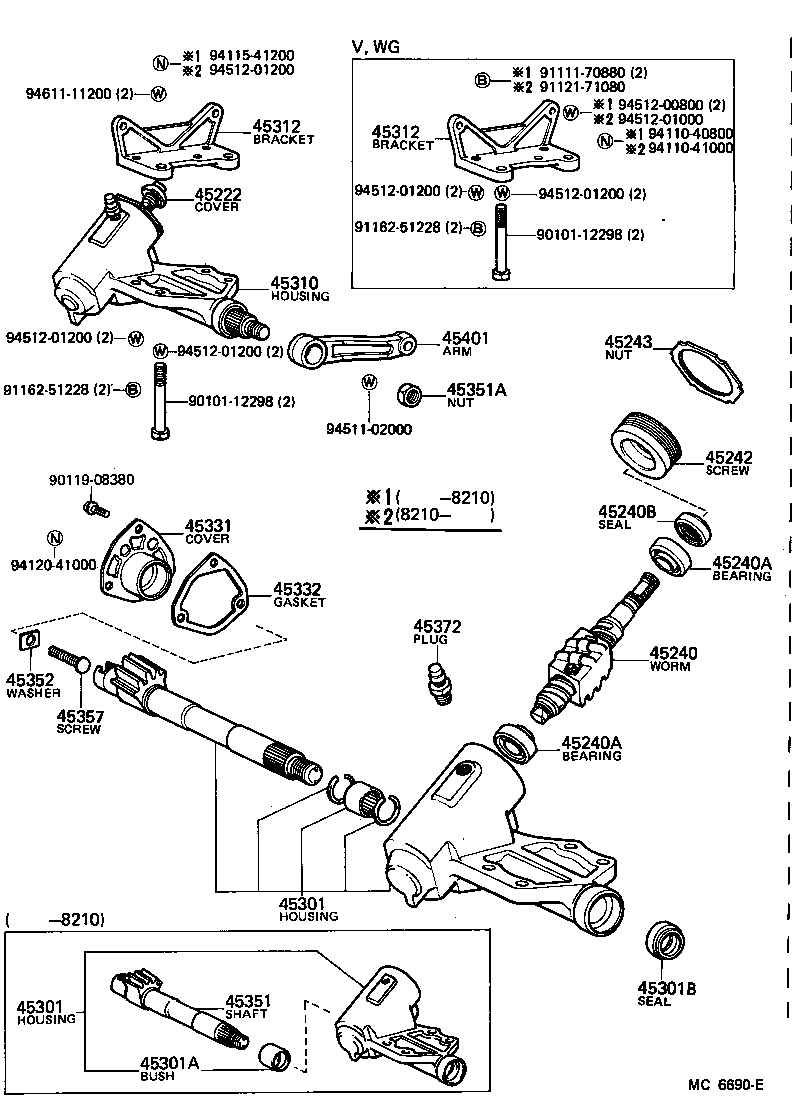

Click highlighted areas on diagram

diagram 45222 45240 45240A 45240A 45240B 45242 45243 45301 45301 45301A 45301B 45310 45312 45312 45331 45332 45351 45351A 45352 45357 45372 45401 9010112298 9010112298 9011908380 9111170880 9112171080 9116251228 9116251228 9411040800 9411041000 9411541200 9412041000 9451102000 9451200800 9451201000 9451201200 9451201200 9451201200 9451201200 9451201200 9461111200
Part # Description Qty Price
45222 - COVER, STEERING GEAR DUST
45222-27010

KM20,TM20

 1
45240 - WORM ASSY, STEERING
45240-14040

KM20,TM20

 1
45240A - BEARING(FOR STEERING WORM)
90369-43001

KM20,TM20

 2
45240A - BEARING(FOR STEERING WORM)
90369-43001

KM20,TM20

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-19001

KM20,TM20

 1
45242 - SCREW, WORM BEARING ADJUSTING
45242-30050

KM20,TM20

 1
45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK
45243-30060

KM20,TM20

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-27040

KM20,TM20

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-27040

KM20,TM20

 1
45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1
90999-73008

KM20,TM20

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90310-28027

KM20,TM20

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-27070

KM20,TM20

 1
45312 - BRACKET, STEERING GEAR HOUSING
45312-27030

KM20,TM20

 1
45312 - BRACKET, STEERING GEAR HOUSING
45312-27030

KM20,TM20

 1
45331 - COVER, SECTOR SHAFT END
45304-27010

KM20,TM20

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-22020

KM20,TM20

 1
45351 - SHAFT, STEERING SECTOR
45351-22140

KM20,TM20

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-20147

KM20,TM20

 1
45352 - WASHER, SECTOR SHAFT THRUST
45352-14030

KM20,TM20

厚さ=2.08,T=2.08

 1
45352-14060

KM20,TM20

厚さ=2.20,T=2.20

 1
45352-14010

KM20,TM20

厚さ=2.00,T=2.00

 1
45352-14020

KM20,TM20

厚さ=2.04,T=2.04

 1
45352-14050

KM20,TM20

厚さ=2.16,T=2.16

 1
45352-14040

KM20,TM20

厚さ=2.12,T=2.12

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-30040

KM20,TM20

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03058

KM20,TM20

 1
45401 - ARM SUB-ASSY, PITMAN
45411-27040

KM20,TM20

 1
Common parts
90101-12298
90119-08380
91111-70880
91121-71080
91162-51228
94110-40800
94110-41000
94115-41200
94120-41000
94511-02000
94512-00800
94512-01000
94512-01200
94611-11200
