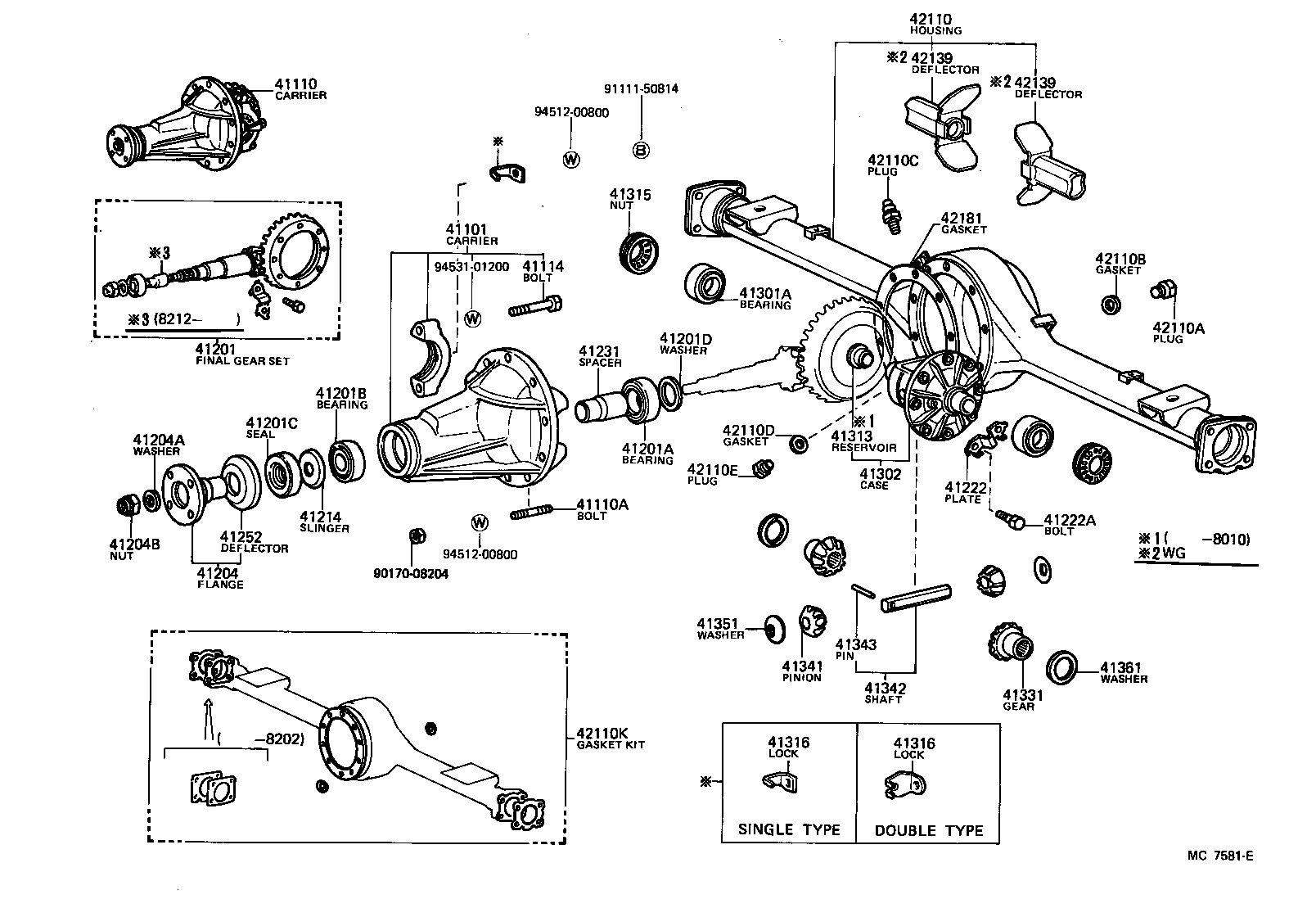

TM20G-KDZ (1979)
Toyota Lite/Townace Truck
(7910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-30010 |
CM20,KM2#,TM20,YM20,21..ST |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-20241 |
CM20,TM20..WG *FGR=41:10=4.100,*AXC=E292,*FGR=41:10 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
CM20,KM2#,TM20,YM20,21..ST ﾈｼﾞ部長さ=12 & 15,長さ=34 |
10 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12376 |
CM2#,KM2#,TM20,YM2# |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39217 |
TM20 *AXC=E292,*FGR=41:10 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97609-32307 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30008 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35396 |
CM2#,KM2#,TM20,YM2# 厚さ=2.36,ﾏｰｸ 05,T=2.35-2.37 |
1 | ||
| 90201-35404 |
CM2#,KM2#,TM20,YM2# 厚さ=2.60,ﾏｰｸ 13,T=2.59-2.61 |
1 | ||
| 90201-35399 |
CM2#,KM2#,TM20,YM2# 厚さ=2.43,ﾏｰｸ 08,T=2.44-2.46 |
1 | ||
| 90201-35435 |
CM2#,KM2#,TM20,YM2# 厚さ=2.27,ﾏｰｸ 02,T=2.26-2.28 |
1 | ||
| 90201-35437 |
CM2#,KM2#,TM20,YM2# 厚さ=2.33,ﾏｰｸ 04,T=2.32-2.34 |
1 | ||
| 90201-35434 |
CM2#,KM2#,TM20,YM2# 厚さ=2.24,ﾏｰｸ 01,T=2.23-2.25 |
1 | ||
| 90201-35401 |
CM2#,KM2#,TM20,YM2# 厚さ=2.51,ﾏｰｸ 10,T=2.50-2.52 |
1 | ||
| 90201-35398 |
CM2#,KM2#,TM20,YM2# 厚さ=2.42,ﾏｰｸ 07,T=2.41-2.43 |
1 | ||
| 90201-35397 |
CM2#,KM2#,TM20,YM2# 厚さ=2.39,ﾏｰｸ 06,T=2.38-2.40 |
1 | ||
| 90201-35400 |
CM2#,KM2#,TM20,YM2# 厚さ=2.48,ﾏｰｸ 09,T=2.47-2.49 |
1 | ||
| 90201-35440 |
CM2#,KM2#,TM20,YM2# 厚さ=2.69,ﾏｰｸ 16,T=2.68-2.70 |
1 | ||
| 90201-35439 |
CM2#,KM2#,TM20,YM2# 厚さ=2.66,ﾏｰｸ 15,T=2.65-2.67 |
1 | ||
| 90201-35402 |
CM2#,KM2#,TM20,YM2# 厚さ=2.54,ﾏｰｸ 11,T=2.53-2.55 |
1 | ||
| 90201-35441 |
CM2#,KM2#,TM20,YM2# 厚さ=2.72,ﾏｰｸ 17,T=2.71-2.73 |
1 | ||
| 90201-35436 |
CM2#,KM2#,TM20,YM2# 厚さ=2.30,ﾏｰｸ 03,T=2.29-2.31 |
1 | ||
| 90201-35403 |
CM2#,KM2#,TM20,YM2# 厚さ=2.57,ﾏｰｸ 12,T=2.56-2.58 |
1 | ||
| 90201-35438 |
CM2#,KM2#,TM20,YM2# 厚さ=2.63,ﾏｰｸ 14,T=2.62-2.64 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20030 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18060 |
KM20,TM20 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30030 |
CM2#,KM2#,TM20,YM2# |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
CM2#,KM2#,TM20,YM2# |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22020 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-30021 |
KM20,TM20 |
1 | ||
| 41313 - RESERVOIR, DIFFERENTIAL CASE OIL | ||||
| 41313-30020 |
KM20,TM20 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-30010 |
CM2#,KM2#,TM20,YM2# DOUBLE TYPE |
2 | ||
| 41316-30010 |
CM2#,KM2#,TM20,YM2# SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-30010 |
CM2#,KM2#,TM20,YM2# DOUBLE TYPE |
2 | ||
| 41316-30010 |
CM2#,KM2#,TM20,YM2# SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-30020 |
KM20,TM20 N=16 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30010 |
KM20,TM20 N=10 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-39015 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30031 |
KM20,TM20 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30020 |
KM20,TM20 T=1.4-1.5 |
2 | ||
| 41362-30020 |
KM20,TM20 T=1.5-1.6 |
2 | ||
| 41364-30010 |
KM20,TM20 T=1.7-1.8 |
2 | ||
| 41363-30010 |
KM20,TM20 T=1.6-1.7 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-27070 |
CM20,TM20,YM21..WG |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 42110K - GASKET KIT, DIFFERENTIAL CARRIER | ||||
| 04412-23010 |
KM20,TM20..ST |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-30010 |
CM20,KM2#,TM20,YM20,21..ST |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 91111-50814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||
