TM20G-KDZ (1979)
Toyota Lite/Townace Truck

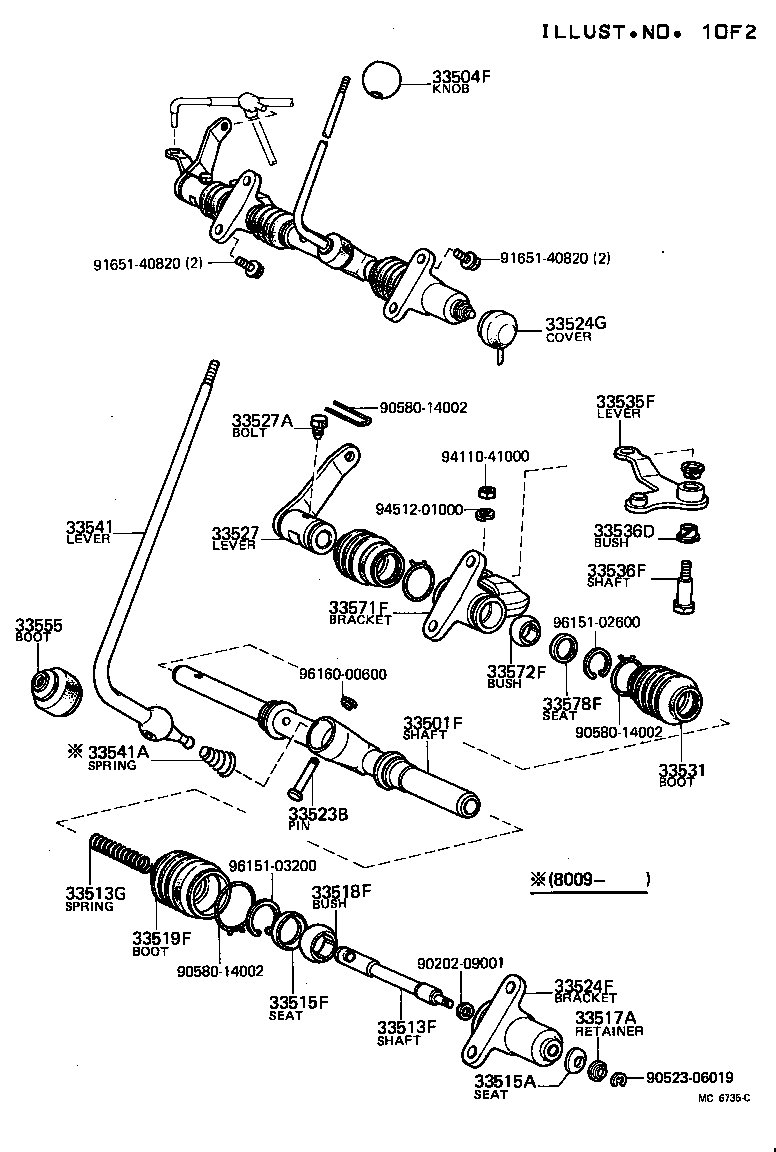

ILLUST NO. 1 OF 2(7910-8210)4F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT) | ||||
| 33501-27040 |
TM20..4F |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-22100 |
TM20..4F..(DLX,XL) |
1 | ||
| 33504-2210106 |
TM20..4F..(DLX,XL) BROWN,BROWN |
1 | ||
| 33504-2210101 |
TM20..4F..(DLX,XL) BLACK,BLACK |
1 | ||
| 33513F - SHAFT, CONTROL SHAFT BRACKET | ||||
| 33513-27010 |
TM20..4F |
1 | ||
| 33513G - SPRING, COMPRESSION (FOR CONTROL SHAFT BRACKET SHAFT) | ||||
| 90501-12040 |
TM20..4F |
1 | ||
| 33515A - SEAT, CONTROL UPPER SHAFT (FOR FLOOR SHIFT) | ||||
| 33515-30010 |
TM20..4F,5F |
1 | ||
| 33515F - SEAT, CONTROL SHAFT | ||||
| 33515-27010 |
CM20,TM20,YM21..4F,5F |
1 | ||
| 33517A - RETAINER, CONTROL UPPER SHAFT SEAT | ||||
| 33517-30010 |
TM20..4F,5F |
1 | ||
| 33518F - BUSH, CONTROL SHAFT | ||||
| 33518-27020 |
CM20,TM20,YM21..4F,5F |
1 | ||
| 33519F - BOOT, CONTROL SHAFT DUST | ||||
| 33519-27010 |
TM20..4F |
1 | ||
| 33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 90249-08033 |
TM20..4F,5F |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-27010 |
TM20..4F |
1 | ||
| 33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33527-27020 |
TM20..4F |
1 | ||
| 33527A - BOLT (FOR CONTROL SHIFT LEVER) | ||||
| 33218-35010 |
TM20..4F,5F |
1 | ||
| 33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER) | ||||
| 33531-27010 |
TM20..4F |
2 | ||
| 33535F - LEVER, CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33535-27020 |
TM20..4F |
1 | ||
| 33536D - BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT) | ||||
| 90386-13007 |
TM20..4F,5F |
2 | ||
| 33536F - SHAFT, CONTROL SELECT LEVER (FOR FLOOR SHIFT) | ||||
| 33536-25010 |
TM20..4F,5F |
1 | ||
| 33541 - LEVER, SHIFT | ||||
| 33541-27040 |
TM20..4F,5F |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-27010 |
TM20..4F |
1 | ||
| 33571F - BRACKET, CONTROL SHAFT, LOWER NO.2 | ||||
| 33571-27020 |
TM20..4F |
1 | ||
| 33572F - BUSH, CONTROL SHAFT LOWER | ||||
| 33572-27010 |
TM20..4F |
1 | ||
| 33578F - SEAT, CONTROL SHAFT LOWER BUSH | ||||
| 33578-27010 |
TM20..4F |
1 | ||
| Common parts | ||||
| 90202-09001 | ||||
| 90523-06019 | ||||
| 90580-14002 | ||||
| 91651-40820 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 96151-02600 | ||||
| 96151-03200 | ||||
| 96160-00600 | ||||

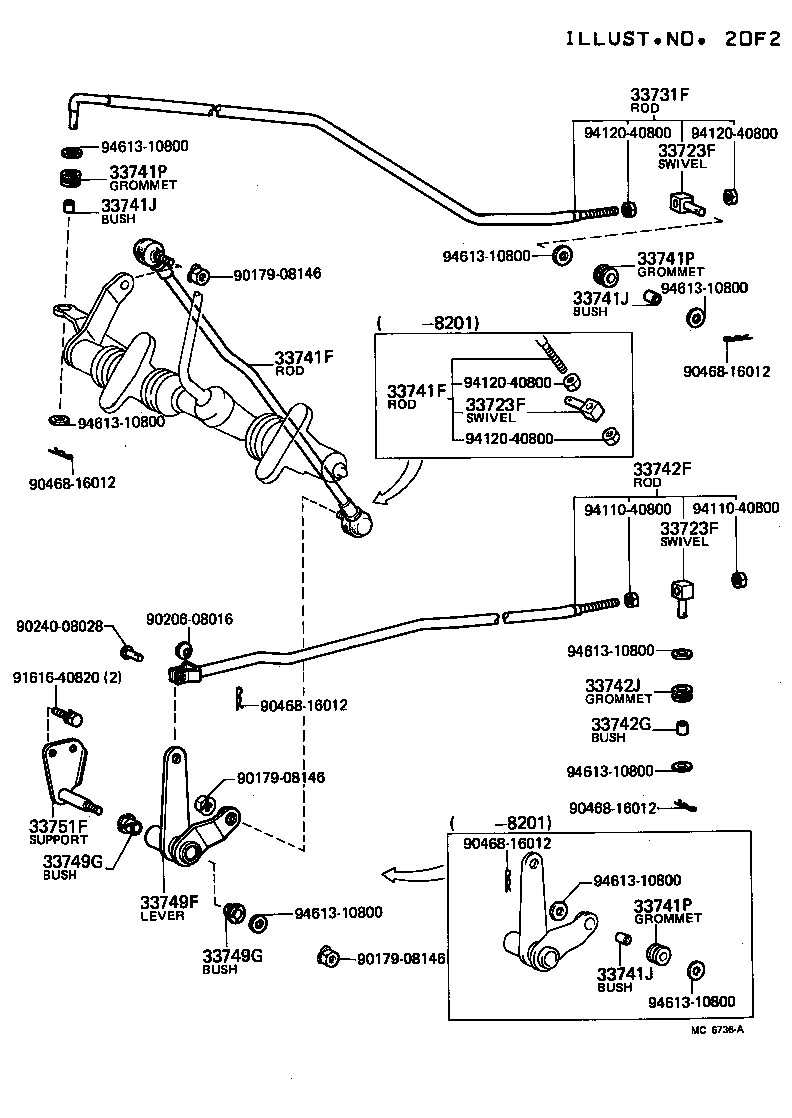

ILLUST NO. 2 OF 2(7910-8210)4F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-10020 |
CM20,TM20,YM21..4F,5F |
3 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-10020 |
CM20,TM20,YM21..4F,5F |
3 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-10020 |
CM20,TM20,YM21..4F,5F |
3 | ||
| 33731F - ROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33720-27040 |
TM20..4F |
1 | ||
| 33741F - ROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33710-27040 |
TM20..4F,5F |
1 | ||
| 33741F - ROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33710-27040 |
TM20..4F,5F |
1 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
CM20,TM20,YM21..4F,5F |
3 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
CM20,TM20,YM21..4F,5F |
3 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
CM20,TM20,YM21..4F,5F |
3 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
CM20,TM20,YM21..4F,5F |
3 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
CM20,TM20,YM21..4F,5F |
3 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
CM20,TM20,YM21..4F,5F |
3 | ||
| 33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33730-27010 |
TM20..4F |
1 | ||
| 33742G - BUSH(FOR SHIFTING, NO.2 ROD) | ||||
| 90389-08005 |
CM20,TM20,YM21..4F,5F |
1 | ||
| 33742J - GROMMET(FOR SHIFTING NO.2 ROD) | ||||
| 90480-17177 |
CM20,TM20,YM21..4F,5F |
1 | ||
| 33749F - LEVER, GEAR SHIFT, NO.3 (FOR FLOOR SHIFT) | ||||
| 33749-27020 |
TM20..4F,5F |
1 | ||
| 33749G - BUSH (FOR FLOOR SHIFT GEAR SHIFTING LEVER) | ||||
| 90386-15110 |
CM20,TM20,YM20,21..3FC,4F,5F |
2 | ||
| 33749G - BUSH (FOR FLOOR SHIFT GEAR SHIFTING LEVER) | ||||
| 90386-15110 |
CM20,TM20,YM20,21..3FC,4F,5F |
2 | ||
| 33751F - SUPPORT, GEAR SHIFT LINK LEVER (FOR FLOOR SHIFT) | ||||
| 33705-27010 |
TM20..4F |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90206-08016 | ||||
| 90240-08028 | ||||
| 90468-16012 | ||||
| 91616-40820 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94613-10800 | ||||
