TM20G-JXZ (1979)
Toyota Lite/Townace Truck
Production
Oct 1979
-
Jan 1981
Engine
13TU
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7910-8210)

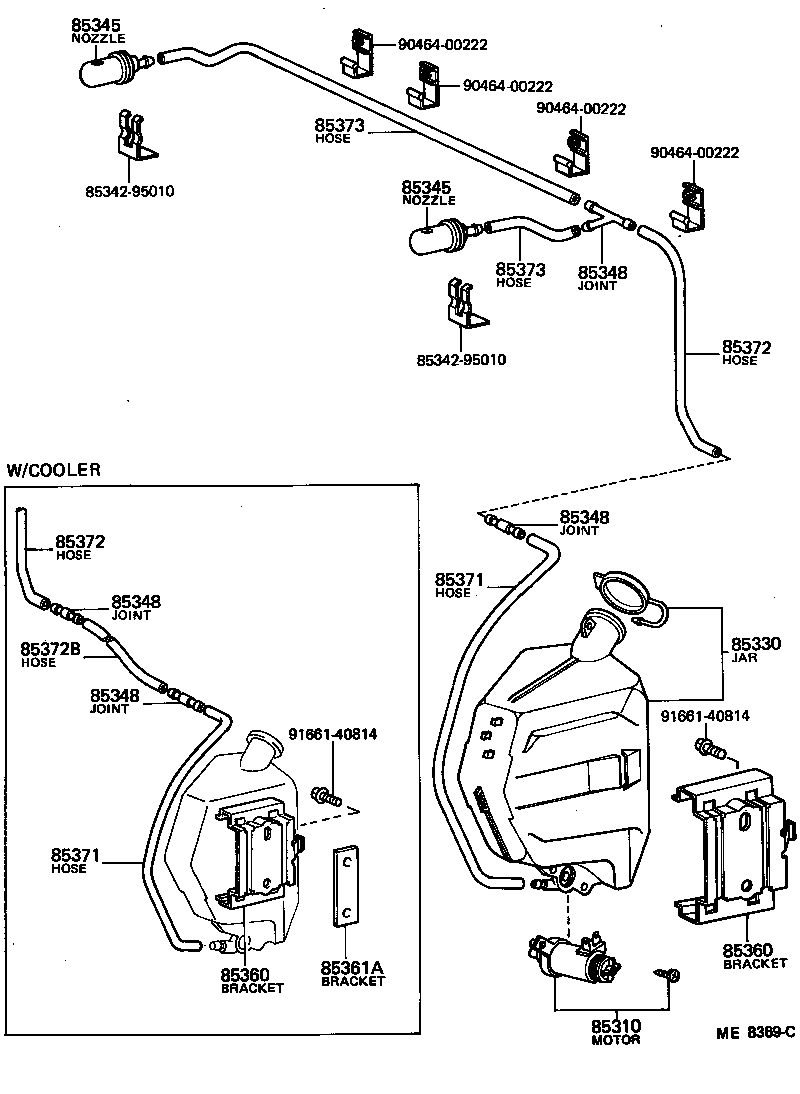

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-95700 |
KM20,TM20 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-95700 |
KM20,TM20 |
1 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-95011 |
KM20,TM20 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-95011 |
KM20,TM20 |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-14010 |
CM2#,KM2#,TM20,YM2# 3WAY |
1 | ||
| 85355-10060 |
KM20,TM20 2WAY |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-14010 |
CM2#,KM2#,TM20,YM2# 3WAY |
1 | ||
| 85355-10060 |
KM20,TM20 2WAY |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-14010 |
CM2#,KM2#,TM20,YM2# 3WAY |
1 | ||
| 85355-10060 |
KM20,TM20 2WAY |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-14010 |
CM2#,KM2#,TM20,YM2# 3WAY |
1 | ||
| 85355-10060 |
KM20,TM20 2WAY |
2 | ||
| 85360 - BRACKET ASSY, WINDSHIELD WASHER | ||||
| 85361-95701 |
KM20,TM20 |
1 | ||
| 85360 - BRACKET ASSY, WINDSHIELD WASHER | ||||
| 85361-95701 |
KM20,TM20 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06341 |
KM20,TM20 *H,L=280 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06341 |
KM20,TM20 *H,L=280 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06009 |
KM20,TM20 *H,L=360 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06009 |
KM20,TM20 *H,L=360 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90446-06265 |
KM20,TM20..DLX,GXL,SUP,XL *H,L=230,W/COOLER |
1 | ||
| 90446-06013 |
KM20,TM20..DLX,GXL,SUP,XL *H,L=230,W/COOLER |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33321 |
KM20,TM20 *H,L=100 |
1 | ||
| 90446-06013 |
CM2#,KM2#,TM20,YM2# *H,L=100 |
1 | ||
| 90446-06052 |
KM20,TM20 *H,L=660 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33321 |
KM20,TM20 *H,L=100 |
1 | ||
| 90446-06013 |
CM2#,KM2#,TM20,YM2# *H,L=100 |
1 | ||
| 90446-06052 |
KM20,TM20 *H,L=660 |
1 | ||
| Common parts | ||||
| 85342-95010 | ||||
| 90464-00222 | ||||
| 91661-40814 | ||||
