TM20G-JXZ (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Jan 1981
Engine 13TU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

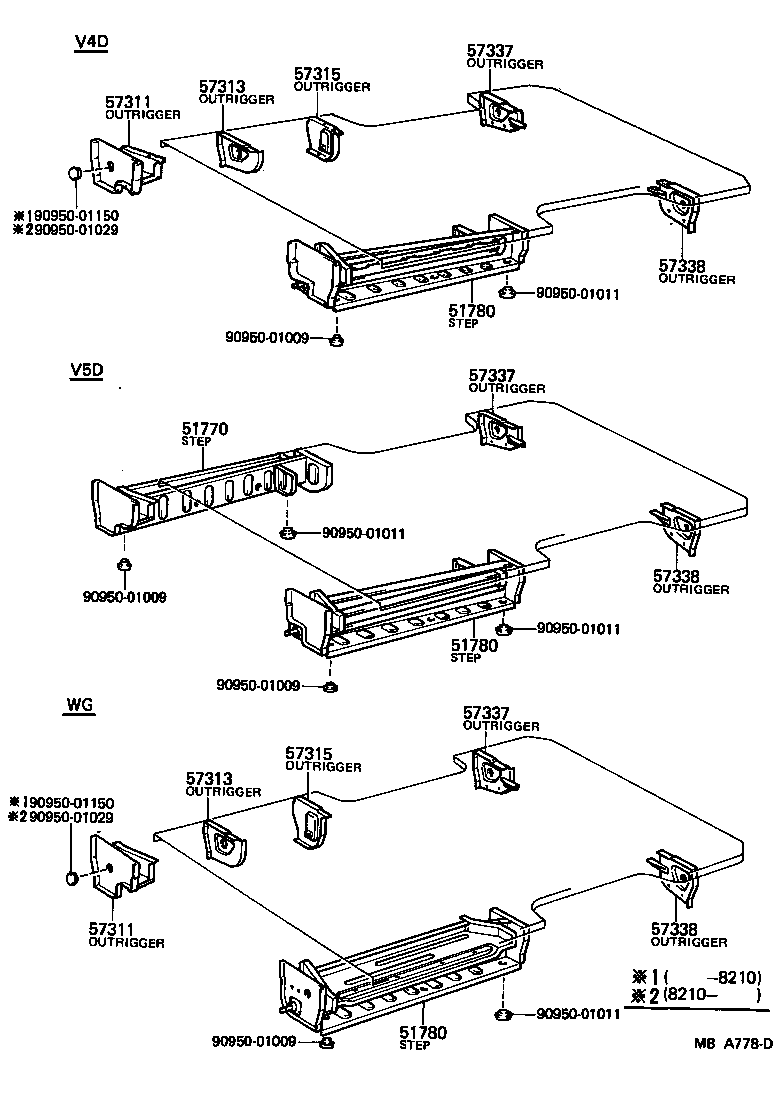

ILLUST NO. 2 OF 2(7910-8508)V,WG..ST

Click highlighted areas on diagram

diagram 51770 51780 51780 51780 57311 57311 57313 57313 57315 57315 57337 57337 57337 57338 57338 57338 9095001009 9095001009 9095001009 9095001009 9095001011 9095001011 9095001011 9095001011 9095001029 9095001029 9095001150 9095001150
Part # Description Qty Price
51780 - STEP ASSY, FRONT, LH
58306-95701

TM20

 1
51780 - STEP ASSY, FRONT, LH
58306-95701

TM20

 1
51780 - STEP ASSY, FRONT, LH
58306-95701

TM20

 1
57311 - OUTRIGGER, NO.1 RH
57301-95701

TM20;KM20..V4D..ST

 1
57311 - OUTRIGGER, NO.1 RH
57301-95701

TM20;KM20..V4D..ST

 1
57313 - OUTRIGGER, NO.2 RH
57317-95702

CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D..ST

 1
57313 - OUTRIGGER, NO.2 RH
57317-95702

CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D..ST

 1
57315 - OUTRIGGER, NO.3 RH
57303-95700

CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D..ST

 1
57315 - OUTRIGGER, NO.3 RH
57303-95700

CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D..ST

 1
57337 - OUTRIGGER, REAR RH
57305-95700

CM20,KM2#,TM20,YM20,21..(V,WG)..ST

 1
57337 - OUTRIGGER, REAR RH
57305-95700

CM20,KM2#,TM20,YM20,21..(V,WG)..ST

 1
57337 - OUTRIGGER, REAR RH
57305-95700

CM20,KM2#,TM20,YM20,21..(V,WG)..ST

 1
57338 - OUTRIGGER, REAR LH
57306-95700

CM20,KM2#,TM20,YM20,21..(V,WG)..ST

 1
57338 - OUTRIGGER, REAR LH
57306-95700

CM20,KM2#,TM20,YM20,21..(V,WG)..ST

 1
57338 - OUTRIGGER, REAR LH
57306-95700

CM20,KM2#,TM20,YM20,21..(V,WG)..ST

 1
Common parts
90950-01009
90950-01011
90950-01029
90950-01150

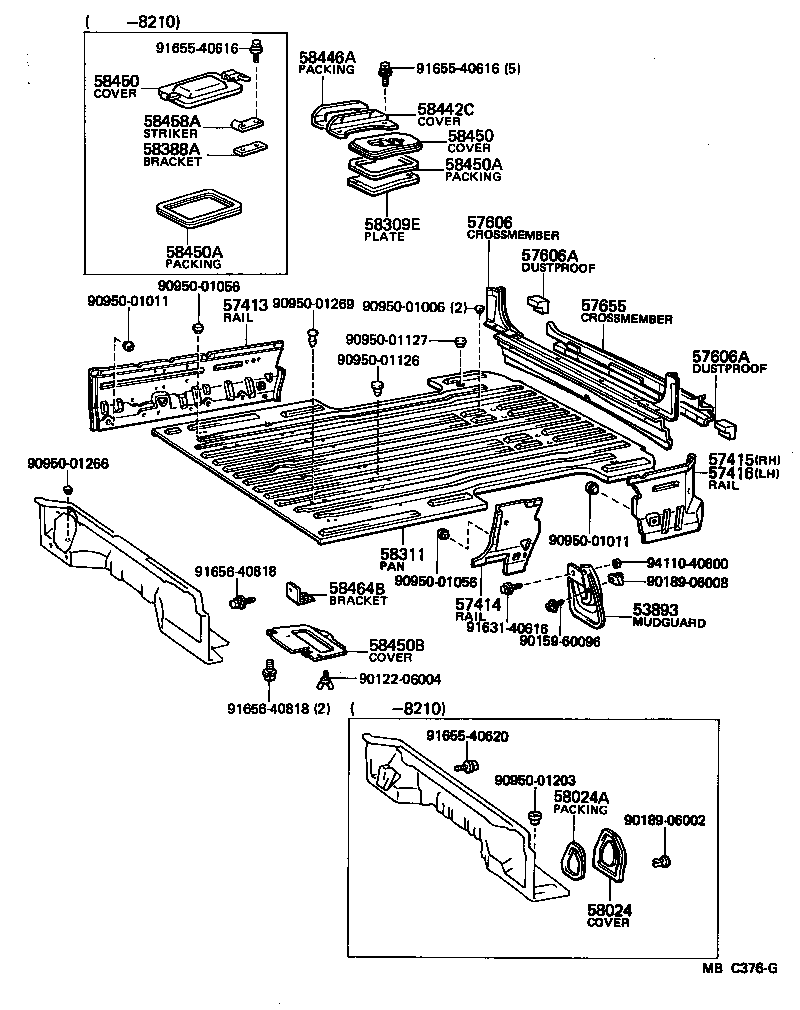

ILLUST NO. 1 OF 2(7910-8508)CM20,TM20,YM21..V,WG ; (8210-8508)YM20..ST

Click highlighted areas on diagram

diagram 53893 57413 57414 57415 57416 57606 57606A 57606A 57655 58024 58024A 58309E 58311 58388A 58442C 58446A 58450 58450 58450A 58450A 58450B 58458A 58464B 9012206004 9015960096 9018906002 9018906008 9095001006 9095001011 9095001011 9095001056 9095001056 9095001126 9095001127 9095001203 9095001266 9095001269 9163140616 9165540616 9165540616 9165540620 9165640818 9165640818 9411040600
Part # Description Qty Price
57413 - RAIL, FLOOR SIDE, CENTER RH
57405-95700

TM20

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57406-95701

CM20,TM20,YM21..WG

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57045-95700

CM20,TM20,YM21..WG..(CS7,DLX,FXV,GXL,S,STD,XL)

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57046-95700

CM20,TM20,YM21..WG..(CS7,DLX,FXV,GXL,S,STD,XL)

 1
57606 - CROSSMEMBER SUB-ASSY, REAR FLOOR REAR, INNER
57607-95702

CM20,KM2#,TM20,YM20,21..(V,WG)..ST

 1
57606A - DUST PROOF(FOR REAR CROSSMEMBER)
57614-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
57606A - DUST PROOF(FOR REAR CROSSMEMBER)
57614-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
57655 - MEMBER, REAR FLOOR CROSS, NO.5
57708-95702

CM20,KM2#,TM20,YM20,21..V,WG

 1
58311 - PAN, REAR FLOOR
58311-95710

TM20

W/RR HEATER

 1
58311-95709

TM20..DLX,STD,XL

 1
Common parts
90122-06004
90159-60096
90189-06002
90189-06008
90950-01006
90950-01011
90950-01056
90950-01126
90950-01127
90950-01203
90950-01266
90950-01269
91631-40616
91655-40616
91655-40620
91656-40818
94110-40600
