TM20G-JXZ (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Jan 1981
Engine 13TU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8001)

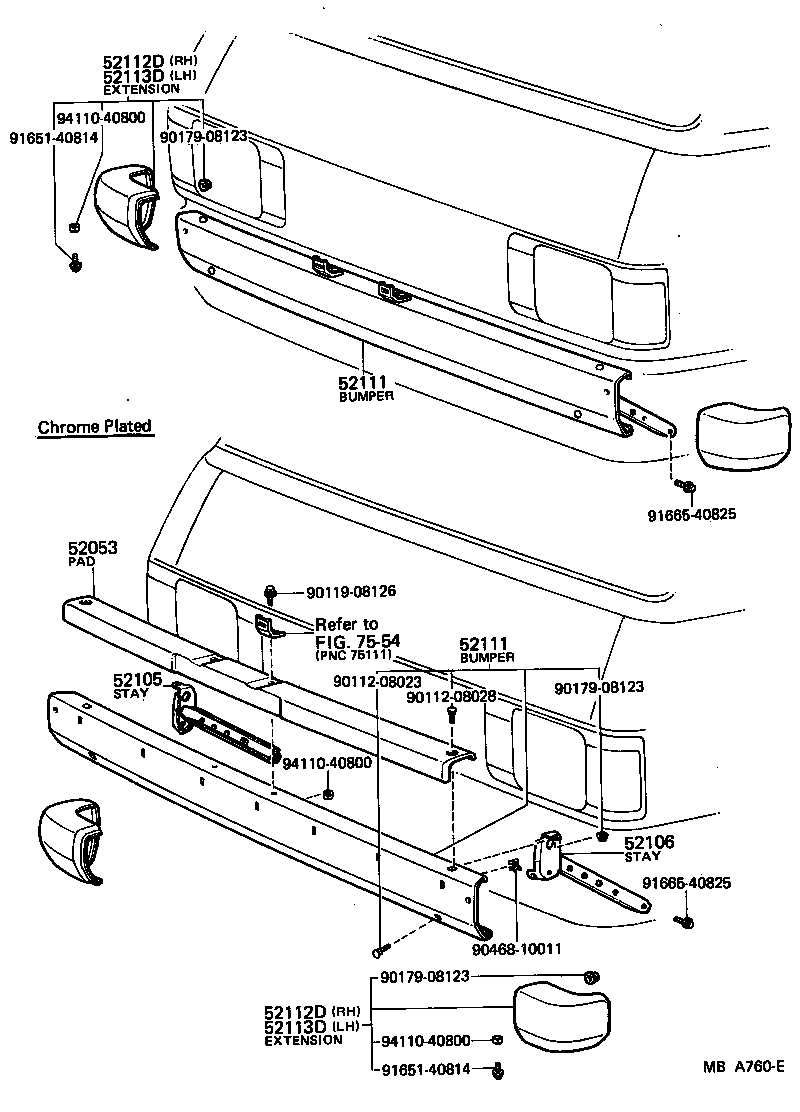

Click highlighted areas on diagram

diagram 52053 52105 52106 52111 52111 52112D 52112D 52113D 52113D 7554 9011208023 9011208028 9011908126 9017908123 9017908123 9017908123 9046810011 9165140814 9165140814 9166540825 9166540825 9411040800 9411040800 9411040800
Part # Description Qty Price
52053 - PAD SUB-ASSY, FRONT BUMPER
52421-95701

TM20..GXL,XL

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52201-95701

TM20..GXL,XL

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52202-95701

TM20..GXL,XL

 1
52111 - BUMPER ASSY, FRONT
52111-29405

TM20..GXL,XL

 1
52111 - BUMPER ASSY, FRONT
52111-29405

TM20..GXL,XL

 1
52112D - EXTENSION, FRONT BUMPER, RH
52011-29015

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
52112D - EXTENSION, FRONT BUMPER, RH
52011-29015

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
52113D - EXTENSION, FRONT BUMPER, LH
52012-29015

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
52113D - EXTENSION, FRONT BUMPER, LH
52012-29015

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
Common parts
90112-08023
90112-08028
90119-08126
90179-08123
90468-10011
91651-40814
91665-40825
94110-40800
Linked diagrams
7554
