TM20G-JX (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Jan 1981
Engine 13TU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

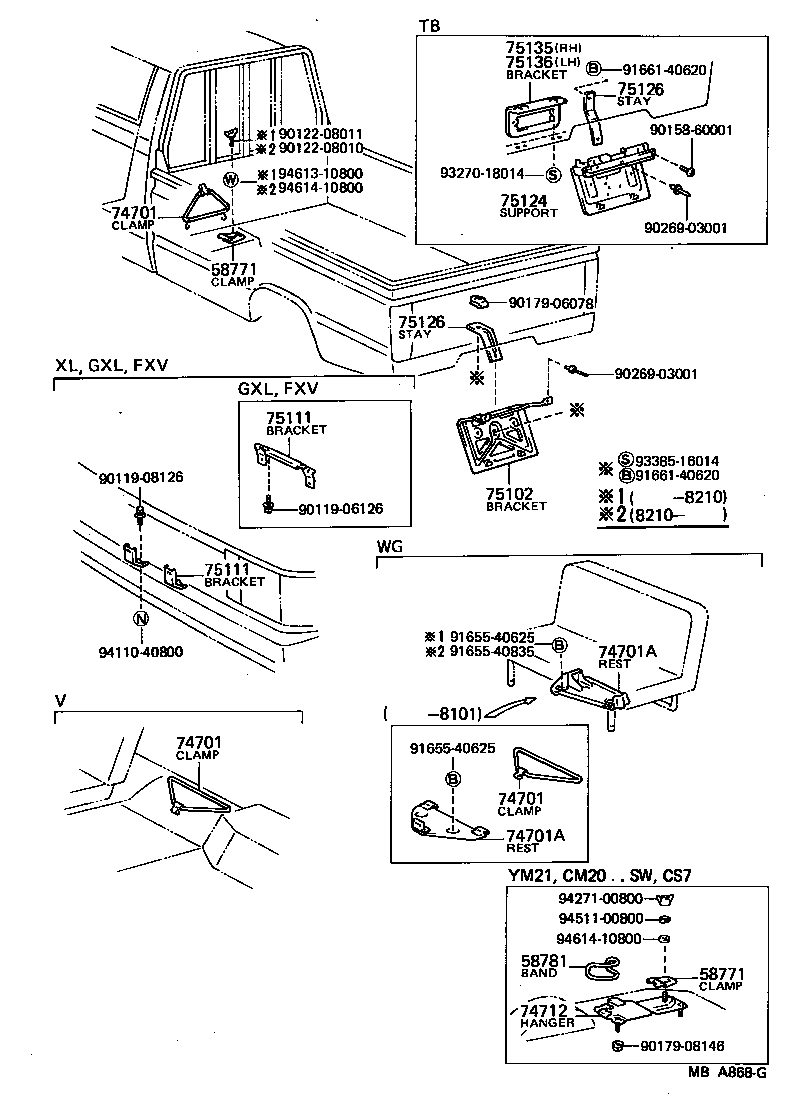

Click highlighted areas on diagram

diagram 58771 58771 58781 74701 74701 74701 74701A 74701A 74712 75102 75111 75111 75124 75126 75126 75135 75136 9011906126 9011908126 9012208010 9012208011 9015860001 9017906078 9017908146 9026903001 9026903001 9165540625 9165540625 9165540835 9166140620 9166140620 9327018014 9338516014 9411040800 9427100800 9451100800 9461310800 9461410800 9461410800
Part # Description Qty Price
74701 - CLAMP SUB-ASSY, TOOL BAG
74701-95601

KM20,TM20..HRF,SRF

 1
74701 - CLAMP SUB-ASSY, TOOL BAG
74701-95601

KM20,TM20..HRF,SRF

 1
74701 - CLAMP SUB-ASSY, TOOL BAG
74701-95601

KM20,TM20..HRF,SRF

 1
74701A - REST SUB-ASSY, TOOL BAG
75203-9570006

TM20

BROWN,BROWN

 1
74701A - REST SUB-ASSY, TOOL BAG
75203-9570006

TM20

BROWN,BROWN

 1
75111 - BRACKET, FRONT LICENSE PLATE
75111-95704

TM20..GXL,XL

 2
75111 - BRACKET, FRONT LICENSE PLATE
75111-95704

TM20..GXL,XL

 2
Common parts
90119-06126
90119-08126
90122-08010
90122-08011
90158-60001
90179-06078
90179-08146
90269-03001
91655-40625
91655-40835
91661-40620
93270-18014
93385-16014
94110-40800
94271-00800
94511-00800
94613-10800
94614-10800
