TM20G-JR (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 13TU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(7910-8210)

Click highlighted areas on diagram

diagram 8202 83100B 83100G 83101 83102 83103 83110 83128 83132 83134 83310 83410 83901 83910 8401 9015950060 9018906018 9354016012
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

CM2#,KM2#,TM20,YM2#

12V 3.4W,12V 3.4W

 16
83109-95700

KM20,TM20

W/GREEN CAP

 3
83100G - GLASS, COMBINATION METER
83138-95700

KM20,TM20

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

CM2#,KM2#,TM20,YM2#

12V 3.4W

 16
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95701

TM20;KM20..SUP

 1
83247-95701

TM20..4H

 1
83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2
83247-95020

KM20,TM20

 1
83110 - SPEEDOMETER ASSY
83110-95700

KM20,TM20

 1
83128 - KNOB, TRIP COUNTER
83128-95010

KM20,TM20

 1
83132 - CASE, COMBINATION METER
83132-95010

KM20,TM20

 1
83132-95722

KM20,TM20..DLX,STD,SUP,XL

 1
83134 - COVER, COMBINATION METER, NO.1
83134-95702

TM20..DLX,STD

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-95700

KM20,TM20..DLX,STD,SUP,XL

 1
83243-95700

KM20,TM20

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-95700

KM20,TM20

 1
83901 - CLOCK AND SETTING PARTS SET
83901-29015

KM20,TM20..(HRF,SRF)..(DLX,STD)

 1
83910 - CLOCK ASSY
83910-95700

KM20,TM20..V,WG

 1
Common parts
90159-50060
90189-06018
93540-16012
Linked diagrams
8202
8401

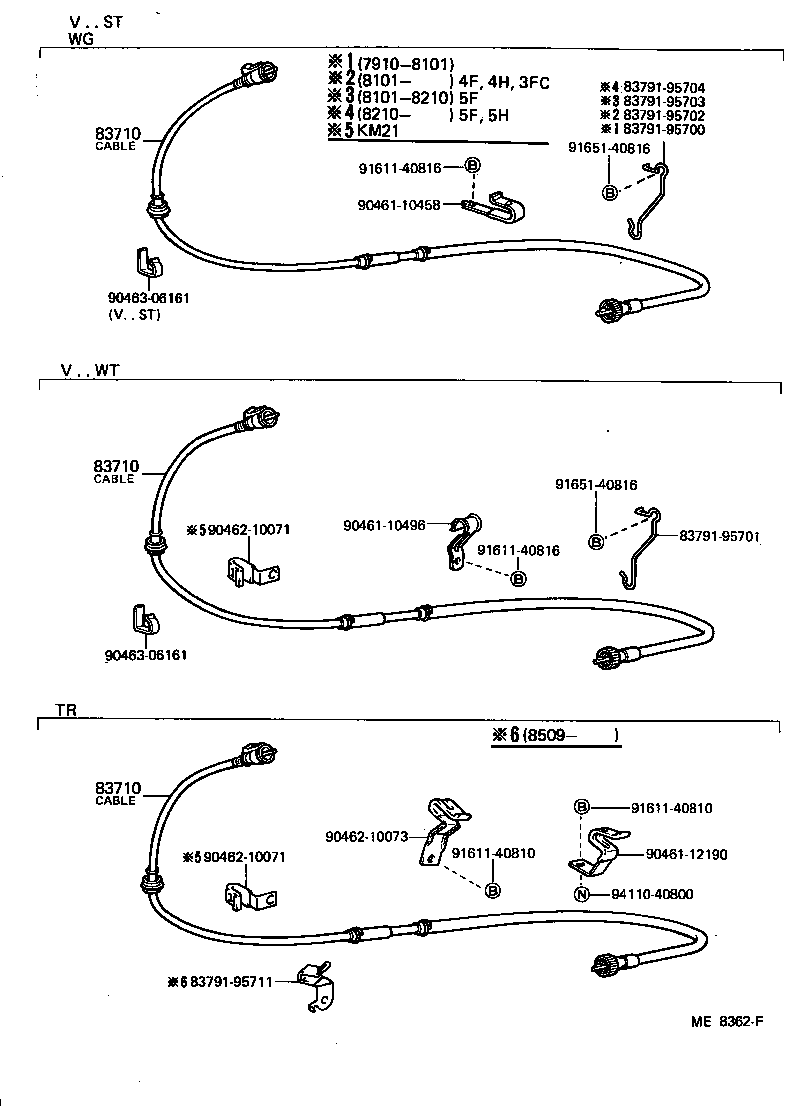

ILLUST NO. 3 OF 3(7910- )

Click highlighted areas on diagram

diagram 83710 83710 83710 8379195700 8379195701 8379195702 8379195703 8379195704 8379195711 9046110458 9046110496 9046112190 9046210071 9046210071 9046210073 9046306161 9046306161 9161140810 9161140810 9161140816 9161140816 9165140816 9165140816 9411040800
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95702

TM20..4F,4H

 1
83710-95702

TM20

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95702

TM20..4F,4H

 1
83710-95702

TM20

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95702

TM20..4F,4H

 1
83710-95702

TM20

 1
Common parts
83791-95700
83791-95701
83791-95702
83791-95703
83791-95704
83791-95711
90461-10458
90461-10496
90461-12190
90462-10071
90462-10073
90463-06161
91611-40810
91611-40816
91651-40816
94110-40800
