TM20G-JR (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 13TU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

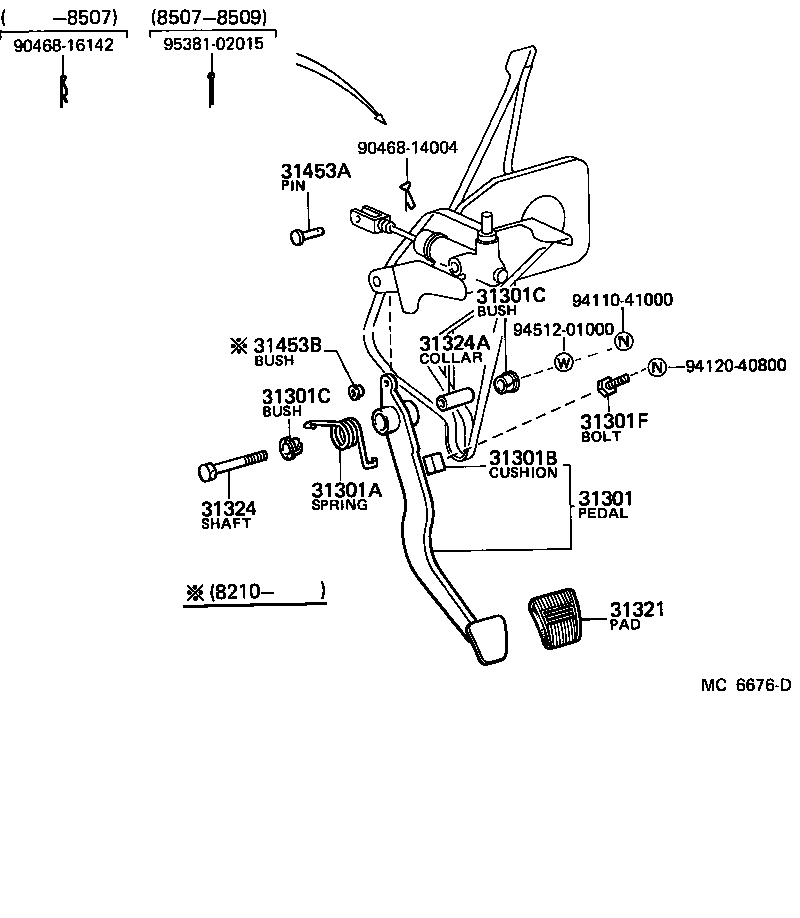

ILLUST NO. 1 OF 3(7910- )CM2#,TM20,YM2#..MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 9046814004 9046816142 9411041000 9412040800 9451201000 9538102015
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-27070

TM20

 1
31301-27071

TM20..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-32002

CM2#,TM20,YM2#..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-10020

CM2#,KM2#,TM20,YM2#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CM2#,KM2#,TM20,YM2#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CM2#,KM2#,TM20,YM2#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90109-08001

KM20,TM20

 1
90109-08052

KM20,TM20..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14010

CM2#,KM2#,TM20,YM2#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
91111-51060

CM2#,KM2#,TM20,YM2#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

CM2#,KM2#,TM20,YM2#..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08033

TM20..MTM

 1
Common parts
90468-14004
90468-16142
94110-41000
94120-40800
94512-01000
95381-02015

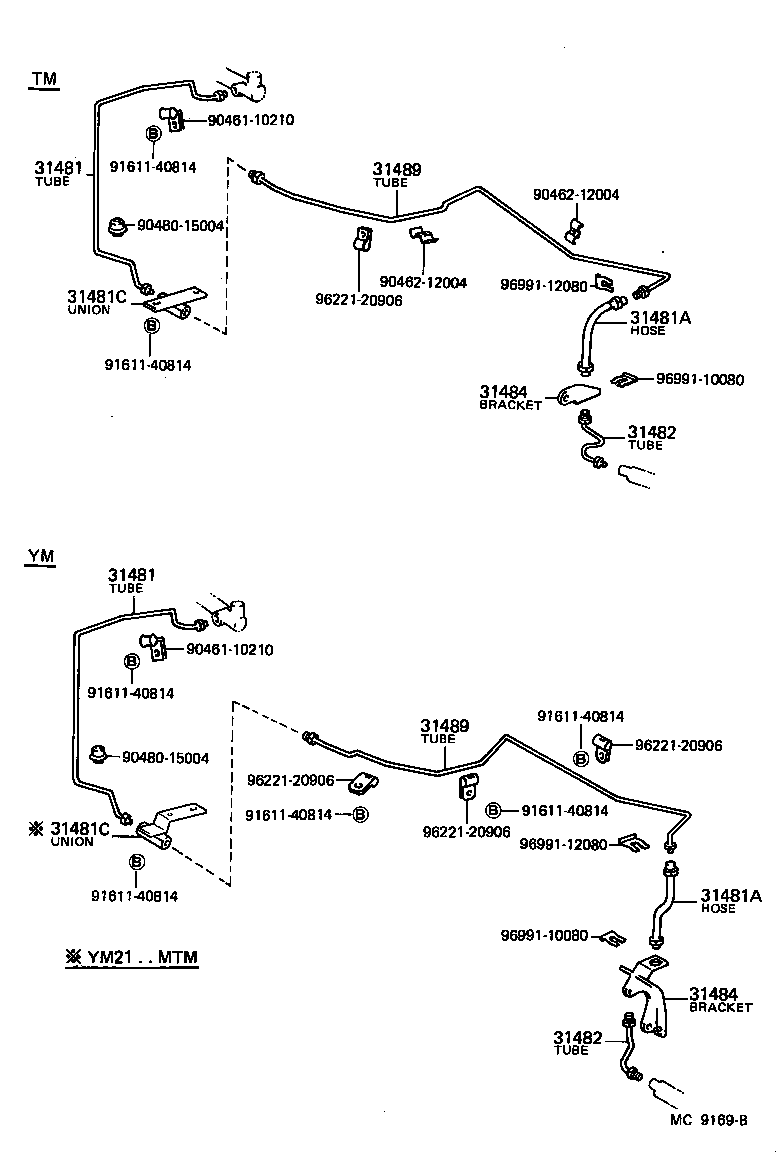

ILLUST NO. 2 OF 3(7910- )TM20,YM2#..MTM

Click highlighted areas on diagram

diagram 31481 31481 31481A 31481A 31481C 31481C 31482 31482 31484 31484 31489 31489 9046110210 9046110210 9046212004 9046212004 9048015004 9048015004 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9622120906 9622120906 9622120906 9622120906 9699110080 9699110080 9699112080 9699112080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-27010

TM20..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-27010

TM20..MTM

 1
31481A - HOSE, CLUTCH, NO.1
90947-02415

TM20..MTM

 1
31481A - HOSE, CLUTCH, NO.1
90947-02415

TM20..MTM

 1
31481C - UNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
90412-12009

TM20..MTM

 1
31481C - UNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
90412-12009

TM20..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-28010

TM20..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-28010

TM20..MTM

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-28010

TM20..4F,4H

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-28010

TM20..4F,4H

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-27010

TM20..MTM

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-27010

TM20..MTM

 1
Common parts
90461-10210
90462-12004
90480-15004
91611-40814
96221-20906
96991-10080
96991-12080
