TM20G-JN (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Jan 1981
Engine 13TU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8101)TM20 ; (7910-8210)KM20

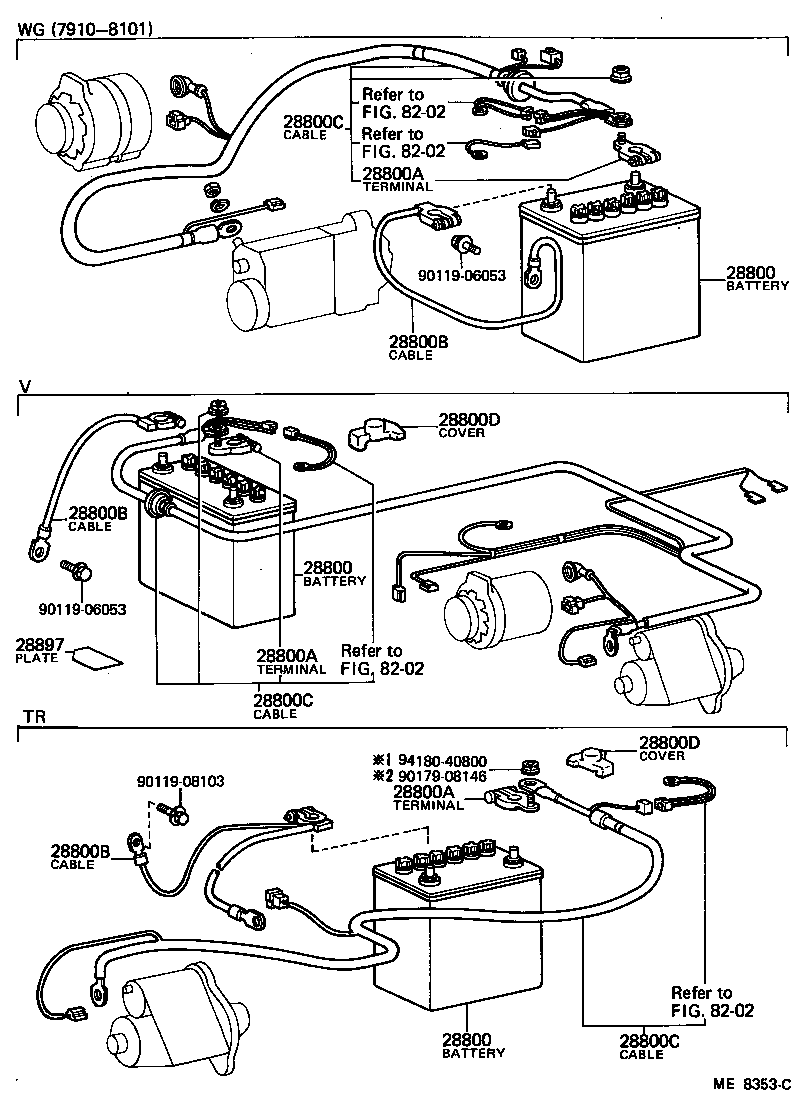

Click highlighted areas on diagram

diagram 28800 28800 28800 28800A 28800A 28800A 28800B 28800B 28800B 28800C 28800C 28800C 28800D 28800D 28897 8202 8202 8202 8202 9011906053 9011906053 9011908103 9017908146 9418040800
Part # Description Qty Price
28800 - BATTERY
28800-24030

13TU..TM20

34B19R,NS40ZA(12V 33AH-20HR)

 1
28800-33050

13TU,4KJ..KM20,TM20..HRF,SRF

46B24R,NS60(12V 45AH-20HR)

 1
28800 - BATTERY
28800-24030

13TU..TM20

34B19R,NS40ZA(12V 33AH-20HR)

 1
28800-33050

13TU,4KJ..KM20,TM20..HRF,SRF

46B24R,NS60(12V 45AH-20HR)

 1
28800 - BATTERY
28800-24030

13TU..TM20

34B19R,NS40ZA(12V 33AH-20HR)

 1
28800-33050

13TU,4KJ..KM20,TM20..HRF,SRF

46B24R,NS60(12V 45AH-20HR)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05004

13TU,4KJ,1YJ,2YU..KM2#,TM20,YM2#

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05004

13TU,4KJ,1YJ,2YU..KM2#,TM20,YM2#

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05004

13TU,4KJ,1YJ,2YU..KM2#,TM20,YM2#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02189

13TU..TM20

 1
28800B - CABLE, BATTERY TO GROUND
90982-02189

13TU..TM20

 1
28800B - CABLE, BATTERY TO GROUND
90982-02189

13TU..TM20

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01324

13TU..TM20

COLD SPEC

 1
90982-01341

13TU..TM20

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01324

13TU..TM20

COLD SPEC

 1
90982-01341

13TU..TM20

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01324

13TU..TM20

COLD SPEC

 1
90982-01341

13TU..TM20

 1
Common parts
90119-06053
90119-08103
90179-08146
94180-40800
Linked diagrams
8202
