TM20G-JN (1979)
Toyota Lite/Townace Truck
(7910-8210)TM20

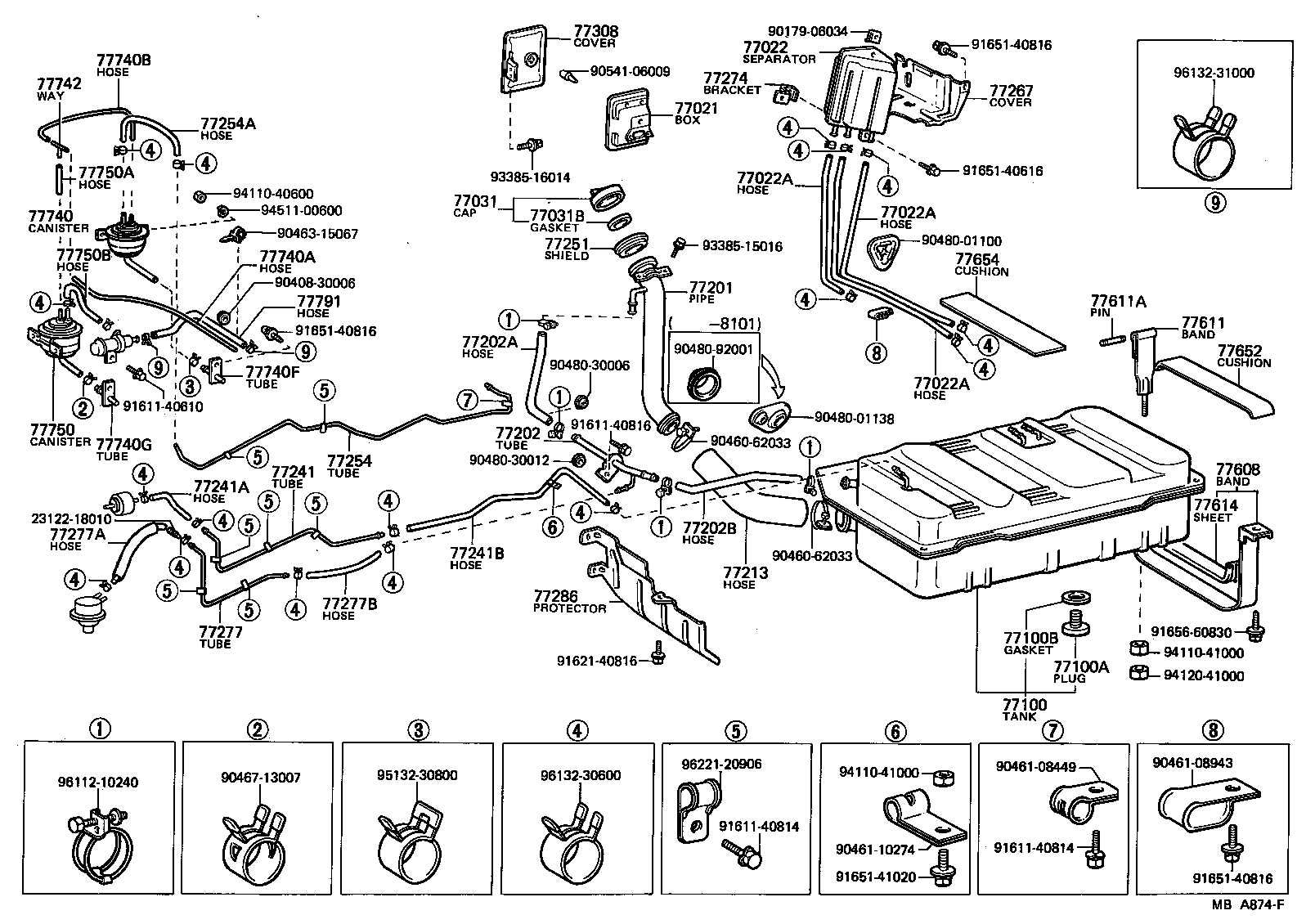

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77021 - BOX ASSY, FUEL TANK INLET | ||||
| 77301-95700 |
CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D |
1 | ||
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77271-28011 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77259-27070 |
KM20,TM20..V,WG L=800 |
2 | ||
| 77259-27080 |
KM2#,TM20..V,WG L=600 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77259-27070 |
KM20,TM20..V,WG L=800 |
2 | ||
| 77259-27080 |
KM2#,TM20..V,WG L=600 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77259-27070 |
KM20,TM20..V,WG L=800 |
2 | ||
| 77259-27080 |
KM2#,TM20..V,WG L=600 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-14070 |
KM20,TM20..V,WG |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-27050 |
KM20,TM20..(V,WG)..ST |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
KM20,TM20..V,WG |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
KM20,TM20..V,WG |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-27080 |
TM20;KM20..V4D..ST |
1 | ||
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77203-27060 |
TM20 |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 90445-24022 |
CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D..ST |
1 | ||
| 77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 77259-27050 |
TM20;KM20..V4D..ST |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77259-27020 |
CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D..ST |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-27060 |
TM20 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
TM20 *H,L=120 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06060 |
TM20 *H,L=460 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77251-10010 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-27040 |
TM20 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
KM20,TM20..V,WG *H,L=300 |
1 | ||
| 77267 - COVER, FUEL EVAPORATIVE TUBE | ||||
| 77267-95700 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
1 | ||
| 77274 - BRACKET, FUEL EVAPORATIVE SEPARATOR | ||||
| 77274-27010 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-27040 |
TM20 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-18010 |
TM20 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06020 |
TM20 *H,L=120 |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-27010 |
TM20;KM20..V4D..ST |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77310-95700 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 77608 - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-27010 |
KM20,TM20..(HRF,SRF)..ST |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-27020 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77614-36040 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-27020 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-27030 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-27050 |
TM20 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-39960 |
TM20 *H,L=330 |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 95411-39930 |
TM20 *H,L=50 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77263-27050 |
TM20 |
1 | ||
| 77740G - TUBE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 77263-27060 |
TM20 |
1 | ||
| 77742 - WAY, 3(FOR CANISTER) | ||||
| 90413-04005 |
TM20,YM2# |
1 | ||
| 77750 - CANISTER ASSY, CHARCOAL | ||||
| 77740-27040 |
TM20 |
1 | ||
| 77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER) | ||||
| 95411-39930 |
TM20 *H,L=140 |
1 | ||
| 77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER) | ||||
| 77759-14011 |
TM20 |
1 | ||
| 77791 - HOSE, OUTER VENT VALVE TO CARBURETOR | ||||
| 90445-17045 |
TM20 L=570 |
1 | ||
| Common parts | ||||
| 23122-18010 | ||||
| 90179-06034 | ||||
| 90408-30006 | ||||
| 90460-62033 | ||||
| 90461-08449 | ||||
| 90461-08943 | ||||
| 90461-10274 | ||||
| 90463-15067 | ||||
| 90467-13007 | ||||
| 90480-01100 | ||||
| 90480-01138 | ||||
| 90480-30006 | ||||
| 90480-30012 | ||||
| 90480-92001 | ||||
| 90541-06009 | ||||
| 91611-40610 | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
| 91621-40816 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-41020 | ||||
| 91656-60830 | ||||
| 93385-15016 | ||||
| 93385-16014 | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94511-00600 | ||||
| 95132-30800 | ||||
| 96112-10240 | ||||
| 96132-30600 | ||||
| 96132-31000 | ||||
| 96221-20906 | ||||
