TM20G-JN (1979)
Toyota Lite/Townace Truck

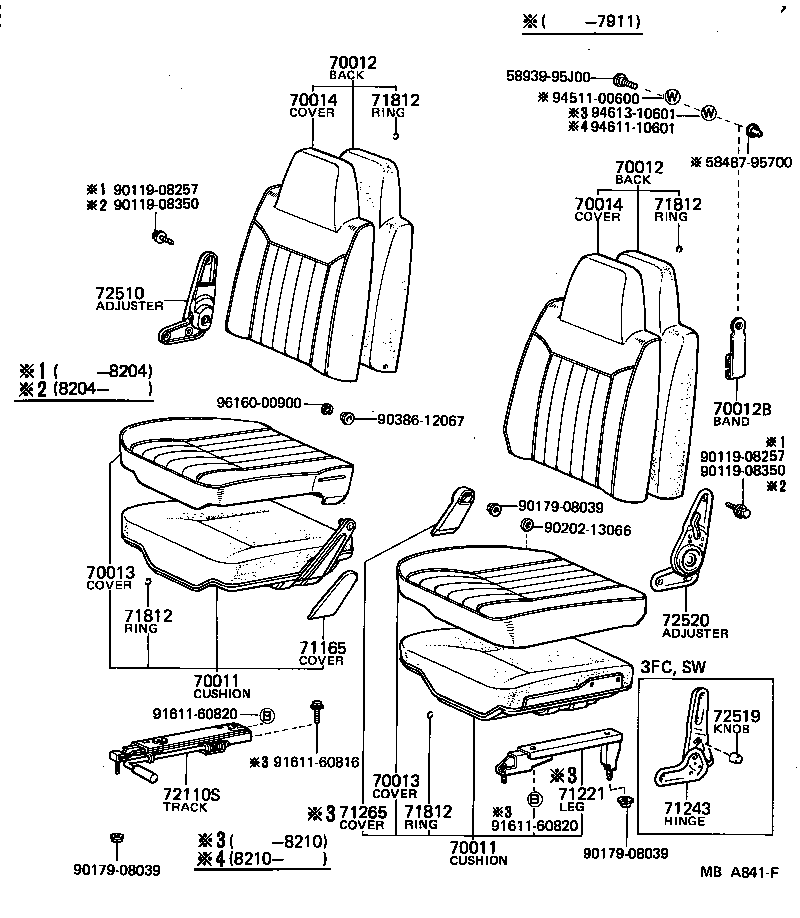

ILLUST NO. 1 OF 2(7910-8101)TM20 ; (8101-8201)08S ; (8201-8210)TM20..DLX,STD,XL ; (8210-8508)05S,08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71110-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 71210-95706 |
TM20..XL LH,VL PRINT |
1 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71110-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 71210-95706 |
TM20..XL LH,VL PRINT |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71250-95710 |
TM20..XL LH,VL PRINT |
1 | ||
| 71150-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71250-95710 |
TM20..XL LH,VL PRINT |
1 | ||
| 71150-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-9570306 |
TM20 BROWN,BROWN |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71108-95706 |
TM20..XL RH,VL PRINT |
1 | ||
| 71208-95709 |
TM20..XL LH,VL PRINT |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71108-95706 |
TM20..XL RH,VL PRINT |
1 | ||
| 71208-95709 |
TM20..XL LH,VL PRINT |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71209-95706 |
TM20..XL LH,VL PRINT |
1 | ||
| 71109-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71209-95706 |
TM20..XL LH,VL PRINT |
1 | ||
| 71109-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 71165 - COVER, FRONT RH SEAT HINGE | ||||
| 71165-9570006 |
KM20,TM20 BROWN,BROWN |
1 | ||
| 71221 - LEG, FRONT SEAT | ||||
| 71221-95702 |
TM20 |
1 | ||
| 71265 - COVER, FRONT LH SEAT HINGE | ||||
| 71265-9570106 |
TM20 BROWN,BROWN |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72710-95701 |
TM20 |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-95700 |
TM20 |
1 | ||
| Common parts | ||||
| 58487-95700 | ||||
| 58939-95J00 | ||||
| 90119-08257 | ||||
| 90119-08350 | ||||
| 90179-08039 | ||||
| 90202-13066 | ||||
| 90386-12067 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 94511-00600 | ||||
| 94611-10601 | ||||
| 94613-10601 | ||||
| 96160-00900 | ||||

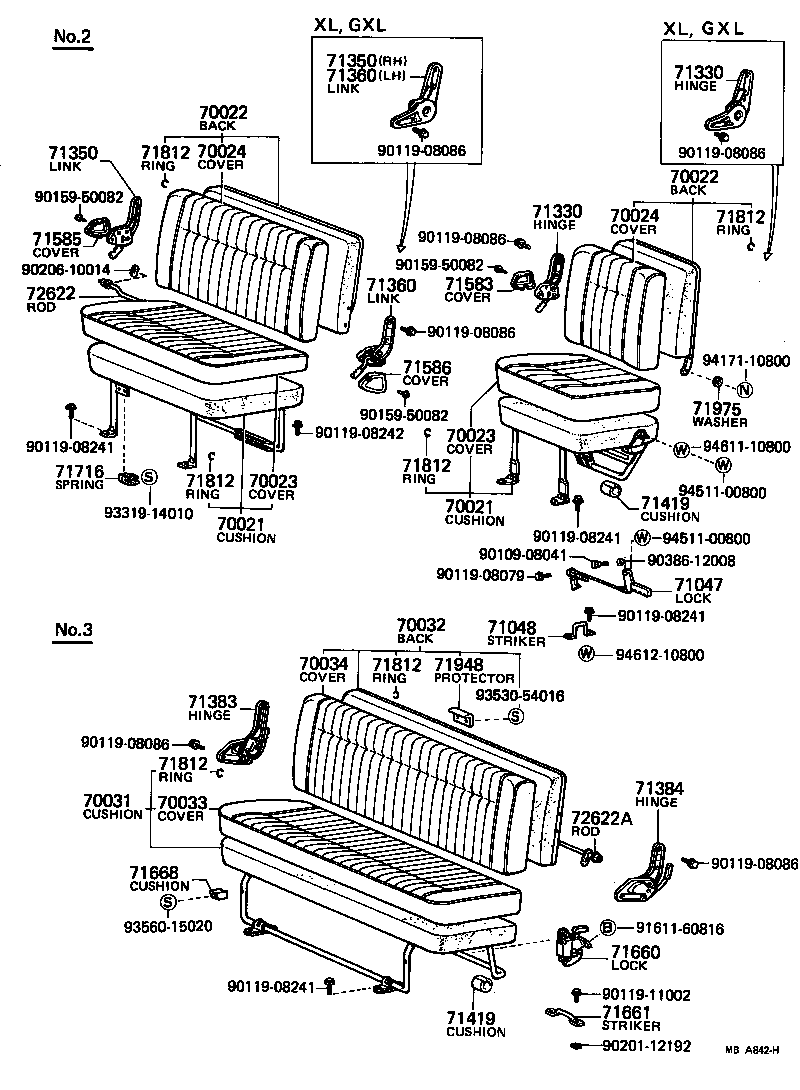

ILLUST NO. 2 OF 2(7910-8101)TM20 ; (8101-8210)TM20..4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71510-95707 |
TM20..XL RH,VL PRINT |
1 | ||
| 71410-95718 |
TM20..XL LH,VL PRINT |
1 | ||
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71510-95707 |
TM20..XL RH,VL PRINT |
1 | ||
| 71410-95718 |
TM20..XL LH,VL PRINT |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 71450-95704 |
TM20..XL LH,VL PRINT |
1 | ||
| 71550-95704 |
TM20..XL RH,VL PRINT |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 71450-95704 |
TM20..XL LH,VL PRINT |
1 | ||
| 71550-95704 |
TM20..XL RH,VL PRINT |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71508-95703 |
TM20..XL RH,VL PRINT |
1 | ||
| 71408-95704 |
TM20..XL LH,VL PRINT |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71508-95703 |
TM20..XL RH,VL PRINT |
1 | ||
| 71408-95704 |
TM20..XL LH,VL PRINT |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71409-95703 |
TM20..XL LH,VL PRINT |
1 | ||
| 71509-95703 |
TM20..XL RH,VL PRINT |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71409-95703 |
TM20..XL LH,VL PRINT |
1 | ||
| 71509-95703 |
TM20..XL RH,VL PRINT |
1 | ||
| 70031 - CUSHION ASSY, NO.3 SEAT | ||||
| 71610-95703 |
TM20..XL VL PRINT |
1 | ||
| 70032 - BACK ASSY, NO.3 SEAT | ||||
| 71650-95703 |
TM20..XL VL PRINT |
1 | ||
| 70033 - COVER ASSY, NO.3 SEAT CUSHION | ||||
| 71608-95703 |
TM20..XL VL PRINT |
1 | ||
| 70034 - COVER ASSY, NO.3 SEAT BACK | ||||
| 71609-95703 |
TM20..XL VL PRINT |
1 | ||
| 71047 - LOCK SUB-ASSY, REAR SEAT LEG | ||||
| 71460-95714 |
TM20 |
1 | ||
| 71048 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 71464-95700 |
TM20..08S |
1 | ||
| 71330 - HINGE ASSY, REAR SEAT CUSHION | ||||
| 72540-95700 |
TM20..GXL,XL |
1 | ||
| 71330 - HINGE ASSY, REAR SEAT CUSHION | ||||
| 72540-95700 |
TM20..GXL,XL |
1 | ||
| 71350 - LINK ASSY, REAR SEAT BACK CUSHION, RH | ||||
| 72570-9570006 |
TM20..GXL,XL BROWN,BROWN |
1 | ||
| 71350 - LINK ASSY, REAR SEAT BACK CUSHION, RH | ||||
| 72570-9570006 |
TM20..GXL,XL BROWN,BROWN |
1 | ||
| 71360 - LINK ASSY, REAR SEAT BACK CUSHION, LH | ||||
| 72530-9570006 |
TM20..GXL,XL BROWN,BROWN |
1 | ||
| 71360 - LINK ASSY, REAR SEAT BACK CUSHION, LH | ||||
| 72530-9570006 |
TM20..GXL,XL BROWN,BROWN |
1 | ||
| 71383 - HINGE, REAR SEAT BACK STOP, NO.3 | ||||
| 71680-95700 |
TM20 |
1 | ||
| 71384 - HINGE, REAR SEAT BACK STOP, NO.4 | ||||
| 71690-95700 |
TM20 |
1 | ||
| 71419 - CUSHION (FOR REAR SEAT LEG) | ||||
| 71419-95A01 |
TM20 |
4 | ||
| 71419 - CUSHION (FOR REAR SEAT LEG) | ||||
| 71419-95A01 |
TM20 |
4 | ||
| 71660 - LOCK ASSY, REAR NO.3 SEAT | ||||
| 71660-95700 |
TM20 |
2 | ||
| 71661 - STRIKER, REAR NO.3 SEAT LOCK | ||||
| 71664-95700 |
TM20 |
2 | ||
| 71668 - CUSHION, REAR NO.3 SEAT | ||||
| 71668-95700 |
CM20,TM20,YM21..WG..(DLX,FXV,GXL,MTP,S,STD,XL) |
2 | ||
| 71716 - SPRING, JACK HANDLE SUPPORT | ||||
| 74716-95A01 |
TM20 |
2 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71948 - PROTECTOR, PASSENGER SEAT BACK | ||||
| 71498-9570006 |
KM20,TM20..06S,08S BROWN,BROWN |
3 | ||
| 71975 - WASHER, REAR NO.1 SEAT | ||||
| 71975-95A01 |
TM20..08S |
1 | ||
| 72622 - ROD, REAR SEAT BACK STOPPER CONNECTING | ||||
| 71507-95701 |
TM20..GXL,XL |
1 | ||
| 72622A - ROD, REAR SEAT BACK STOPPER CONNECTING, NO.2 | ||||
| 71670-95700 |
TM20 |
1 | ||
| Common parts | ||||
| 90109-08041 | ||||
| 90119-08079 | ||||
| 90119-08086 | ||||
| 90119-08241 | ||||
| 90119-08242 | ||||
| 90119-11002 | ||||
| 90159-50082 | ||||
| 90201-12192 | ||||
| 90206-10014 | ||||
| 90386-12008 | ||||
| 91611-60816 | ||||
| 93319-14010 | ||||
| 93530-54016 | ||||
| 93560-15020 | ||||
| 94171-10800 | ||||
| 94511-00800 | ||||
| 94611-10800 | ||||
| 94612-10800 | ||||
