TM20G-JN (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Jan 1981
Engine 13TU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)TM20

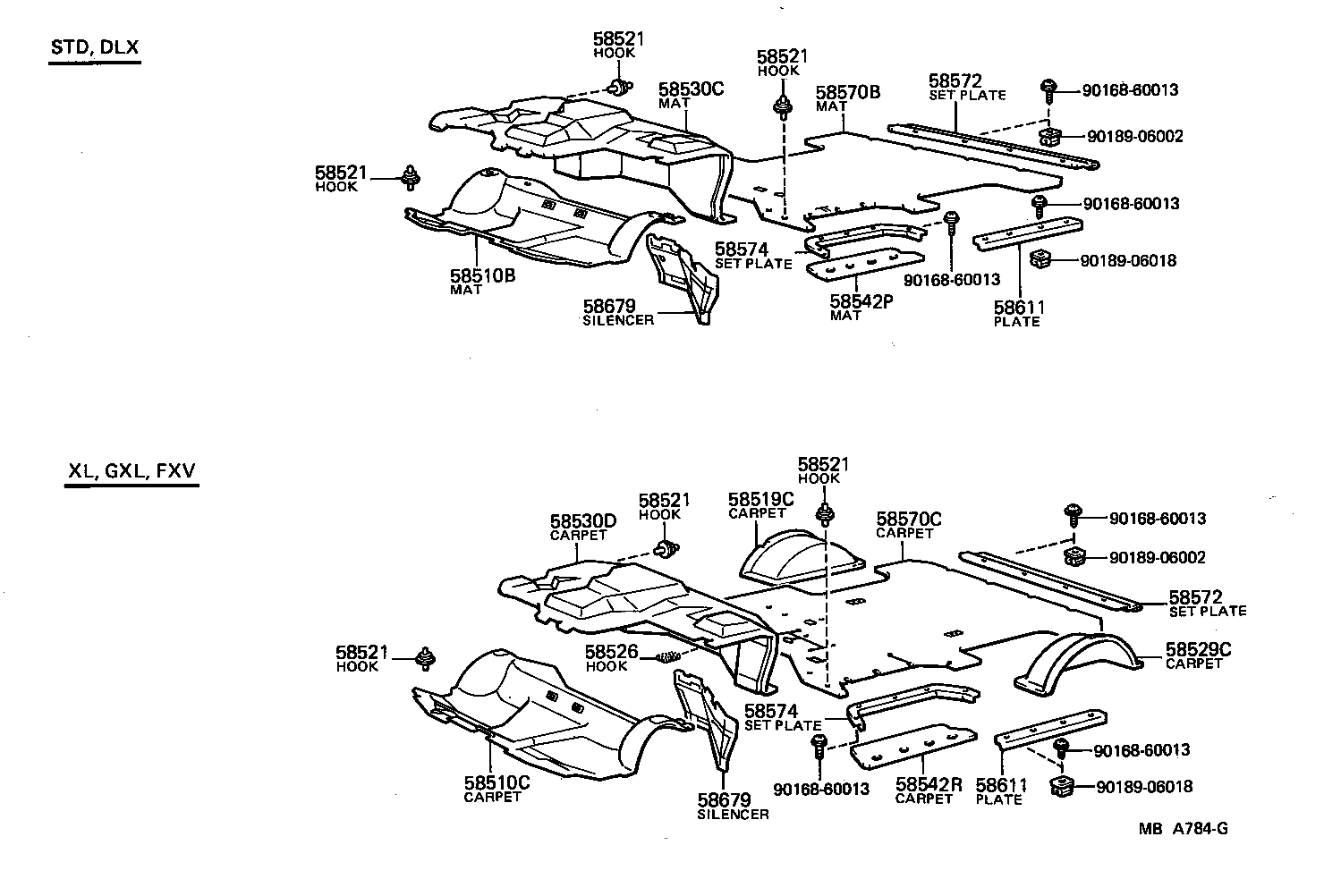

Click highlighted areas on diagram

diagram 58510B 58510C 58519C 58521 58521 58521 58521 58521 58521 58526 58529C 58530C 58530D 58542P 58542R 58570B 58570C 58572 58572 58574 58574 58611 58611 58679 58679 9016860013 9016860013 9016860013 9016860013 9016860013 9016860013 9018906002 9018906002 9018906018 9018906018
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58501-95710

TM20..4H..XL

 1
58519C - CARPET, REAR WHEEL HOUSE, RH
65607-95700

TM20..XL

 1
58524-95701

TM20..XL

 1
58521 - HOOK, MALE, NO.1
90530-06001

CM2#,KM2#,TM20,YM25

 1
58521 - HOOK, MALE, NO.1
90530-06001

CM2#,KM2#,TM20,YM25

 1
58521 - HOOK, MALE, NO.1
90530-06001

CM2#,KM2#,TM20,YM25

 1
58521 - HOOK, MALE, NO.1
90530-06001

CM2#,KM2#,TM20,YM25

 1
58521 - HOOK, MALE, NO.1
90530-06001

CM2#,KM2#,TM20,YM25

 1
58521 - HOOK, MALE, NO.1
90530-06001

CM2#,KM2#,TM20,YM25

 1
58529C - CARPET, REAR WHEEL HOUSE, LH
65607-95700

TM20..XL

 1
58524-95701

TM20..XL

 1
58530D - CARPET, FRONT FLOOR, REAR
58505-95705

TM20..XL

 1
58505-95712

TM20..XL

W/COOLER

 1
58542R - CARPET, STEP, LH
58509-95700

TM20..XL

 1
58570C - CARPET ASSY, REAR FLOOR
58503-95724

TM20..XL

 1
58503-95727

TM20..XL

W/RR HEATER

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58633-95700

KM20,TM20..(HRF,SRF)..(DLX,STD,SUP,XL)..ST

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58633-95700

KM20,TM20..(HRF,SRF)..(DLX,STD,SUP,XL)..ST

 1
58574 - SET PLATE, REAR FLOOR MAT SIDE, FRONT LH
58631-95701

CM20,TM20,YM21..WG..(CS7,DLX,MTP,S,STD,XL)

 1
58574 - SET PLATE, REAR FLOOR MAT SIDE, FRONT LH
58631-95701

CM20,TM20,YM21..WG..(CS7,DLX,MTP,S,STD,XL)

 1
58611 - PLATE, REAR FLOOR MAT SET, SIDE
67917-95700

CM20,TM20,YM21..WG..(CS7,DLX,MTP,S,STD,SW,XL)

 1
58611 - PLATE, REAR FLOOR MAT SET, SIDE
67917-95700

CM20,TM20,YM21..WG..(CS7,DLX,MTP,S,STD,SW,XL)

 1
58679 - SILENCER, HEADER PANEL
58469-95705

TM20

 1
58679 - SILENCER, HEADER PANEL
58469-95705

TM20

 1
Common parts
90168-60013
90189-06002
90189-06018
