TM20G-JN (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Jan 1981
Engine 13TU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)13TU

Click highlighted areas on diagram

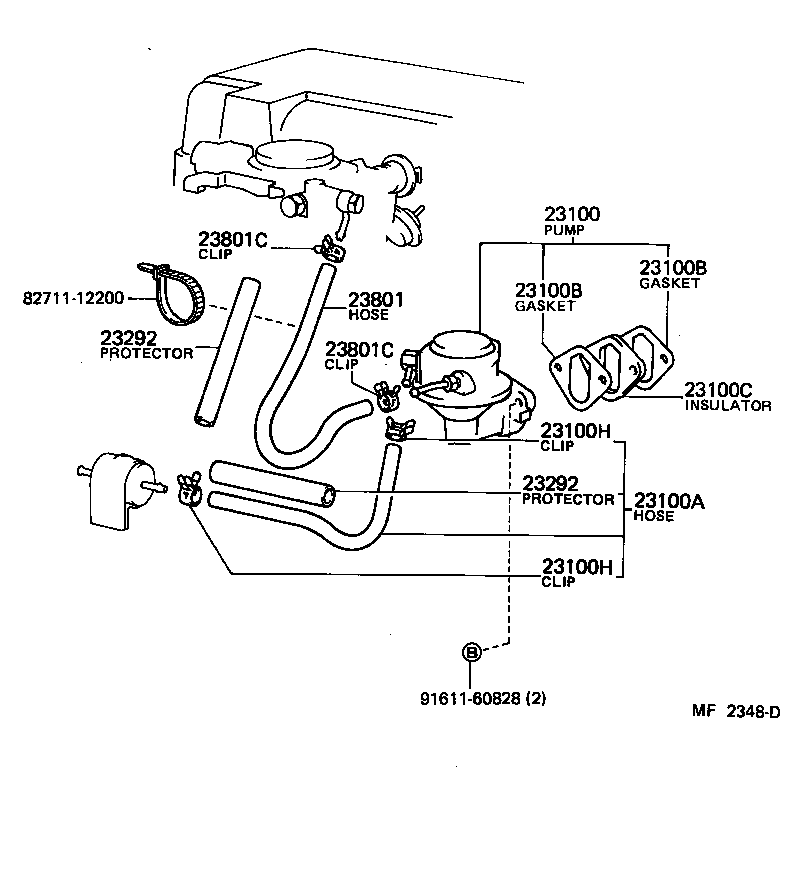

diagram 23100 23100A 23100B 23100B 23100C 23100H 23100H 23292 23292 23801 23801C 23801C 8271112200 9161160828
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-19115

13TU..TM20

 1
23100A - HOSE, FUEL
23271-18010

13TU..TM20

 1
23100B - GASKET, FUEL PUMP
90923-05005

13TU..TM20

 2
23100B - GASKET, FUEL PUMP
90923-05005

13TU..TM20

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

13TU..TM20

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

13TU..TM20

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

13TU..TM20

 2
23292 - PROTECTOR, FUEL HOSE
23292-18010

13TU..TM20

 2
23292 - PROTECTOR, FUEL HOSE
23292-18010

13TU..TM20

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06030

13TU..TM20

*H,L=300

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

13TU..TM20

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

13TU..TM20

 2
Common parts
82711-12200
91611-60828
