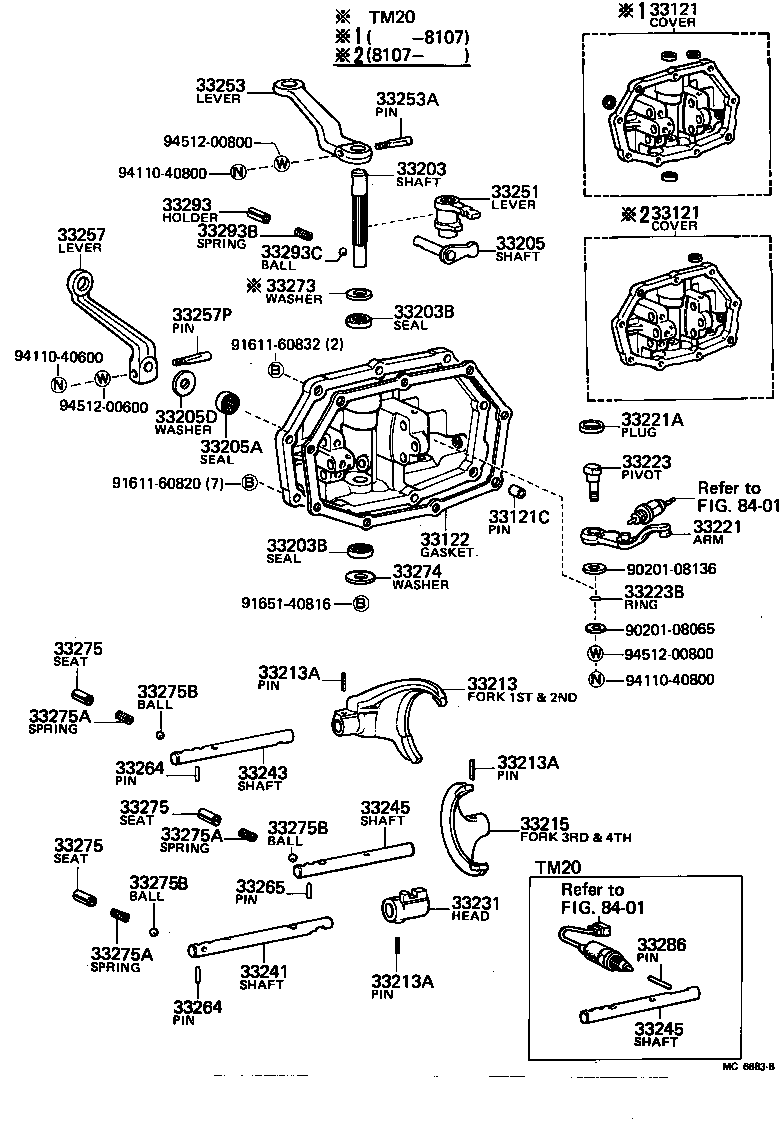

Toyota Lite/townace truck TM20G GEAR SHIFT FORK & LEVER SHAFT (MTM)

Part #	Description	Period	Qty
33121 - COVER, MANUAL TRANSMISSION CASE
33121-26903	TM20..4F,4H	10/1979 - 07/1981	1
33121 - COVER, MANUAL TRANSMISSION CASE
33121-26903	TM20..4F,4H	10/1979 - 07/1981	1
33121C - PIN(FOR TRANSMISSION CASE COVER)
90253-11001	KM2#,TM20,YM25..4F,4H 長さ=11,外径=11	10/1979 - 09/1986	2
33122 - GASKET, MANUAL TRANSMISSION CASE COVER
33122-30020	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33261-26021	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT)
90311-13050	KM2#,TM20,YM25..4F,4H LWR	10/1979 - 09/1986	1
90312-15003	KM2#,TM20,YM25..4F,4H UPR	10/1979 - 09/1986	1
33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT)
90311-13050	KM2#,TM20,YM25..4F,4H LWR	10/1979 - 09/1986	1
90312-15003	KM2#,TM20,YM25..4F,4H UPR	10/1979 - 09/1986	1
33205 - SHAFT SUB-ASSY, SELECT LEVER
33262-28010	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
90313-13001	CM2#,KM2#,TM20,YM2#..MTM	10/1979 - 09/1986	1
33205D - WASHER(FOR OUTER LEVER OIL SETTING)
94612-11300	CM2#,KM2#,TM20,YM2#..MTM	10/1979 - 09/1986	1
33213 - FORK, 1ST & 2ND SHIFT
33212-26020	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001	KM2#,TM20,YM25..4F,4H L=22	10/1979 - 09/1986	3
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001	KM2#,TM20,YM25..4F,4H L=22	10/1979 - 09/1986	3
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001	KM2#,TM20,YM25..4F,4H L=22	10/1979 - 09/1986	3
33215 - FORK, 3RD & 4TH SHIFT
33213-26020	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33221 - ARM, REVERSE SHIFT
33221-30010	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33221A - PLUG, TIGHT(FOR REVERSE SHIFT ARM)
96411-12500	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33223 - PIVOT, SHIFT ARM
33223-30011	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33223B - RING, O(FOR SHIFT ARM PIVOT)
90301-08001	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33231 - HEAD, REVERSE SHIFT
33231-26010	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33241 - SHAFT, REVERSE SHIFT FORK
33241-26010	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33243 - SHAFT, 1ST & 2ND SHIFT FORK
33242-26010	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33245 - SHAFT, 3RD & 4TH SHIFT FORK
33243-26020	TM20..4F,4H	10/1979 - 10/1982	1
33245 - SHAFT, 3RD & 4TH SHIFT FORK
33243-26020	TM20..4F,4H	10/1979 - 10/1982	1
33251 - LEVER, SHIFT & SELECT
33251-26010	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33253 - LEVER, SHIFT OUTER, NO.1
33253-27020	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33281-30010	KM2#,TM20,YM25..4F,4H	10/1979 - 11/1984	1
33257 - LEVER, SELECT OUTER
33257-27020	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33257P - PIN, SELECT OUTER LEVER LOCK
33282-35010	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-30010	KM2#,TM20,YM25..4F,4H 外径=6,長さ=16	10/1979 - 09/1986	2
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-30010	KM2#,TM20,YM25..4F,4H 外径=6,長さ=16	10/1979 - 09/1986	2
33265 - PIN, SHIFT INTER LOCK, NO.2
33265-30010	KM2#,TM20,YM25..4F,4H 長さ=28.8,外径=6.0	10/1979 - 09/1986	1
33273 - WASHER, SHIFT LEVER SHAFT HOUSING, NO.1
90201-15137	TM20,YM25..4F,4H	10/1979 - 09/1986	1
33274 - WASHER, SHIFT LEVER SHAFT HOUSING, NO.2
94612-11300	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-10010	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	3
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-10010	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	3
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-10010	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14638	KM2#,TM20,YM25..4F,4H 長さ=15.2	10/1979 - 09/1986	3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14638	KM2#,TM20,YM25..4F,4H 長さ=15.2	10/1979 - 09/1986	3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14638	KM2#,TM20,YM25..4F,4H 長さ=15.2	10/1979 - 09/1986	3
33275B - BALL, SHAFT DETENT
90360-10003	CM2#,KM2#,TM20,YM2#..MTM	10/1979 - 09/1986	4
33275B - BALL, SHAFT DETENT
90360-10003	CM2#,KM2#,TM20,YM2#..MTM	10/1979 - 09/1986	4
33275B - BALL, SHAFT DETENT
90360-10003	CM2#,KM2#,TM20,YM2#..MTM	10/1979 - 09/1986	4
33286 - PIN, SWITCH PRESSURE
33286-26010	TM20..4F,4H	10/1979 - 10/1982	1
33293 - HOLDER, REVERSE RESTRICT BALL
33276-10010	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33293B - SPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)
90501-16052	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33293C - BALL (FOR REVERSE RESTRICT)
90360-10003	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
Common parts
90201-08065
90201-08136
91611-60820
91611-60832
91651-40816
94110-40600
94110-40800
94512-00600
94512-00800
Linked diagrams
8401

TM20G-JDZ (1979)

(7910- )4H
