TM20G-JD (1979)
Toyota Lite/Townace Truck
Production
Oct 1979
-
Oct 1982
Engine
13TU
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

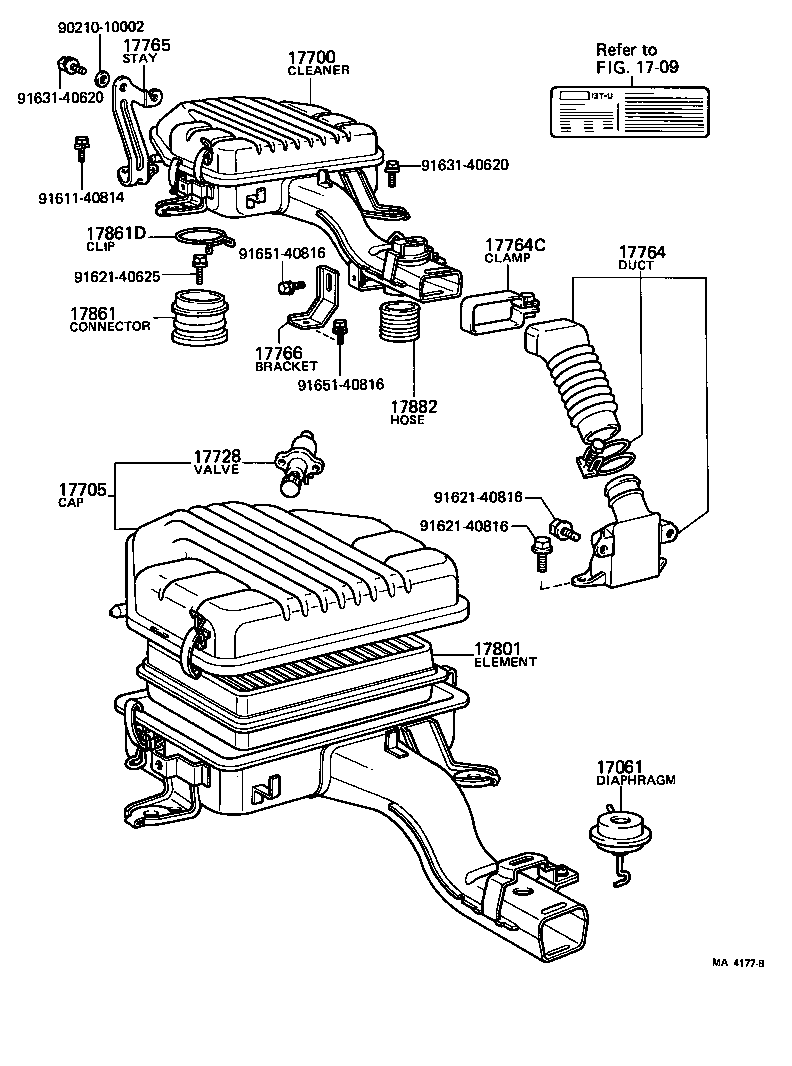

(7910-8101)13TU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-26010 |
13TU..TM20 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-18011 |
13TU..TM20 |
1 | ||
| 17700-18040 |
13TU..TM20 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-18012 |
13TU..TM20 |
1 | ||
| 17705-18011 |
13TU..TM20 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-18011 |
13TU..TM20 |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 17760-95700 |
13TU..TM20 |
1 | ||
| 17764C - CLAMP, HOSE(FOR AIR CLEANER DUCT) | ||||
| 90460-01006 |
13TU..TM20 AIR CLEANER SIDE |
1 | ||
| 17765 - STAY, AIR CLEANER, NO.1 | ||||
| 17765-18010 |
13TU..TM20..MTM |
1 | ||
| 17766 - STAY, AIR CLEANER, NO.2 | ||||
| 17766-18010 |
13TU..TM20 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41082 |
13TU..TM20 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-26021 |
13TU..TM20 |
1 | ||
| 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) | ||||
| 90467-70001 |
13TU..TM20 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-18010 |
13TU..TM20 |
1 | ||
| Common parts | ||||
| 90210-10002 | ||||
| 91611-40814 | ||||
| 91621-40625 | ||||
| 91621-40816 | ||||
| 91631-40620 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(8101-8210)13TU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-26010 |
13TU..TM20 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-18011 |
13TU..TM20 |
1 | ||
| 17700-18040 |
13TU..TM20 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-18012 |
13TU..TM20 |
1 | ||
| 17705-18011 |
13TU..TM20 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-18011 |
13TU..TM20 |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 17760-95700 |
13TU..TM20 |
1 | ||
| 17764C - CLAMP, HOSE(FOR AIR CLEANER DUCT) | ||||
| 90460-01006 |
13TU..TM20 AIR CLEANER SIDE |
1 | ||
| 17765 - STAY, AIR CLEANER, NO.1 | ||||
| 17765-18010 |
13TU..TM20..MTM |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41082 |
13TU..TM20 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-26021 |
13TU..TM20 |
1 | ||
| 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) | ||||
| 90467-70001 |
13TU..TM20 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-18010 |
13TU..TM20 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-18010 |
13TU..TM20 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-01021 |
13TU..TM20 |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-01021 |
13TU..TM20 |
2 | ||
| 17905 - VALVE SUB-ASSY, AIR CLEANER INLET | ||||
| 17905-18010 |
13TU..TM20 |
1 | ||
| Common parts | ||||
| 90201-10002 | ||||
| 91611-40814 | ||||
| 91621-40625 | ||||
| 91621-40816 | ||||
| 91631-40620 | ||||
| 91651-40816 | ||||
