TM20G-JD (1979)
Toyota Lite/Townace Truck
(7910-8210)13TU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-25020 |
13TU..TM20 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
13TU..TM20 |
2 | ||
| 90467-20004 |
13TU..TM20 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
13TU..TM20 |
2 | ||
| 90467-20004 |
13TU..TM20 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-18010 |
13TU..TM20 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03034 |
13TU..TM20 *WAX 82-95,*(F) |
1 | ||
| 90916-03036 |
13TU..TM20 COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03037 |
13TU..TM20 *WAX 82-95,KUZEH |
1 | ||
| 90916-03040 |
13TU..TM20 COLD SPEC,*WAX 88-100,KUZEH |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-26051 |
13TU..TM20 |
1 | ||
| 16303-26052 |
13TU..TM20 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38011 |
13TU..TM20 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-26011 |
13TU..TM20 |
1 | ||
| 16361 - FAN | ||||
| 16361-26050 |
13TU..TM20 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-25010 |
13TU..TM20 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-18020 |
13TU..TM20..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
13TU..TM20 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
13TU..TM20 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
13TU..TM20 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-95700 |
13TU..TM20..4H |
1 | ||
| 16480-95700 |
13TU..TM20..DLX,STD |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12090 |
13TU..TM20 *H,L=1200 |
1 | ||
| 90445-12090 |
13TU..TM20 *H,L=1200 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
13TU..TM20 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-95701 |
13TU..TM20 |
1 | ||
| 16405-95702 |
13TU..TM20 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-18010 |
13TU..TM20 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31001 |
13TU..TM20 |
2 | ||
| 90467-31001 |
13TU..TM20 WATER OUTLET |
1 | ||
| 96111-10380 |
13TU..TM20 RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31001 |
13TU..TM20 |
2 | ||
| 90467-31001 |
13TU..TM20 WATER OUTLET |
1 | ||
| 96111-10380 |
13TU..TM20 RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31001 |
13TU..TM20 |
2 | ||
| 90467-31001 |
13TU..TM20 WATER OUTLET |
1 | ||
| 96111-10380 |
13TU..TM20 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-26010 |
13TU..TM20 WATER PUMP SIDE |
1 | ||
| 16573-18020 |
13TU..TM20 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-26010 |
13TU..TM20 WATER PUMP SIDE |
1 | ||
| 16573-18020 |
13TU..TM20 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
13TU..TM20 ID=47 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
13TU..TM20 ID=47 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90460-47036 |
13TU..TM20 PIPE SIDE |
1 | ||
| 96111-10500 |
13TU..TM20 WATER PUMP SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90460-47036 |
13TU..TM20 PIPE SIDE |
1 | ||
| 96111-10500 |
13TU..TM20 WATER PUMP SIDE |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-24030 |
13TU..TM20 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-27060 |
13TU..TM20 |
1 | ||
| Common parts | ||||
| 90116-08029 | ||||
| 90170-08008 | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 91611-60822 | ||||
| 91611-60845 | ||||
| 91611-60850 | ||||
| 91651-40814 | ||||
| 94531-00800 | ||||

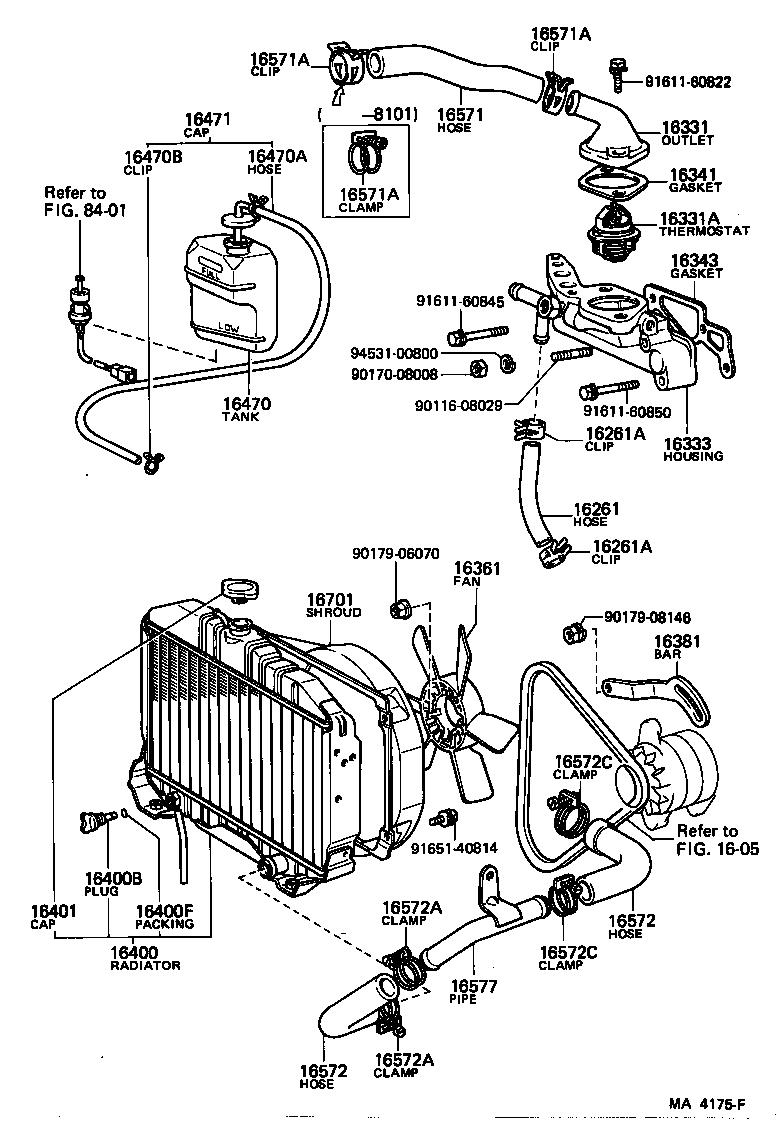

| Linked diagrams | ||||
| 1605 | ||||
| 8401 | ||||
