TM20G-HXZ (1981)

Toyota Lite/Townace Truck

Production Jan 1981 - Oct 1982
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8508)V,WG

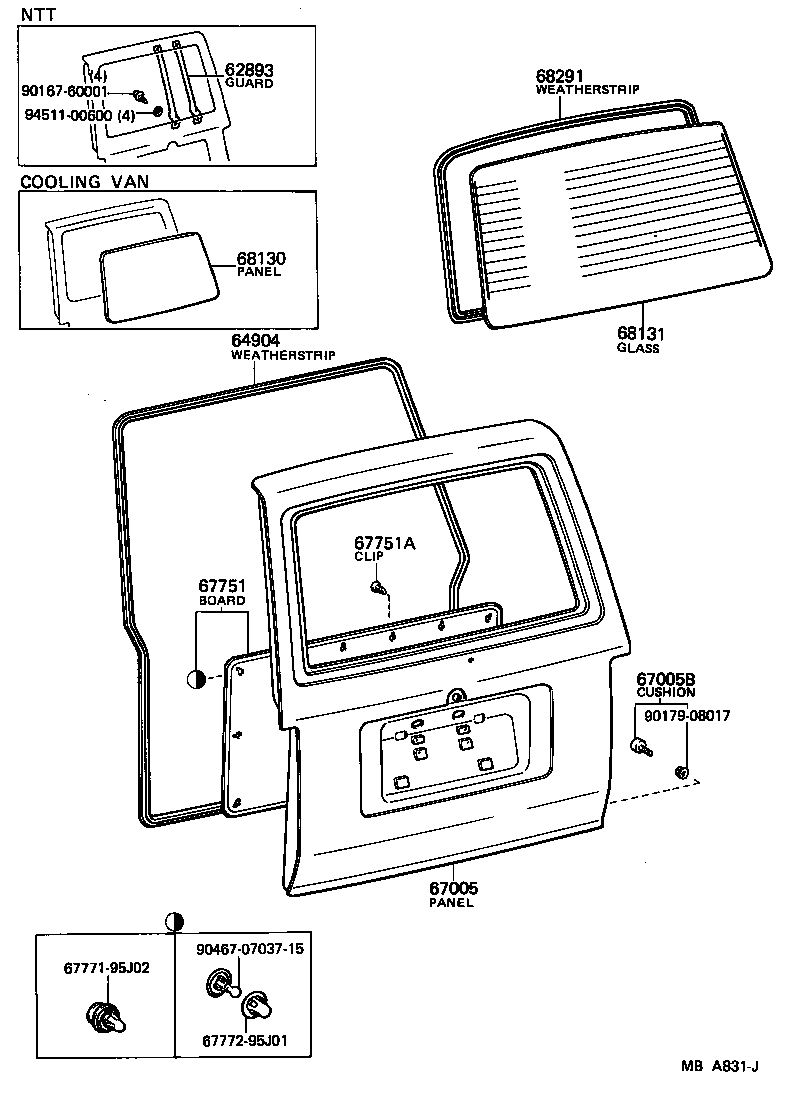

Click highlighted areas on diagram

diagram 62893 64904 67005 67005B 67751 67751A 6777195J02 6777295J01 68130 68131 68291 9016760001 9017908017 904670703715 9451100600
Part # Description Qty Price
64904 - WEATHERSTRIP SUB-ASSY, BACK DOOR
67875-95704

TM20..FXV,GXL

 1
67875-95706

TM20..FXV,GXL

 1
67875-95702

KM20,TM20..(HRF,SRF)..(DLX,STD,SUP,XL)

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-95707

KM20,TM20..(HRF,SRF)..(DLX,STD,XL)

 1
67005-95717

KM20,TM20..(HRF,SRF)..(DLX,STD,SUP,XL)

W/*DEF,UNDER MIRROR

 1
67005-95708

KM20,TM20..(HRF,SRF)..(DLX,STD,SUP,XL)

W/*DEF

 1
67005-95709

TM20..DLX,STD,XL

W/*RW

 1
67005-95710

KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL)

W/*RW,*DEF

 1
67005-95710

TM20

W/*RW,*DEF

 1
67005-95719

KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL)

W/*RW,*DEF,UNDER MIRROR

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
69406-95701

CM20,KM2#,TM20,YM20,21..V,WG

 2
67751 - BOARD, BACK DOOR TRIM
64780-9570006

KM20,TM20..(HRF,SRF)..(DLX,STD,SUP,XL)

BROWN,BROWN

 1
64780-9570016

TM20..XL

D-BROWN,BROWN

 1
64780-9570001

TM20..XL

BLACK,BLACK

 1
64780-9570106

KM20,TM20..HRF,SRF

W/*RW,BROWN,BROWN

 1
64780-9570701

TM20..HRF..(3FC,5F)..XL

W/*PC,BLACK,BLACK

 1
64780-9570716

TM20..HRF..(3FC,5F)..XL

W/*PC,D-BROWN,BROWN

 1
64780-9570816

TM20..HRF..(3FC,5F)..XL

W/*PC,*RW,D-BROWN,BROWN

 1
64780-9570101

TM20..FXV,GXL,XL

W/*RW,BLACK,BLACK

 1
64780-9570116

TM20..FXV,GXL,XL

W/*RW,D-BROWN,BROWN

 1
64780-9570801

TM20..HRF..(3FC,5F)..XL

W/*PC,*RW,BLACK,BLACK

 1
68131 - GLASS, BACK DOOR
68131-95711

TM20..FXV,GXL,XL

BRONZE,*EHT,T=4.0

 1
68131-95707

TM20..DLX,FXV,GXL,XL

*EHTT,T=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-95703

TM20..DLX,FXV,GXL,XL

 1
Common parts
67771-95J02
67772-95J01
90167-60001
90179-08017
90467-0703715
94511-00600
