TM20G-HX (1981)
Toyota Lite/Townace Truck
ILLUST NO. 2 OF 3(7910-8210)TM20..DLX,FXV,GXL,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95702 |
TM20..DLX,GXL,XL NO.2 |
1 | ||
| 88460-95701 |
TM20..DLX,GXL,XL NO.1 |
1 | ||
| 88460-95704 |
TM20..DLX,FXV,GXL,XL NO.2 |
1 | ||
| 88460-95703 |
TM20..DLX,FXV,GXL,XL NO.1 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95702 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95703 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95715 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88688-95704 |
TM20..DLX,GXL,XL |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95715 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88688-95704 |
TM20..DLX,GXL,XL |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88688-95719 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88688-95708 |
TM20..DLX,GXL,XL |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88688-95719 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88688-95708 |
TM20..DLX,GXL,XL |
1 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88895-95700 |
TM20..DLX,GXL,XL |
1 | ||
| 88895-95707 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88895-95701 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88895-87006 |
TM20..DLX,GXL,XL |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88895-95701 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88895-87006 |
TM20..DLX,GXL,XL |
1 | ||
| Common parts | ||||
| 90099-05129 | ||||
| 90099-06083 | ||||
| 90480-40507 | ||||
| 91651-40820 | ||||
| 93313-55012 | ||||
| 93315-55012 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
| 93540-55008 | ||||
| 93540-55012 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||

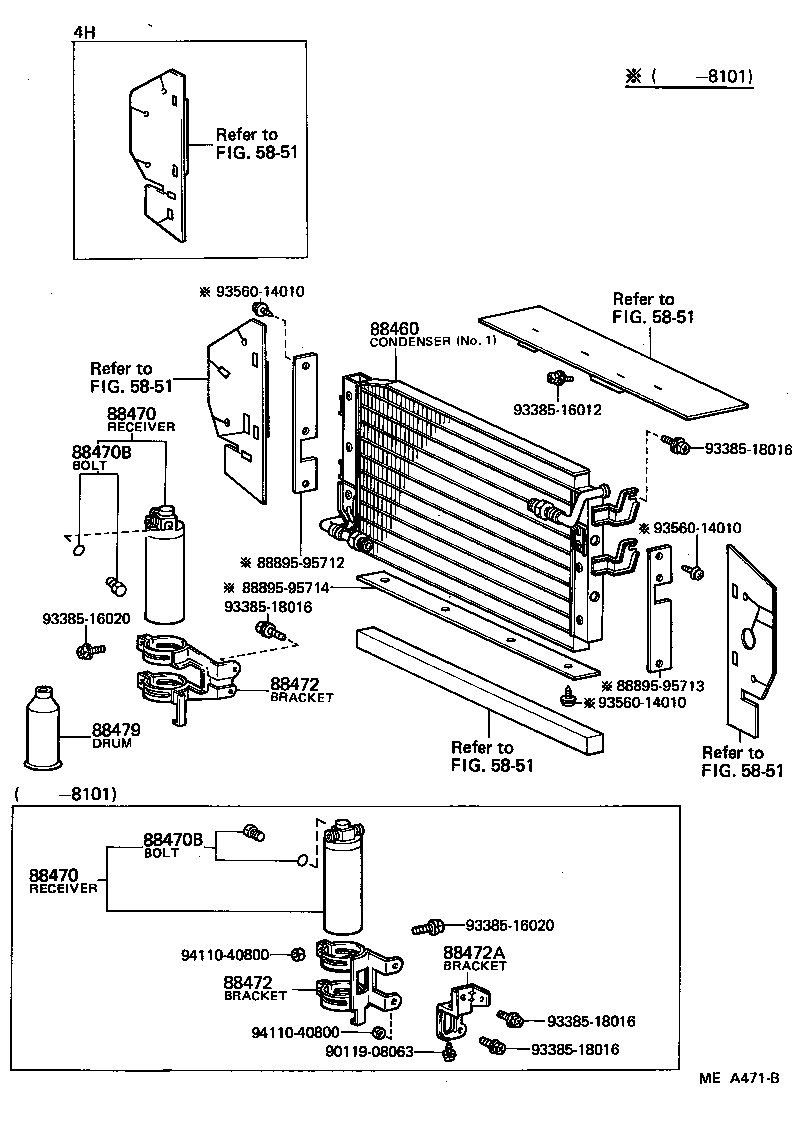

ILLUST NO. 1 OF 3(7910-8210)TM20..DLX,FXV,GXL,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95702 |
TM20..DLX,GXL,XL NO.2 |
1 | ||
| 88460-95701 |
TM20..DLX,GXL,XL NO.1 |
1 | ||
| 88460-95704 |
TM20..DLX,FXV,GXL,XL NO.2 |
1 | ||
| 88460-95703 |
TM20..DLX,FXV,GXL,XL NO.1 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20070 |
KM20,TM20..DLX,GXL,SUP,XL |
1 | ||
| 88471-16010 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20070 |
KM20,TM20..DLX,GXL,SUP,XL |
1 | ||
| 88471-16010 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95701 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88472-95700 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95701 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88472-95700 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88472A - BRACKET, RECEIVER TANK, NO.2 | ||||
| 88688-95708 |
TM20..DLX,GXL,XL |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL 400G |
4 | ||
| Common parts | ||||
| 88895-95712 | ||||
| 88895-95713 | ||||
| 88895-95714 | ||||
| 90119-08063 | ||||
| 93385-16012 | ||||
| 93385-16020 | ||||
| 93385-18016 | ||||
| 93560-14010 | ||||
| 94110-40800 | ||||
| Linked diagrams | ||||
| 5851 | ||||

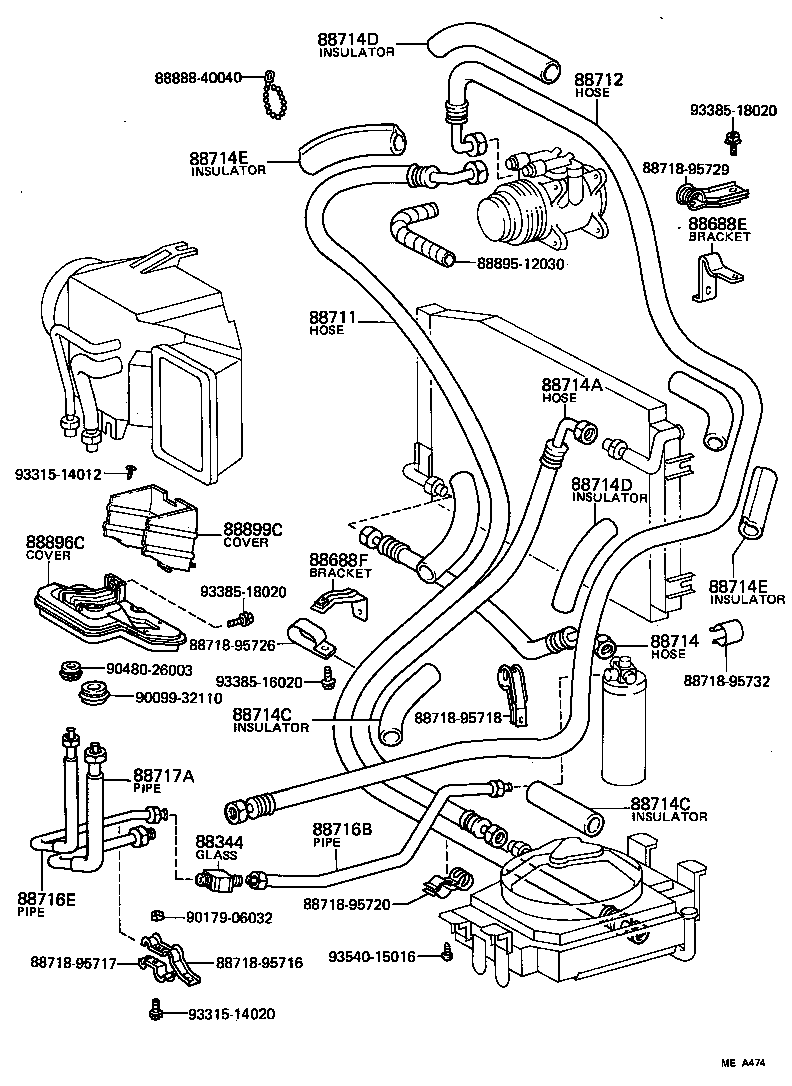

ILLUST NO. 3 OF 3(8101-8210)TM20..DLX,FXV,GXL,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88344 - GLASS SUB-ASSY, SIGHT | ||||
| 88344-30011 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88407-95701 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88386B - PIPE, REAR COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95702 |
TM20..DLX,GXL,XL |
1 | ||
| 88716-95714 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT | ||||
| 88716-95713 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88716-95706 |
TM20..DLX,GXL,XL |
1 | ||
| 88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNI | ||||
| 88717-95701 |
TM20..DLX,GXL,XL |
1 | ||
| 88717-95708 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88387B - PIPE, REAR COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95709 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88717-95703 |
TM20..DLX,GXL,XL |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-95712 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88688-95714 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88688G - BRACKET, COOLER REFRIGERANT PIPE | ||||
| 88688-95713 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95704 |
TM20..DLX,GXL,XL |
1 | ||
| 88711-95705 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95701 |
TM20..DLX,GXL,XL W/TWIN AIR CONDITIONER |
1 | ||
| 88712-95704 |
TM20..DLX,FXV,GXL,XL W/*ODAC |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95700 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88721-95701 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 | ||||
| 88711-20110 |
TM20..DLX,GXL,XL |
1 | ||
| 88711-95706 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-14010 |
KM20,TM20..DLX,FXV,GXL,SUP,XL L=130,OD=32 |
5 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-14010 |
KM20,TM20..DLX,FXV,GXL,SUP,XL L=130,OD=32 |
5 | ||
| 88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88714-20030 |
KM20,TM20..DLX,FXV,GXL,SUP,XL L=180,OD=38 |
5 | ||
| 88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88714-20030 |
KM20,TM20..DLX,FXV,GXL,SUP,XL L=180,OD=38 |
5 | ||
| 88714E - INSULATOR, COOLER REFRIGERANT HOSE, NO.3 | ||||
| 88714-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 88714E - INSULATOR, COOLER REFRIGERANT HOSE, NO.3 | ||||
| 88714-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1 | ||||
| 88592-30190 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95712 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88716-95703 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95717 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88716-95711 |
TM20..DLX,FXV,GXL,XL W/*ODAC |
1 | ||
| 88716-95705 |
TM20..DLX,GXL,XL W/TWIN AIR CONDITIONER |
1 | ||
| 88716-95708 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95706 |
TM20..DLX,FXV,GXL,XL W/*ODAC |
1 | ||
| 88717-95700 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88717-95702 |
TM20..DLX,GXL,XL W/TWIN AIR CONDITIONER |
1 | ||
| 88717-95711 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88896C - COVER, COOLER REFRIGERANT PIPE, NO.1 | ||||
| 88896-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| 88899C - COVER, COOLER REFRIGERANT PIPE, NO.2 | ||||
| 88899-95702 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| Common parts | ||||
| 88718-95707 | ||||
| 88718-95708 | ||||
| 88718-95718 | ||||
| 88718-95723 | ||||
| 88718-95726 | ||||
| 88718-95727 | ||||
| 88718-95728 | ||||
| 88718-95729 | ||||
| 88718-95732 | ||||
| 88895-12030 | ||||
| 88896-95704 | ||||
| 90099-32110 | ||||
| 90099-32117 | ||||
| 90480-26003 | ||||
| 90480-26004 | ||||
| 91611-40620 | ||||
| 91651-40820 | ||||
| 91651-60820 | ||||
| 93315-14010 | ||||
| 93510-54010 | ||||
| 93540-15016 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

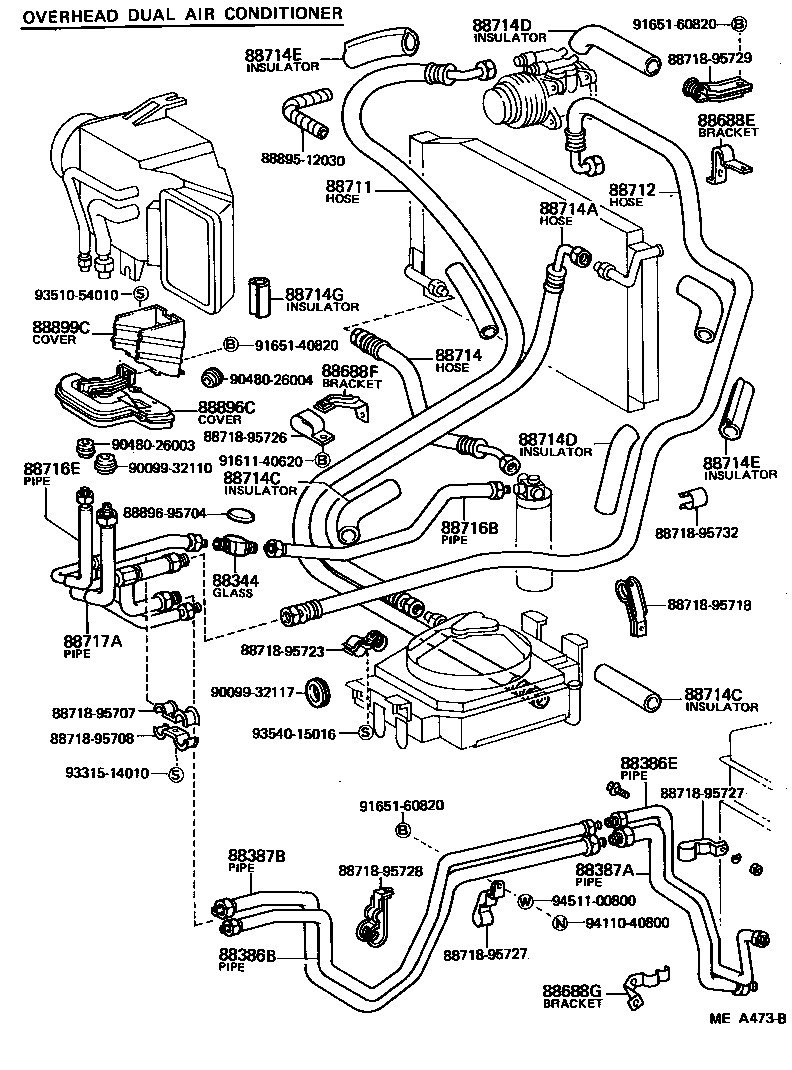

ILLUST NO. 3 OF 3(8101-8210)TM20..DLX,FXV,GXL,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88344 - GLASS SUB-ASSY, SIGHT | ||||
| 88344-30011 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88407-95701 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-95712 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88688-95714 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95704 |
TM20..DLX,GXL,XL |
1 | ||
| 88711-95705 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95701 |
TM20..DLX,GXL,XL W/TWIN AIR CONDITIONER |
1 | ||
| 88712-95704 |
TM20..DLX,FXV,GXL,XL W/*ODAC |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95700 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88721-95701 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 | ||||
| 88711-20110 |
TM20..DLX,GXL,XL |
1 | ||
| 88711-95706 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-14010 |
KM20,TM20..DLX,FXV,GXL,SUP,XL L=130,OD=32 |
5 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-14010 |
KM20,TM20..DLX,FXV,GXL,SUP,XL L=130,OD=32 |
5 | ||
| 88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88714-20030 |
KM20,TM20..DLX,FXV,GXL,SUP,XL L=180,OD=38 |
5 | ||
| 88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88714-20030 |
KM20,TM20..DLX,FXV,GXL,SUP,XL L=180,OD=38 |
5 | ||
| 88714E - INSULATOR, COOLER REFRIGERANT HOSE, NO.3 | ||||
| 88714-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 88714E - INSULATOR, COOLER REFRIGERANT HOSE, NO.3 | ||||
| 88714-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95712 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88716-95703 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95717 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88716-95711 |
TM20..DLX,FXV,GXL,XL W/*ODAC |
1 | ||
| 88716-95705 |
TM20..DLX,GXL,XL W/TWIN AIR CONDITIONER |
1 | ||
| 88716-95708 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95706 |
TM20..DLX,FXV,GXL,XL W/*ODAC |
1 | ||
| 88717-95700 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88717-95702 |
TM20..DLX,GXL,XL W/TWIN AIR CONDITIONER |
1 | ||
| 88717-95711 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88896C - COVER, COOLER REFRIGERANT PIPE, NO.1 | ||||
| 88896-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| 88899C - COVER, COOLER REFRIGERANT PIPE, NO.2 | ||||
| 88899-95702 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| Common parts | ||||
| 88718-95716 | ||||
| 88718-95717 | ||||
| 88718-95718 | ||||
| 88718-95720 | ||||
| 88718-95726 | ||||
| 88718-95729 | ||||
| 88718-95732 | ||||
| 88888-40040 | ||||
| 88895-12030 | ||||
| 90099-32110 | ||||
| 90179-06032 | ||||
| 90480-26003 | ||||
| 93315-14012 | ||||
| 93315-14020 | ||||
| 93385-16020 | ||||
| 93385-18020 | ||||
| 93540-15016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
