TM20G-HQZ (1981)
Toyota Lite/Townace Truck
Production
Jan 1981
-
Oct 1982
Engine
13TU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8101-8210)13TU..3FC

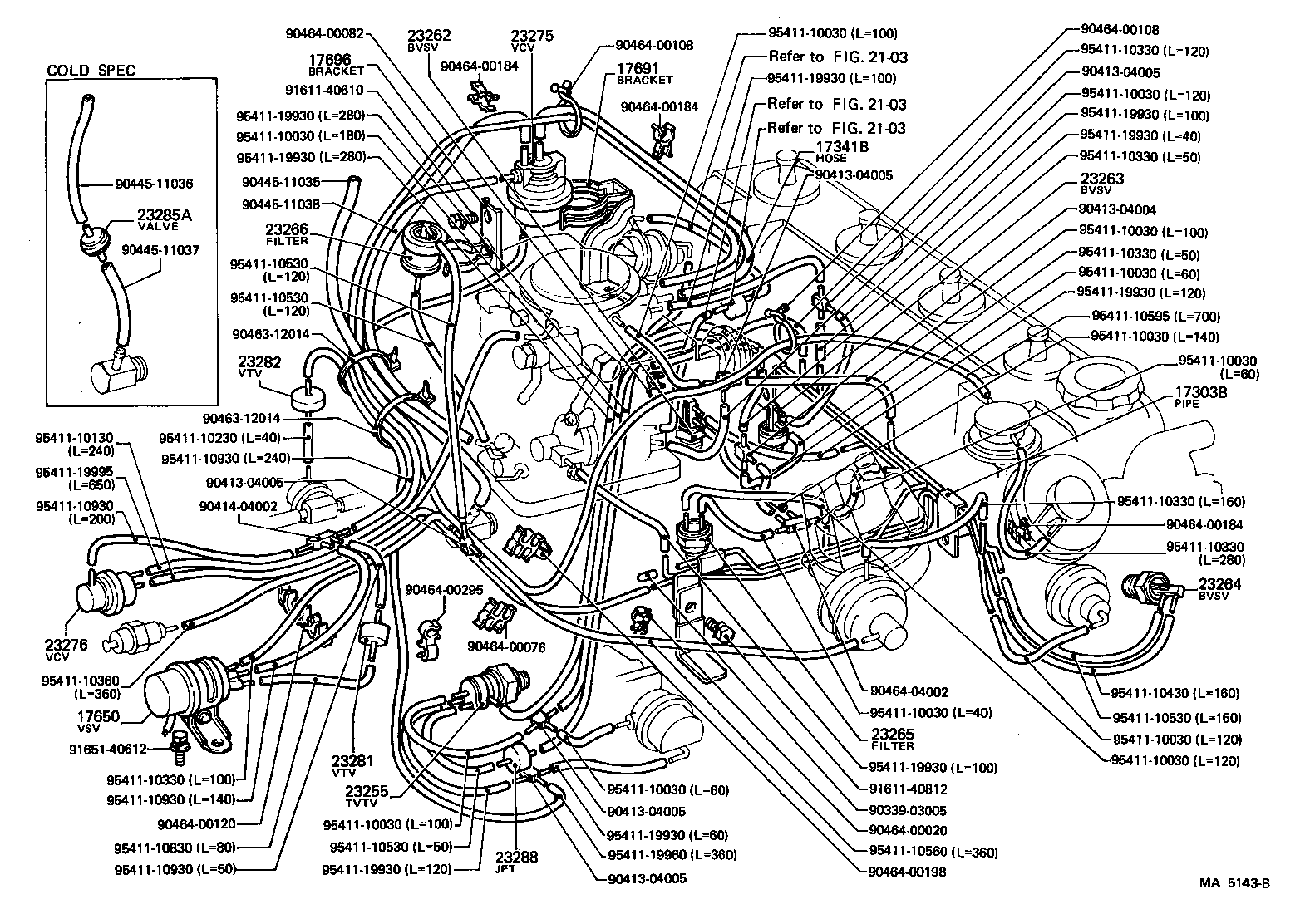

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-18010 |
13TU..TM20 |
1 | ||
| 17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-18010 |
13TU..TM20 |
1 | ||
| 17341-18011 |
13TU..TM20 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-27030 |
13TU..TM20 |
1 | ||
| 17691 - BRACKET, VACUUM CONTROL VALVE, NO.1 | ||||
| 17691-18020 |
13TU..TM20 |
1 | ||
| 17696 - BRACKET, GAS FILTER | ||||
| 17696-18010 |
13TU..TM20 |
1 | ||
| 23255 - VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01068 |
13TU..TM20 |
1 | ||
| 90925-01082 |
13TU..TM20 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05044 |
13TU..TM20 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05062 |
13TU..TM20 |
1 | ||
| 90925-05015 |
13TU..TM20 |
1 | ||
| 23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3 | ||||
| 90925-05038 |
13TU..TM20 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
13TU..TM20 |
1 | ||
| 23266 - FILTER, GAS, NO.2 | ||||
| 90917-11009 |
13TU..TM20 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03055 |
13TU..TM20 |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03056 |
13TU..TM20 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01080 |
13TU..TM20..3FC |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01083 |
13TU..TM20..3FC |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10053 |
13TU..TM20 COLD SPEC |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04012 |
13TU..TM20..3FC |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90414-04002 | ||||
| 90445-11035 | ||||
| 90445-11036 | ||||
| 90445-11037 | ||||
| 90445-11038 | ||||
| 90463-12014 | ||||
| 90464-00020 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 90464-00108 | ||||
| 90464-00120 | ||||
| 90464-00184 | ||||
| 90464-00198 | ||||
| 90464-00295 | ||||
| 90464-04002 | ||||
| 91611-40610 | ||||
| 91611-40812 | ||||
| 91651-40612 | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10360 | ||||
| 95411-10430 | ||||
| 95411-10530 | ||||
| 95411-10560 | ||||
| 95411-10595 | ||||
| 95411-10830 | ||||
| 95411-10930 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95411-19995 | ||||
| Linked diagrams | ||||
| 2103 | ||||
