TM20G-HQ (1981)

Toyota Lite/Townace Truck

Production Jan 1981 - Jan 1982
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)13TU

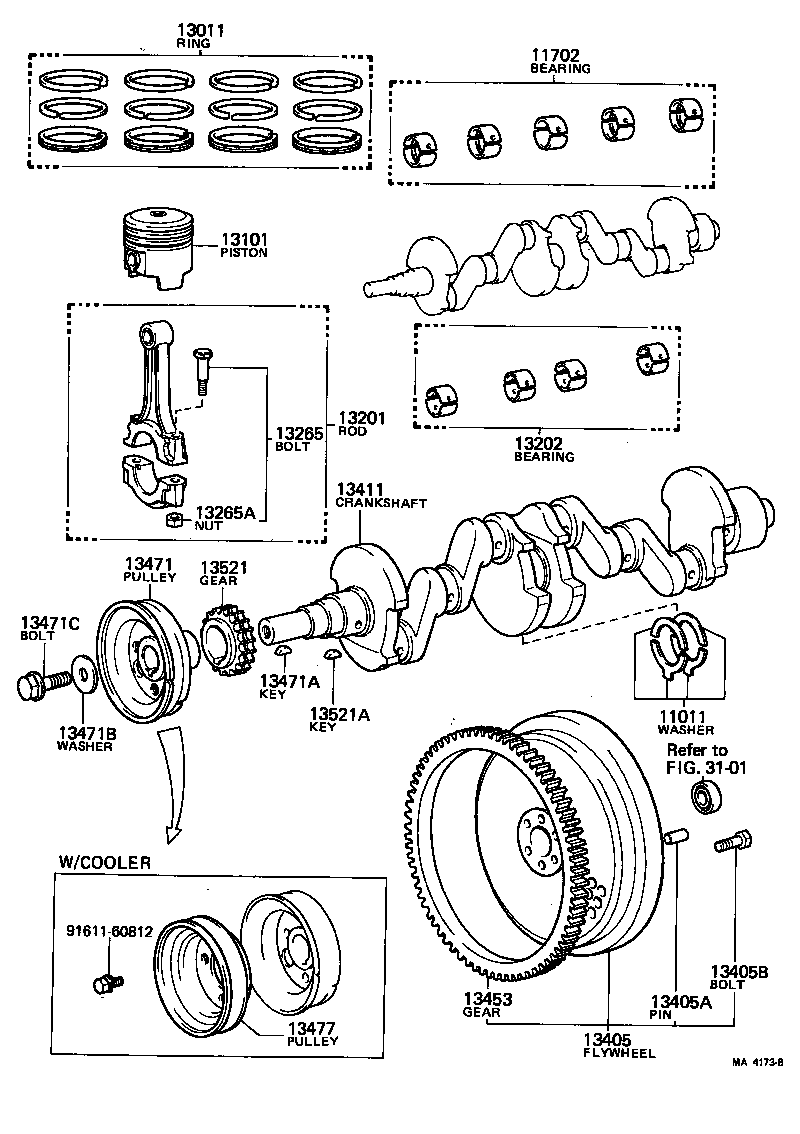

Click highlighted areas on diagram

diagram 11011 11702 13011 13101 13201 13202 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471A 13471B 13471C 13477 13521 13521A 3101 9161160812
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11012-25010

13TU..TM20

O/S 0.125

 1
11011-25010

13TU..TM20

STD

 1
11013-25010

13TU..TM20

O/S 0.250

 1
11702 - BEARING SET, CRANKSHAFT
11702-25013

13TU..TM20

STD

 1
11704-25013

13TU..TM20

U/S 0.25

 1
11705-25013

13TU..TM20

U/S 0.50

 1
11703-25013

13TU..TM20

U/S 0.05

 1
13011 - RING SET, PISTON
13011-28030

13TU..TM20

STD

 1
13015-28030

13TU..TM20

O/S 1.00

 1
13014-28030

13TU..TM20

O/S 0.75

 1
13013-28030

13TU..TM20

O/S 0.50

 1
13101 - PISTON SUB-ASSY, W/PIN
13103-18010

13TU..TM20

O/S 0.50

 4
13101-18010

13TU..TM20

STD

 4
13104-18010

13TU..TM20

O/S 0.75

 4
13105-18010

13TU..TM20

O/S 1.00

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-25010

13TU..TM20

 4
13202 - BEARING SET, CONNECTING ROD
13205-25010

13TU..TM20

U/S 0.50

 1
13202-25010

13TU..TM20

STD

 1
13203-25010

13TU..TM20

U/S 0.05

 1
13204-25010

13TU..TM20

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-29025

13TU..TM20

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09195

13TU..TM20

 8
13411 - CRANKSHAFT
13411-28010

13TU..TM20

 1
13471 - PULLEY, CRANKSHAFT
13471-18010

13TU..TM20

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

13TU..TM20

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90209-13003

13TU..TM20

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-12051

13TU..TM20

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-27010

13TU..TM20

W/COOLER

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-33010

13TU..TM20

N=18

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

13TU..TM20

 1
Common parts
91611-60812
Linked diagrams
3101
