TM20G-HNZ (1981)
Toyota Lite/Townace Truck

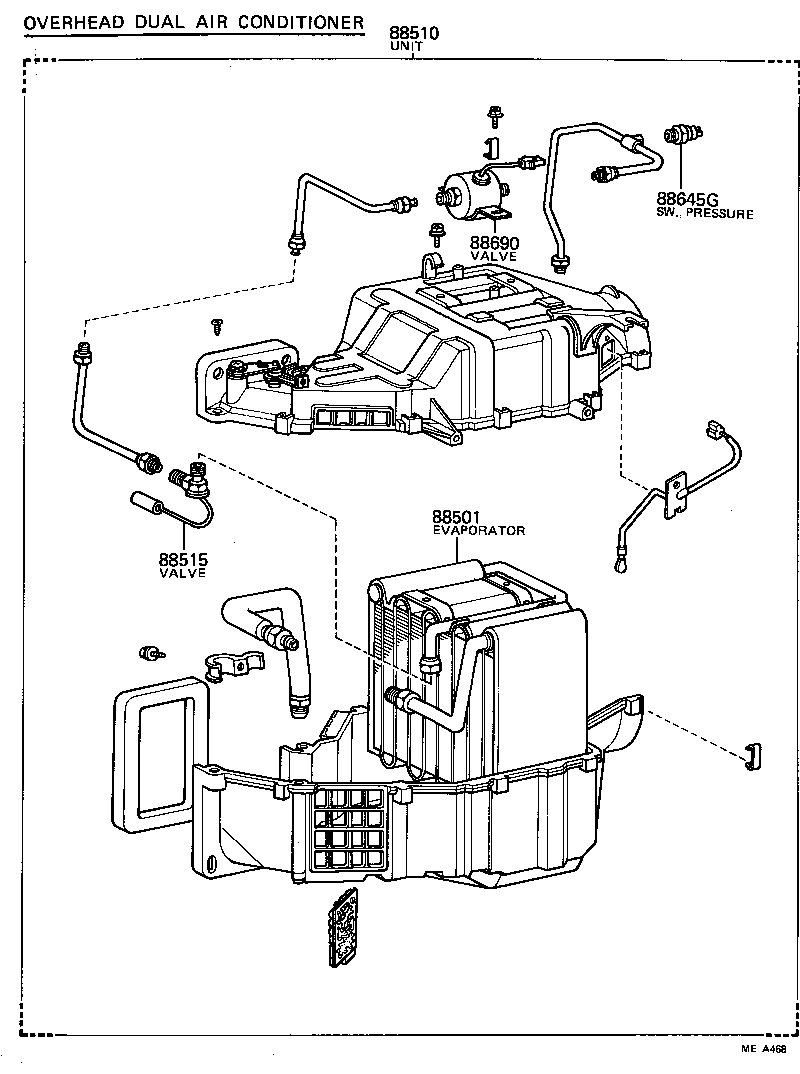

ILLUST NO. 2 OF 3(7910-8210)DLX,FXV,GXL,SUP,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-87004 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88501-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL FR |
1 | ||
| 88501-95701 |
TM20..DLX,GXL,XL RR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95708 |
TM20..DLX,FXV,GXL,XL FR,W/*ODAC |
1 | ||
| 88510-95700 |
KM20,TM20..DLX,GXL,SUP,XL FR |
1 | ||
| 88510-95709 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88510-95705 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88510-95707 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) FR |
1 | ||
| 88510-95701 |
TM20..DLX,GXL,XL RR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20040 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-22020 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-16010 |
KM20,TM20..DLX,GXL,SUP,XL |
1 | ||
| 88650-95700 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-95709 |
KM20,TM20..DLX,GXL,SUP,XL |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-95704 |
KM20,TM20..DLX,GXL,SUP,XL |
1 | ||

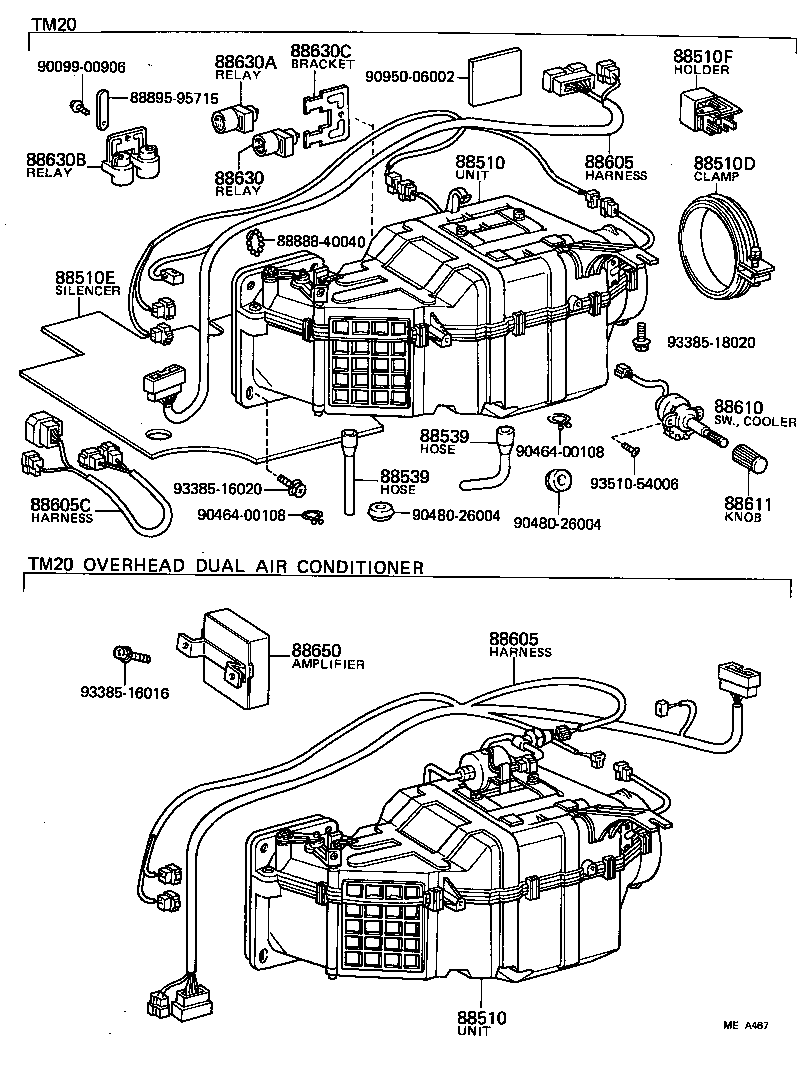

ILLUST NO. 1 OF 3(8101-8210)TM20..DLX,FXV,GXL,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95708 |
TM20..DLX,FXV,GXL,XL FR,W/*ODAC |
1 | ||
| 88510-95700 |
KM20,TM20..DLX,GXL,SUP,XL FR |
1 | ||
| 88510-95709 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88510-95705 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88510-95707 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) FR |
1 | ||
| 88510-95701 |
TM20..DLX,GXL,XL RR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95708 |
TM20..DLX,FXV,GXL,XL FR,W/*ODAC |
1 | ||
| 88510-95700 |
KM20,TM20..DLX,GXL,SUP,XL FR |
1 | ||
| 88510-95709 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88510-95705 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88510-95707 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) FR |
1 | ||
| 88510-95701 |
TM20..DLX,GXL,XL RR |
1 | ||
| 88510D - CLAMP, COOLER UNIT | ||||
| 88894-22040 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| 88510E - SILENCER, COOLER UNIT | ||||
| 88895-95702 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88510F - HOLDER, FUSE | ||||
| 88801-95700 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95701 |
TM20..DLX,GXL,XL W/TWIN AIR CONDITIONER |
1 | ||
| 88605-95705 |
TM20..DLX,FXV,GXL,XL W/*ODAC |
1 | ||
| 88605-95708 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95701 |
TM20..DLX,GXL,XL W/TWIN AIR CONDITIONER |
1 | ||
| 88605-95705 |
TM20..DLX,FXV,GXL,XL W/*ODAC |
1 | ||
| 88605-95708 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-95710 |
TM20..DLX,FXV,GXL,XL W/*ODAC |
1 | ||
| 88605-95709 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| 88611 - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-95711 |
TM20..DLX,GXL,XL RR |
1 | ||
| 88611-95710 |
KM20,TM20..DLX,FXV,GXL,SUP,XL FR |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-95701 |
TM20..DLX,FXV,GXL,XL FR |
1 | ||
| 88630-95704 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88630-95A01 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88630-14010 |
TM20..DLX,GXL,XL |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-10010 |
TM20..DLX,GXL,XL |
1 | ||
| 88630-95702 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 88630-95703 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88688-95728 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88688-95727 |
TM20..DLX,FXV,GXL,XL FR |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-16010 |
KM20,TM20..DLX,GXL,SUP,XL |
1 | ||
| 88650-95700 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| Common parts | ||||
| 88888-40040 | ||||
| 88895-95715 | ||||
| 90099-00906 | ||||
| 90464-00108 | ||||
| 90480-26004 | ||||
| 90950-06002 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-18020 | ||||
| 93510-54006 | ||||
ILLUST NO. 2 OF 3(8101-8210)TM20..DLX,FXV,GXL,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-87004 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88501-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL FR |
1 | ||
| 88501-95701 |
TM20..DLX,GXL,XL RR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95708 |
TM20..DLX,FXV,GXL,XL FR,W/*ODAC |
1 | ||
| 88510-95700 |
KM20,TM20..DLX,GXL,SUP,XL FR |
1 | ||
| 88510-95709 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88510-95705 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88510-95707 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) FR |
1 | ||
| 88510-95701 |
TM20..DLX,GXL,XL RR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20040 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-22020 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88691-95A02 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88691-95701 |
TM20..DLX,FXV,GXL,XL W/*ODAC |
1 | ||
| 88691-95700 |
TM20..DLX,GXL,XL |
1 | ||

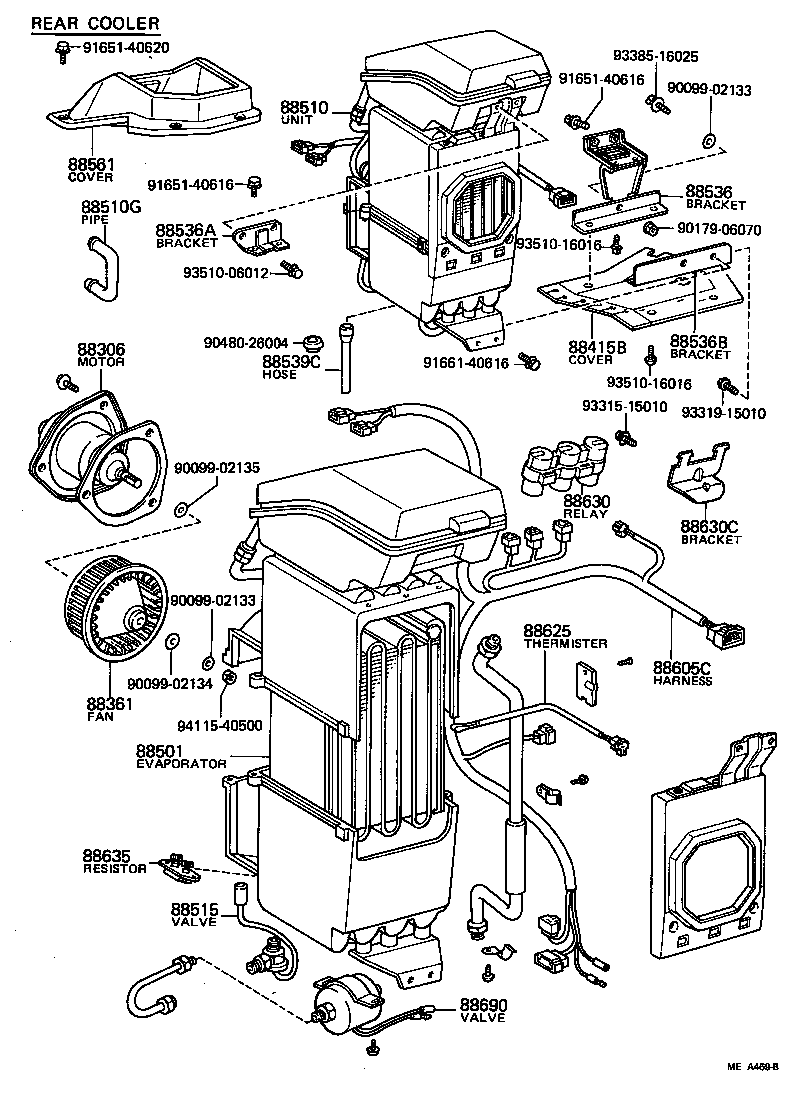

ILLUST NO. 3 OF 3(8101-8210)TM20..DLX,FXV,GXL,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-87004 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 87104-95700 |
TM20..DLX,GXL,XL |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-14030 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88415B - COVER, DUST | ||||
| 88415-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-87004 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88501-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL FR |
1 | ||
| 88501-95701 |
TM20..DLX,GXL,XL RR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95708 |
TM20..DLX,FXV,GXL,XL FR,W/*ODAC |
1 | ||
| 88510-95700 |
KM20,TM20..DLX,GXL,SUP,XL FR |
1 | ||
| 88510-95709 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88510-95705 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88510-95707 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) FR |
1 | ||
| 88510-95701 |
TM20..DLX,GXL,XL RR |
1 | ||
| 88510G - PIPE, AIR | ||||
| 88892-95703 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20040 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95700 |
TM20..DLX,GXL,XL |
1 | ||
| 88688-95722 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95701 |
TM20..DLX,GXL,XL |
1 | ||
| 88688-95723 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88688-95709 |
TM20..DLX,GXL,XL |
1 | ||
| 88688-95720 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95701 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88561 - COVER, COOLER UNIT | ||||
| 88896-95701 |
TM20..DLX,GXL,XL |
1 | ||
| 88897-95700 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-95710 |
TM20..DLX,FXV,GXL,XL W/*ODAC |
1 | ||
| 88605-95709 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12050 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-95701 |
TM20..DLX,FXV,GXL,XL FR |
1 | ||
| 88630-95704 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88630-95A01 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88630-14010 |
TM20..DLX,GXL,XL |
1 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88688-95728 |
TM20..DLX,FXV,GXL,XL RR |
1 | ||
| 88688-95727 |
TM20..DLX,FXV,GXL,XL FR |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 87138-12090 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88635-95700 |
TM20..DLX,GXL,XL |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88691-95A02 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88691-95701 |
TM20..DLX,FXV,GXL,XL W/*ODAC |
1 | ||
| 88691-95700 |
TM20..DLX,GXL,XL |
1 | ||
| Common parts | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90179-06070 | ||||
| 90480-26004 | ||||
| 91651-40616 | ||||
| 91651-40620 | ||||
| 91661-40616 | ||||
| 93315-15010 | ||||
| 93319-15010 | ||||
| 93385-16025 | ||||
| 93510-06012 | ||||
| 93510-16016 | ||||
| 94115-40500 | ||||
