TM20G-HNZ (1981)

Toyota Lite/Townace Truck

Production Jan 1981 - Oct 1982
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8101-8201)3FC

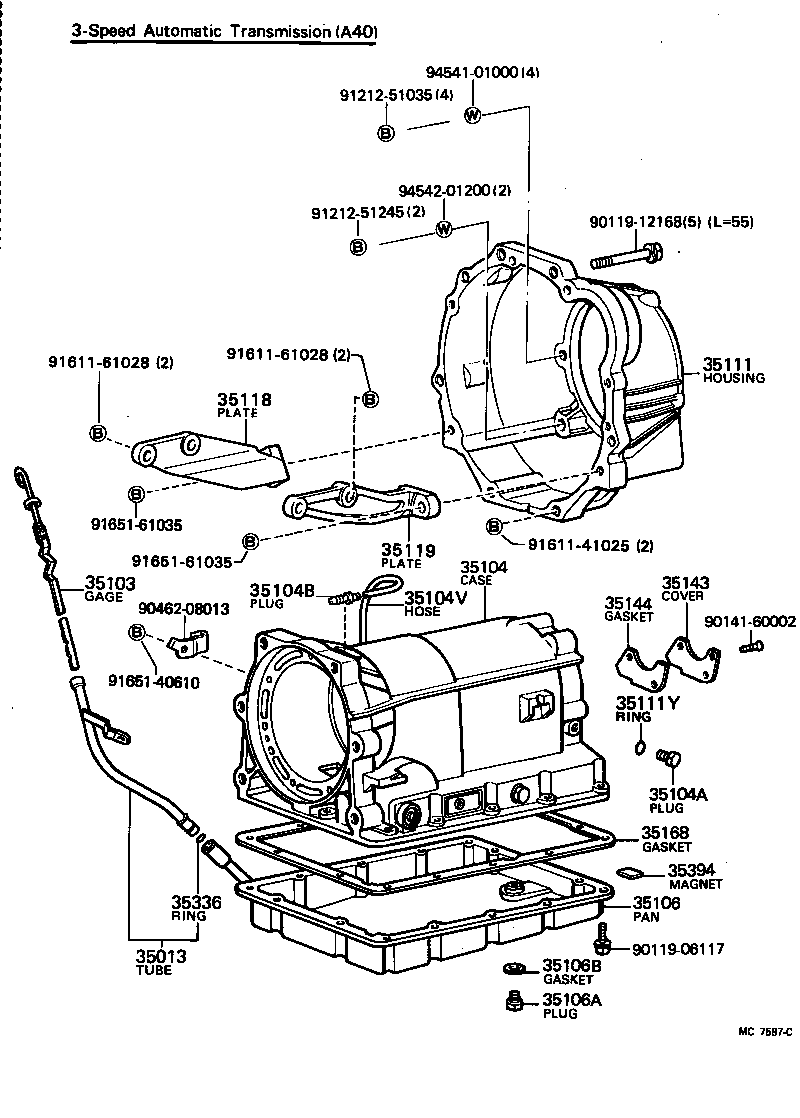

Click highlighted areas on diagram

diagram 35013 35103 35104 35104A 35104B 35104V 35106 35106A 35106B 35111 35111Y 35118 35119 35143 35144 35168 35336 35394 9011906117 9011912168 9014160002 9046208013 9121251035 9121251245 9161141025 9161161028 9161161028 9165140610 9165161035 9165161035 9454101000 9454201200
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-28010

TM20..3FC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-14022

TM20..3FC

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-22024

TM20..3FC

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08079

TM20..3FC

 2
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-22020

TM20..3FC

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-14050

TM20..3FC

 1
35118 - PLATE, STIFENER, RH (ATM)
33118-12020

TM20..3FC

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-12011

TM20..3FC

 1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-22010

TM20..3FC

 1
Common parts
90119-06117
90119-12168
90141-60002
90462-08013
91212-51035
91212-51245
91611-41025
91611-61028
91651-40610
91651-61035
94541-01000
94542-01200
