KM51-TYNNS (1986)
Toyota Lite/Townace Truck

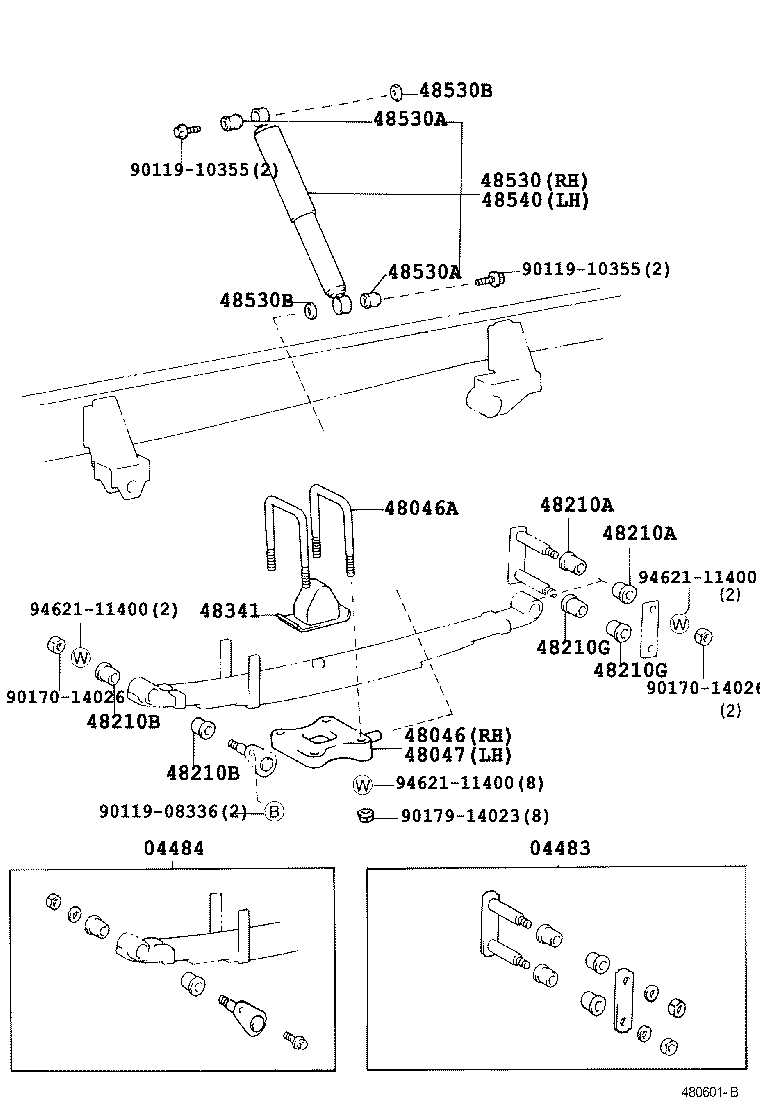

ILLUST NO. 1 OF 3(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-27011 |
CM5#,6#,KM5#,YM55,60 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-26030 |
KM5#..JL,SJL;CM5#,6#,YM55,60 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-27100 |
CM50,51,55,KM5#,YM55 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14042 |
CM50,51,KM5# 長さ=138 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-27080 |
CM50,51,55,KM5#,YM55 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
CM5#,6#,KM5#,YM55,6# |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
CM5#,6#,KM5#,YM55,6# |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
CM5#,6#,KM5#,YM55,60 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
CM5#,6#,KM5#,YM55,60 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
KM5#..JL,SJL;CM5#,6#,YM55,60 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
KM5#..JL,SJL;CM5#,6#,YM55,60 |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-27100 |
CM50,55,60,KM5#,YM55,60..SJL,T1 |
2 | ||
| 48341-27090 |
CM50,51,6#,KM50,YM60..JL |
2 | ||
| 48341-27100 |
CM50,51,KM50..JL ﾄｸｿｳｼﾔ ｼﾖｳ |
2 | ||
| 48341-27100 |
CM50,51,KM50..JL 4-LEAF |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80295 |
CM50,51,KM5#..JL,T1 |
1 | ||
| 48531-80300 |
CM5#,KM5#,YM55..SJL,SJLC |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16001 |
CM5#,6#,KM5#,YM55,6# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16001 |
CM5#,6#,KM5#,YM55,6# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
CM5#,6#,KM5#,YM55,6# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
CM5#,6#,KM5#,YM55,6# |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80295 |
CM50,51,KM5#..JL,T1 |
1 | ||
| 48531-80300 |
CM5#,KM5#,YM55..SJL,SJLC |
1 | ||
| Common parts | ||||
| 90119-08336 | ||||
| 90119-10355 | ||||
| 90170-14026 | ||||
| 90179-14023 | ||||
| 94621-11400 | ||||

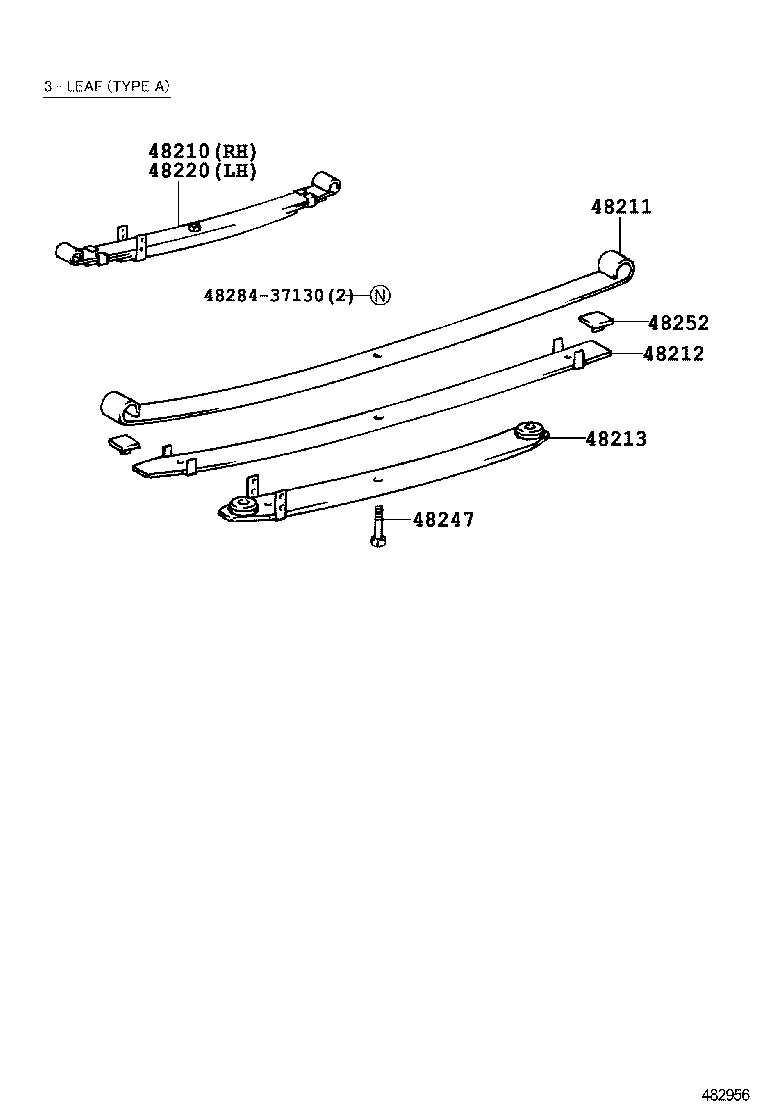

ILLUST NO. 3 OF 3(8610- )CM50,51,KM5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-27480 |
CM50,51,KM50..JL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27490 |
CM50,KM5#..SJL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27490 |
CM50,KM5#..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27490 |
CM50,KM5#..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-27480 |
CM50,51,KM50..JL 3-LEAF(TYPE A,B) |
2 | ||
| 48211-27490 |
CM50,KM5#..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48211-27480 |
KM50..TJ;CM50,51,KM50..JL 3-LEAF(TYPE A,B) |
2 | ||
| 48211-27490 |
CM50,KM5#..SJL 3-LEAF(TYPE A) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-27480 |
CM50,51,KM50..JL 3-LEAF(TYPE A,B) |
2 | ||
| 48202-27480 |
KM50..TJ;CM50,51,KM50..JL 3-LEAF(TYPE A,B) |
2 | ||
| 48202-27490 |
CM50,KM5#..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-27480 |
CM50,51,KM50..JL 4-LEAF(TYPE B) |
2 | ||
| 48203-27490 |
CM50,KM5#..SJL 3-LEAF(TYPE A) |
2 | ||
| 48203-27480 |
KM50..TJ;CM50,51,KM50..JL 4-LEAF(TYPE A,B) |
2 | ||
| 48203-27490 |
CM50,KM5#..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-27490 |
CM50,KM5#..SJL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27490 |
CM50,KM5#..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27480 |
CM50,51,KM50..JL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35480 |
CM50,51,KM5#..JL,SJL 3-LEAF(TYPE A) |
2 | ||
| 48247-35480 |
CM50,51,KM5#..(JL,SJL)..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 3 OF 3(8610- )CM51,KM5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-27480 |
CM50,51,KM50..JL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27490 |
CM50,KM5#..SJL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27490 |
CM50,KM5#..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27490 |
CM50,KM5#..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-27480 |
CM50,51,KM50..JL 3-LEAF(TYPE A,B) |
2 | ||
| 48211-27490 |
CM50,KM5#..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48211-27480 |
KM50..TJ;CM50,51,KM50..JL 3-LEAF(TYPE A,B) |
2 | ||
| 48211-27490 |
CM50,KM5#..SJL 3-LEAF(TYPE A) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-27480 |
CM50,51,KM50..JL 3-LEAF(TYPE A,B) |
2 | ||
| 48202-27480 |
KM50..TJ;CM50,51,KM50..JL 3-LEAF(TYPE A,B) |
2 | ||
| 48202-27490 |
CM50,KM5#..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-27480 |
CM50,51,KM50..JL 4-LEAF(TYPE B) |
2 | ||
| 48203-27490 |
CM50,KM5#..SJL 3-LEAF(TYPE A) |
2 | ||
| 48203-27480 |
KM50..TJ;CM50,51,KM50..JL 4-LEAF(TYPE A,B) |
2 | ||
| 48203-27490 |
CM50,KM5#..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-27490 |
CM50,KM5#..SJL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27490 |
CM50,KM5#..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27480 |
CM50,51,KM50..JL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35480 |
CM50,51,KM5#..JL,SJL 3-LEAF(TYPE A) |
2 | ||
| 48247-35480 |
CM50,51,KM5#..(JL,SJL)..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||
