KM51-TYMNS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 5K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )SPX ; (8910- )CM55..4HC ; (8910-)CM65,YM65..IV

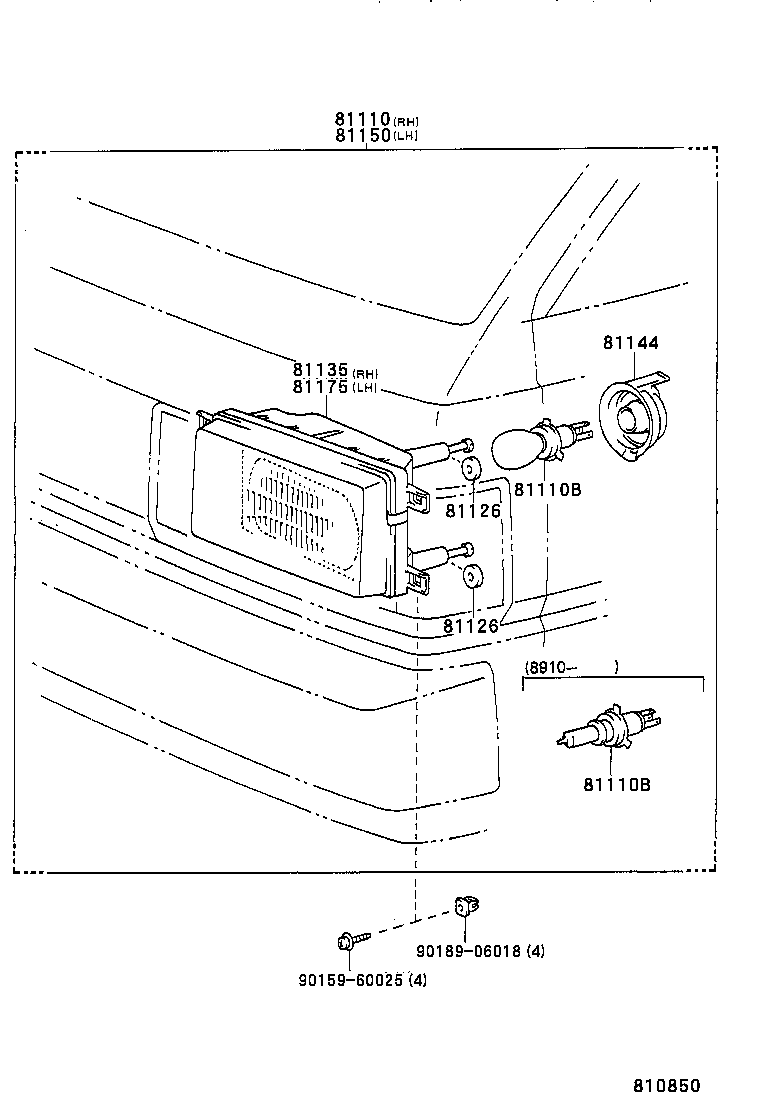

Click highlighted areas on diagram

CM55,65,YM65..ｷﾔﾝﾋﾟﾝｸﾞｶｰｼﾖｳ

diagram 81110 81110B 81110B 81126 81126 81135 81144 81150 81175 9015960025 9018906018
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-95736

KM51,YM60..SPX

 1
81110-95735

KM51,YM60..SPX

 1
81110-27070

KM51,YM60..SPX

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13022

KM51,YM60..SPX

12V 65/60W,ﾎﾜｲﾄ

 2
90981-13015

CM65..TS;CM5#,60,61,KM51,YM55,6#

12V 60/55W,*HAL *WH

 2
90981-13015

CM5#,6#,KM5#,YM55,6#

12V 60/55W,*HAL *WH

 2
90981-13015

KM51,YM60..SPX

12V 60/55W,*HAL *WH

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13022

KM51,YM60..SPX

12V 65/60W,ﾎﾜｲﾄ

 2
90981-13015

CM65..TS;CM5#,60,61,KM51,YM55,6#

12V 60/55W,*HAL *WH

 2
90981-13015

CM5#,6#,KM5#,YM55,6#

12V 60/55W,*HAL *WH

 2
90981-13015

KM51,YM60..SPX

12V 60/55W,*HAL *WH

 2
81126 - PLATE, HEADLAMP
81124-95735

KM51,YM60..SPX

 4
81126 - PLATE, HEADLAMP
81124-95735

KM51,YM60..SPX

 4
81135 - UNIT ASSY, HEADLAMP, RH
81130-95736

KM51,YM60..SPX

 1
81130-27070

KM51,YM60..SPX

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

KM51,YM60..SPX

 2
81150 - HEADLAMP ASSY, LH
81150-95735

KM51,YM60..SPX

 1
81150-27070

KM51,YM60..SPX

 1
81150-95736

KM51,YM60..SPX

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-95735

KM51,YM60..SPX

 1
81170-27070

KM51,YM60..SPX

 1
81170-95736

KM51,YM60..SPX

 1
Common parts
90159-60025
90189-06018
