KM51-TYMNS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 5K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )

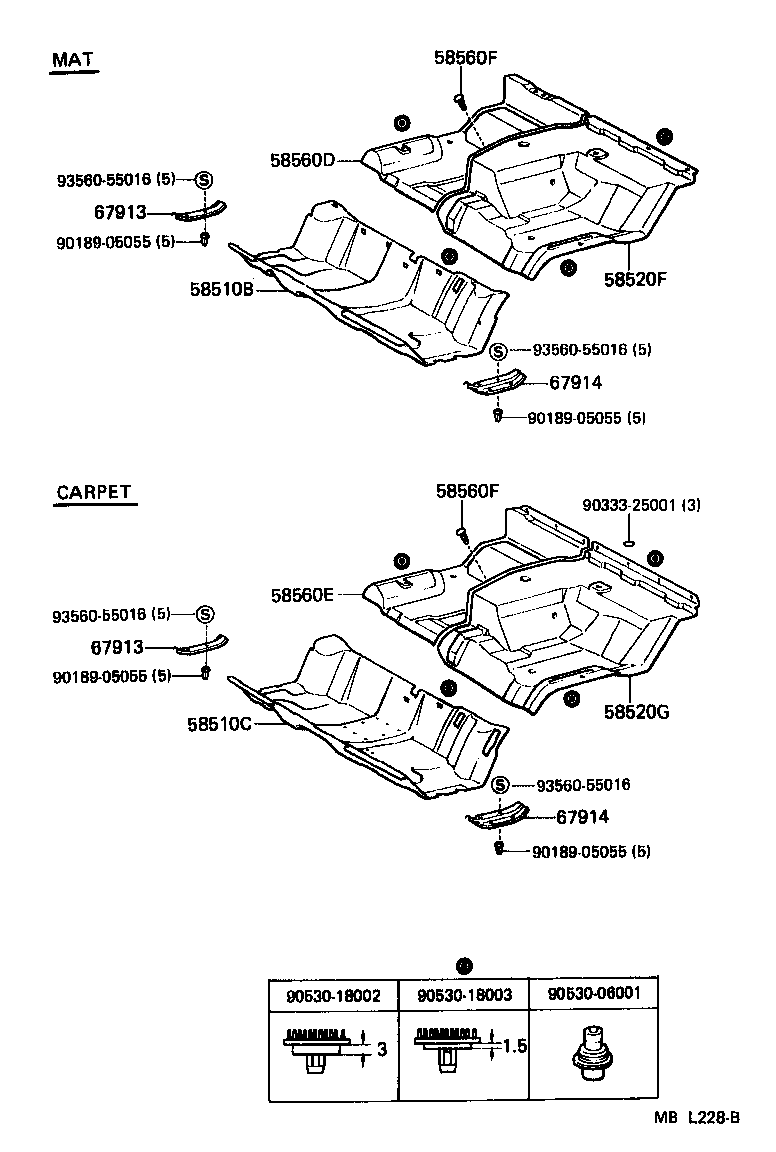

Click highlighted areas on diagram

diagram 58510B 58510C 58520F 58520G 58560D 58560E 58560F 58560F 67913 67913 67914 67914 9018905055 9018905055 9018905055 9018905055 9033325001 9053006001 9053018002 9053018003 9356055016 9356055016 9356055016 9356055016
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-9572213

KM51,YM60..SPX

LIGHT GRAY,TRIM1#

 1
58510-9572203

KM51,YM60..5F

MEDIUM GRAY,TRIM1#

 1
58510-27050B1

KM51,YM60..SPX

LIGHT GRAY,TRIM1#

 1
58510-27050B0

KM51,YM60..SPX

LIGHT GRAY,TRIM1#

 1
58520G - CARPET ASSY, ENGINE COVER
58520-9570503

KM51,YM60..5F

MEDIUM GRAY,TRIM1#

 1
58520-9571013

KM51,YM60..SPX

LIGHT GRAY,TRIM1#

 1
58520-9571003

KM51,YM60..5F

MEDIUM GRAY,TRIM1#

 1
58520-95710B0

KM51,YM60..SPX

LIGHT GRAY,TRIM1#

 1
58560E - CARPET ASSY, SEAT FLOOR
58560-9570903

KM51,YM60..5F

MEDIUM GRAY,TRIM1#

 1
58560-9570203

KM51,YM60..5F

MEDIUM GRAY,TRIM1#

 1
58560-95709B0

KM51,YM60..SPX

LIGHT GRAY,TRIM1#

 1
58560-9570913

KM51,YM60..SPX

LIGHT GRAY,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-9570203

KM51,YM60..5F

MEDIUM GRAY,TRIM1#

 1
67913-95702B0

CM5#,6#,KM51,YM55,6#

LIGHT GRAY,TRIM1#

 1
67913-9570213

CM5#,6#,KM5#,YM55,6#

GRAY,TRIM1#

 1
67913-9570213

CM65..TS;CM5#,60,61,KM51,YM55,6#

GRAY,TRIM1#

 1
67913-9570203

KM51,YM60..SPX

MEDIUM GRAY,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-9570203

KM51,YM60..5F

MEDIUM GRAY,TRIM1#

 1
67913-95702B0

CM5#,6#,KM51,YM55,6#

LIGHT GRAY,TRIM1#

 1
67913-9570213

CM5#,6#,KM5#,YM55,6#

GRAY,TRIM1#

 1
67913-9570213

CM65..TS;CM5#,60,61,KM51,YM55,6#

GRAY,TRIM1#

 1
67913-9570203

KM51,YM60..SPX

MEDIUM GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-9570203

KM51,YM60..5F

MEDIUM GRAY,TRIM1#

 1
67914-95702B0

CM5#,6#,KM51,YM55,6#

LIGHT GRAY,TRIM1#

 1
67914-9570203

KM51,YM60..SPX

MEDIUM GRAY,TRIM1#

 1
67914-9570213

CM5#,6#,KM5#,YM55,6#

GRAY,TRIM1#

 1
67914-9570213

CM65..TS;CM5#,60,61,KM51,YM55,6#

GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-9570203

KM51,YM60..5F

MEDIUM GRAY,TRIM1#

 1
67914-95702B0

CM5#,6#,KM51,YM55,6#

LIGHT GRAY,TRIM1#

 1
67914-9570203

KM51,YM60..SPX

MEDIUM GRAY,TRIM1#

 1
67914-9570213

CM5#,6#,KM5#,YM55,6#

GRAY,TRIM1#

 1
67914-9570213

CM65..TS;CM5#,60,61,KM51,YM55,6#

GRAY,TRIM1#

 1
Common parts
90189-05055
90333-25001
90530-06001
90530-18002
90530-18003
93560-55016
