KM51-TYMNS (1986)
Toyota Lite/Townace Truck

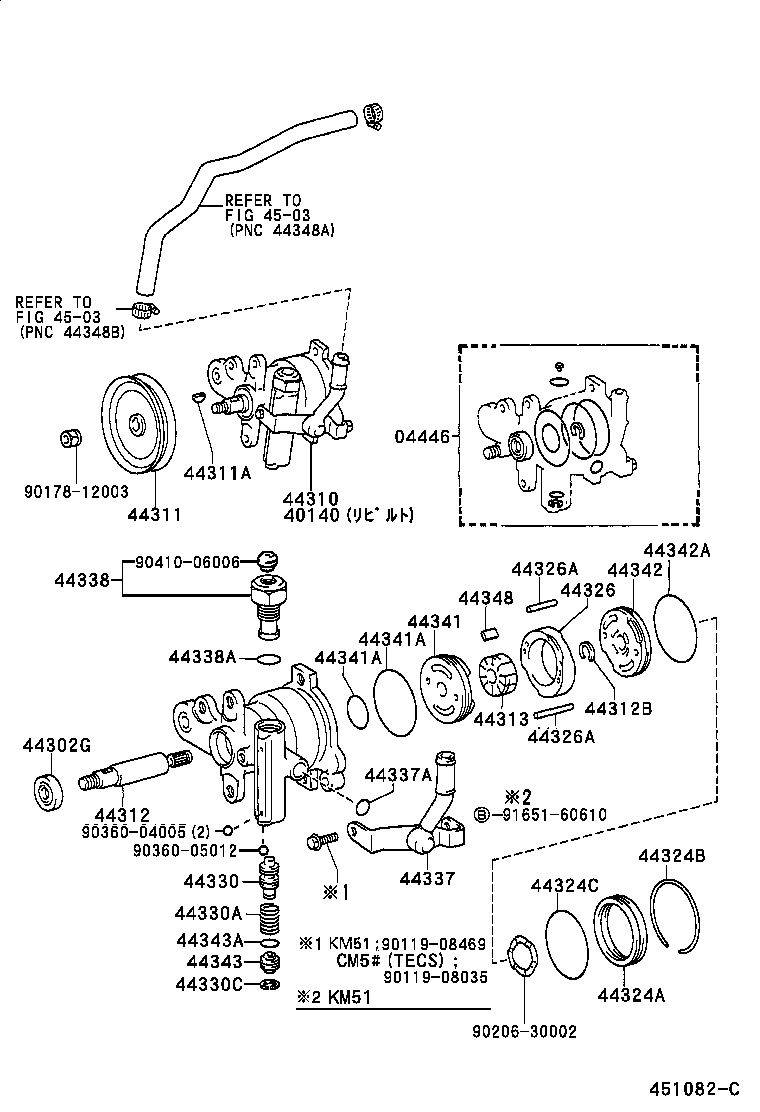

ILLUST NO. 1 OF 2(8610- )KM51 ; (9110- )CM51,55,65
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-27010 |
KM51..SPX |
1 | ||
| 04446-27011 |
KM51..SJL,T1;CM55..4HC..IV;KM51..JL..CBU |
1 | ||
| 40140 - PUMP ASSY,VANE REBUILT | ||||
| 40140-27032 |
KM51 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
KM51..JL..CBU;KM51..JL..4H..IV;KM51..(SJL,T1)..5H ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 90311-18007 |
KM51..(SJL,T1)..(3HC,4H,5F) TECS(ｲｾﾂ ﾄｸｿｳｼﾔ) |
1 | ||
| 90311-18007 |
CM55..IV;CM51..SJL;KM51..3HC,5F;CM51..JL..5H..IV TECS(ｲｾﾂ ﾄｸｿｳｼﾔ) |
1 | ||
| 90311-18007 |
KM51..3HC,5F;CM51,55..5H..IV TECS(ｲｾﾂ ﾄｸｿｳｼﾔ) |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-27031 |
KM51..SPX |
1 | ||
| 44320-27032 |
KM51..SPX |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-12060 |
KM51..3HC..SPX;KM51..3FC,5F,5H |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
KM51,YM55,6# |
1 | ||
| 90280-05008 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 90280-05008 |
KM51,YM55,6#;CM51,55,65..IV |
1 | ||
| 90280-05008 |
KM51,YM55,6#;CM51,55..5H..IV |
1 | ||
| 90280-05008 |
CM55..IV;CM51..SJL;KM51,YM55,6#;CM51..JL..5H..IV |
1 | ||
| 90280-05008 |
CM55..4HC;CM51,55..IV;KM51,YM55,6# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
KM51..SPX |
1 | ||
| 44312-12030 |
KM51..JL..CBU;KM51..JL..4H..IV;KM51..(SJL,T1)..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
KM51..SPX |
1 | ||
| 90520-10003 |
KM51..JL..CBU;KM51..JL..4H..IV;KM51..(SJL,T1)..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12020 |
KM51 ﾏｰｸ 1,MARK 1 |
1 | ||
| 44313-12050 |
KM51 ﾏｰｸ 4,MARK 4 |
1 | ||
| 44313-12040 |
KM51 ﾏｰｸ 3,MARK 3 |
1 | ||
| 44313-12010 |
KM51 ﾏｰｸ無し,NO MARK |
1 | ||
| 44313-12030 |
KM51 ﾏｰｸ 2,MARK 2 |
1 | ||
| 44313-22060 |
KM51..SPX ﾏｰｸ 2 |
1 | ||
| 44313-22050 |
KM51..SPX ﾏｰｸ 1 |
1 | ||
| 44313-22080 |
KM51..SPX;CM52,6#,YM6# ﾏｰｸ 4 |
1 | ||
| 44313-22070 |
CM65..TS;CM52,60,61,YM6#;KM51,YM55..(3FC,4HC,5F)..CBU ﾏｰｸ 3 |
1 | ||
| 44313-22050 |
CM65..TS;CM52,60,61,YM6#;KM51,YM55..(3FC,4HC,5F)..CBU ﾏｰｸ 1 |
1 | ||
| 44313-22070 |
KM51..SPX;CM52,6#,YM6# ﾏｰｸ 3 |
1 | ||
| 44313-22050 |
KM51..SPX;CM52,6#,YM6# ﾏｰｸ 1 |
1 | ||
| 44313-22040 |
KM51..SPX;CM52,6#,YM6# ﾏｰｸ無し |
1 | ||
| 44313-22080 |
CM65..TS;CM52,60,61,YM6#;KM51,YM55..(3FC,4HC,5F)..CBU ﾏｰｸ 4 |
1 | ||
| 44313-22080 |
KM51..SPX ﾏｰｸ 4 |
1 | ||
| 44313-22060 |
KM51..SPX;CM52,6#,YM6# ﾏｰｸ 2 |
1 | ||
| 44313-22070 |
KM51..SPX ﾏｰｸ 3 |
1 | ||
| 44313-22040 |
CM52,6#,YM6#;CM55..4HC..IV;KM51,YM55..(3FC,4HC,5F)..CBU ﾏｰｸ無し |
1 | ||
| 44313-22040 |
KM51..SPX ﾏｰｸ無し |
1 | ||
| 44313-22060 |
CM52,6#,YM6#;CM55..4HC..IV;KM51,YM55..(3FC,4HC,5F)..CBU ﾏｰｸ 2 |
1 | ||
| 44313-22060 |
CM65..TS;CM52,60,61,YM6#;KM51,YM55..(3FC,4HC,5F)..CBU ﾏｰｸ 2 |
1 | ||
| 44313-22080 |
CM52,6#,YM6#;CM55..4HC..IV;KM51,YM55..(3FC,4HC,5F)..CBU ﾏｰｸ 4 |
1 | ||
| 44313-22050 |
CM52,6#,YM6#;CM55..4HC..IV;KM51,YM55..(3FC,4HC,5F)..CBU ﾏｰｸ 1 |
1 | ||
| 44313-22040 |
CM65..TS;CM52,60,61,YM6#;KM51,YM55..(3FC,4HC,5F)..CBU ﾏｰｸ無し |
1 | ||
| 44313-22070 |
CM52,6#,YM6#;CM55..4HC..IV;KM51,YM55..(3FC,4HC,5F)..CBU ﾏｰｸ 3 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
KM51..(SJL,T1)..(3FC,3HC,4H,5F) |
1 | ||
| 44324-12031 |
CM55..IV;CM51..SJL;KM51..3FC,3HC,5F;CM51..JL..5H..IV |
1 | ||
| 44324-12031 |
CM51,55..IV;KM51..3FC,3HC,5F |
1 | ||
| 44324-12031 |
CM51,55..IV;CM55,KM51..3FC,3HC,4HC,5F |
1 | ||
| 44324-12031 |
CM51,55..5H..IV;KM51..3FC,3HC,5F |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
KM51..(SJL,T1)..(3FC,3HC,4H,5F) |
1 | ||
| 90521-62002 |
CM51,55..5H..IV;KM51..3FC,3HC,5F |
1 | ||
| 90521-62002 |
CM55..IV;CM51..SJL;KM51..3FC,3HC,5F;CM51..JL..5H..IV |
1 | ||
| 90521-62002 |
CM51,55..IV;KM51..3FC,3HC,5F |
1 | ||
| 90521-62002 |
CM51,55..IV;CM55,KM51..3FC,3HC,4HC,5F |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-52001 |
KM51..(SJL,T1)..(3FC,3HC,4H,5F) |
1 | ||
| 90301-52001 |
CM55..IV;CM51..SJL;KM51..3FC,3HC,5F;CM51..JL..5H..IV |
1 | ||
| 90301-52001 |
CM51,55..IV;CM55,KM51..3FC,3HC,4HC,5F |
1 | ||
| 90301-53006 |
CM51..IV;KM51..SJL,T1;CM55..4HC..IV;KM51..JL..CBU |
1 | ||
| 90301-53006 |
CM51..IV;CM55..4HC;KM51..SJL,T1;KM51..JL..CBU |
1 | ||
| 90301-52001 |
CM51,55..5H..IV;KM51..3FC,3HC,5F |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12150 |
KM51..(SJL,T1)..(3HC,4H,5F) ﾏｰｸ 4,MARK 4 |
1 | ||
| 44325-12120 |
KM51..(SJL,T1)..(3HC,4H,5F) ﾏｰｸ 1,MARK 1 |
1 | ||
| 44325-12110 |
KM51..(SJL,T1)..(3HC,4H,5F) ﾏｰｸ無し,NO MARK |
1 | ||
| 44325-12140 |
KM51..(SJL,T1)..(3HC,4H,5F) ﾏｰｸ 3,MARK 3 |
1 | ||
| 44325-12130 |
KM51..(SJL,T1)..(3HC,4H,5F) ﾏｰｸ 2,MARK 2 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
KM51..JL..CBU;KM51..JL..4H..IV;KM51..(SJL,T1)..5H 長さ=43,外径=4.0,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 90250-04047 |
KM51..(SJL,T1)..(3HC,4H,5F) 長さ=28,外径=4.0,L=28 |
1 | ||
| 90250-04047 |
KM51..JL..CBU;KM51..JL..4H..IV;KM51..(SJL,T1)..5H 長さ=28,外径=4.0,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 90250-04049 |
KM51..(SJL,T1)..(3HC,4H,5F) 長さ=43,外径=4.0,L=43 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
KM51..JL..CBU;KM51..JL..4H..IV;KM51..(SJL,T1)..5H 長さ=43,外径=4.0,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 90250-04047 |
KM51..(SJL,T1)..(3HC,4H,5F) 長さ=28,外径=4.0,L=28 |
1 | ||
| 90250-04047 |
KM51..JL..CBU;KM51..JL..4H..IV;KM51..(SJL,T1)..5H 長さ=28,外径=4.0,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 90250-04049 |
KM51..(SJL,T1)..(3HC,4H,5F) 長さ=43,外径=4.0,L=43 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-14050 |
KM51 ﾏｰｸ E,MARK E |
1 | ||
| 44330-14020 |
KM51 ﾏｰｸ B,MARK B |
1 | ||
| 44330-14030 |
KM51 ﾏｰｸ C,MARK C |
1 | ||
| 44330-14040 |
KM51 ﾏｰｸ D,MARK D |
1 | ||
| 44330-14060 |
KM51 ﾏｰｸ F,MARK F |
1 | ||
| 44330-14010 |
KM51 ﾏｰｸ A,MARK A |
1 | ||
| 44330-12171 |
CM50,51;YM55..MTM;CM55..CBU;CM55..5H..IV ﾏｰｸ E,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44330-12141 |
CM50,51;YM55..MTM;CM55..CBU;CM55..5H..IV ﾏｰｸ B,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44330-12131 |
CM50,51;YM55..MTM;CM55..CBU;CM55..5H..IV ﾏｰｸ A,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44330-12181 |
CM50,51;YM55..MTM;CM55..CBU;CM55..5H..IV ﾏｰｸ F,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44330-12151 |
CM50,51;YM55..MTM;CM55..CBU;CM55..5H..IV ﾏｰｸ C,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44330-12161 |
CM50,51;YM55..MTM;CM55..CBU;CM55..5H..IV ﾏｰｸ D,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
CM52,6#,YM6#;CM55..4HC..IV;KM51,YM55..(3FC,4HC,5F)..CBU |
1 | ||
| 90501-12103 |
CM51..4HC;KM51..SPX;CM50,55,6#,YM60..JL,JLC,SJL,T1 |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
CM65..TS;CM52,60,61,YM6#;KM51,YM55..(3FC,3HC,4HC,5F)..CBU |
1 | ||
| 96151-01700 |
CM52,6#,YM6#;KM51,YM55..(SJL,T1)..(3FC,3HC,4H,5F) |
1 | ||
| 96151-01700 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-27021 |
KM51..3HC..SPX;KM51..3FC,5F,5H |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-12003 |
KM51..3HC..SPX;KM51..3FC,5F,5H |
1 | ||
| 90301-11016 |
KM51..SJL,T1;CM55..4HC..IV;KM51..JL..CBU |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44308-12042 |
KM51..SPX |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
KM51..SPX 内径=19.5,外径=22.5 |
1 | ||
| 90301-19003 |
KM51..JL..CBU;KM51..JL..4H..IV;KM51..(SJL,T1)..DX 内径=19.5,外径=22.5,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 90301-19013 |
KM51..SJL,T1;CM55..4HC..IV;KM51..JL..CBU 内径=19.2,外径=22.3 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-12030 |
KM51..SPX |
1 | ||
| 44341-32010 |
CM55..IV;KM51..SPX;CM51..SJL;CM51..JL..5H..IV |
1 | ||
| 44341-32010 |
KM51..SPX |
1 | ||
| 44341-32010 |
KM51..SPX;CM51,55..IV |
1 | ||
| 44341-32010 |
CM51,55..IV;CM55,KM51..3FC,4HC,5F |
1 | ||
| 44341-32010 |
KM51..SPX;CM51,55..5H..IV |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-25001 |
KM51..SPX 内側 |
1 | ||
| 90301-52001 |
CM55..IV;KM51..SPX;CM51..SJL;CM51..JL..5H..IV 外側 |
1 | ||
| 90301-52001 |
KM51..SPX 外側 |
1 | ||
| 90301-25001 |
KM51..SPX;CM51,55..IV 内側 |
1 | ||
| 90301-25001 |
KM51..SPX;CM51,55..5H..IV 内側 |
1 | ||
| 90301-25001 |
CM51,55..IV;CM55,KM51..3FC,4HC,5F 内側 |
1 | ||
| 90301-52001 |
KM51..SPX;CM51,55..5H..IV 外側 |
1 | ||
| 90301-25001 |
CM55..IV;KM51..SPX;CM51..SJL;CM51..JL..5H..IV 内側 |
1 | ||
| 90301-52001 |
CM51,55..IV;CM55,KM51..3FC,4HC,5F 外側 |
1 | ||
| 90301-52001 |
KM51..SPX;CM51,55..IV 外側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-25001 |
KM51..SPX 内側 |
1 | ||
| 90301-52001 |
CM55..IV;KM51..SPX;CM51..SJL;CM51..JL..5H..IV 外側 |
1 | ||
| 90301-52001 |
KM51..SPX 外側 |
1 | ||
| 90301-25001 |
KM51..SPX;CM51,55..IV 内側 |
1 | ||
| 90301-25001 |
KM51..SPX;CM51,55..5H..IV 内側 |
1 | ||
| 90301-25001 |
CM51,55..IV;CM55,KM51..3FC,4HC,5F 内側 |
1 | ||
| 90301-52001 |
KM51..SPX;CM51,55..5H..IV 外側 |
1 | ||
| 90301-25001 |
CM55..IV;KM51..SPX;CM51..SJL;CM51..JL..5H..IV 内側 |
1 | ||
| 90301-52001 |
CM51,55..IV;CM55,KM51..3FC,4HC,5F 外側 |
1 | ||
| 90301-52001 |
KM51..SPX;CM51,55..IV 外側 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-12021 |
KM51..SPX |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
KM51..SPX |
1 | ||
| 90301-52001 |
KM51..JL..CBU;KM51..JL..4H..IV;KM51..(SJL,T1)..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12010 |
KM51..JL..CBU;KM51..JL..4H..IV;KM51..(SJL,T1)..5H ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 44343-12010 |
KM51..(SJL,T1)..(3FC,3HC,4H,5F) |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
CM65..TS;CM52,60,61,YM6#;KM51,YM55..(3FC,3HC,4HC,5F)..CBU |
1 | ||
| 96711-19014 |
CM52,6#,YM6#;KM51,YM55..(SJL,T1)..(3FC,3HC,4H,5F) |
1 | ||
| 96711-19014 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44348 - PLATE, VANE PUMP | ||||
| 44345-12020 |
CM5#,6#,KM51,YM55,60 長さ=14.995,ROTOR MARK 1 |
1 | ||
| 44345-12040 |
CM5#,6#,KM51,YM55,60 長さ=14.991,ROTOR MARK 3 |
1 | ||
| 44345-12050 |
CM5#,6#,KM51,YM55,60 長さ=14.989,ROTOR MARK 4 |
1 | ||
| 44345-12030 |
KM51..SPX;CM52,6#,YM6# 長さ=14.993 |
10 | ||
| 44345-12010 |
CM5#,6#,KM51,YM55,60 長さ=14.997,ROTOR NO MARK |
1 | ||
| 44345-12030 |
CM65..TS;CM52,60,61,YM6#;KM51,YM55..(3FC,4HC,5F)..CBU 長さ=14.993 |
10 | ||
| 44345-12010 |
KM51..SPX;CM52,6#,YM6# 長さ=14.997 |
10 | ||
| 44345-12040 |
KM51..SPX;CM52,6#,YM6# 長さ=14.991 |
10 | ||
| 44345-12010 |
CM65..TS;CM52,60,61,YM6#;KM51,YM55..(3FC,4HC,5F)..CBU 長さ=14.997 |
10 | ||
| 44345-12020 |
CM65..TS;CM52,60,61,YM6#;KM51,YM55..(3FC,4HC,5F)..CBU 長さ=14.995 |
10 | ||
| 44345-12030 |
CM5#,6#,KM51,YM55,60 長さ=14.993,ROTOR MARK 2 |
1 | ||
| 44345-12050 |
KM51..SPX;CM52,6#,YM6# 長さ=14.989 |
10 | ||
| 44345-12050 |
CM65..TS;CM52,60,61,YM6#;KM51,YM55..(3FC,4HC,5F)..CBU 長さ=14.989 |
10 | ||
| 44345-12020 |
CM52,6#,YM6#;CM55..4HC..IV;KM51,YM55..(3FC,4HC,5F)..CBU 長さ=14.995 |
10 | ||
| 44345-12010 |
CM52,6#,YM6#;CM55..4HC..IV;KM51,YM55..(3FC,4HC,5F)..CBU 長さ=14.997 |
10 | ||
| 44345-12020 |
KM51..SPX;CM52,6#,YM6# 長さ=14.995 |
10 | ||
| 44345-12040 |
CM52,6#,YM6#;CM55..4HC..IV;KM51,YM55..(3FC,4HC,5F)..CBU 長さ=14.991 |
10 | ||
| 44345-12050 |
CM52,6#,YM6#;CM55..4HC..IV;KM51,YM55..(3FC,4HC,5F)..CBU 長さ=14.989 |
10 | ||
| 44345-12040 |
CM65..TS;CM52,60,61,YM6#;KM51,YM55..(3FC,4HC,5F)..CBU 長さ=14.991 |
10 | ||
| 44345-12030 |
CM52,6#,YM6#;CM55..4HC..IV;KM51,YM55..(3FC,4HC,5F)..CBU 長さ=14.993 |
10 | ||
| Common parts | ||||
| 90119-08035 | ||||
| 90119-08469 | ||||
| 90178-12003 | ||||
| 90206-30002 | ||||
| 90360-04005 | ||||
| 90360-05012 | ||||
| 90410-06006 | ||||
| 91651-60610 | ||||
| Linked diagrams | ||||
| 4503 | ||||

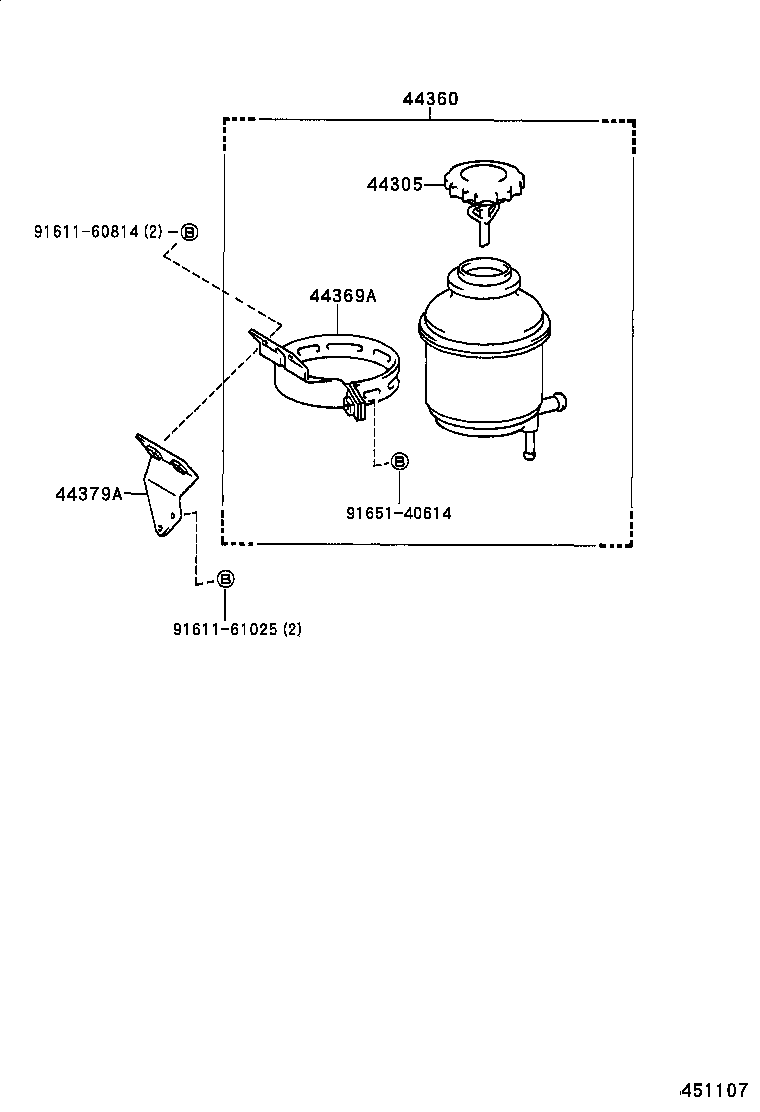

ILLUST NO. 2 OF 2(8610- )KM51,YM55,6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32010 |
YM55..SJL..MTM;CM50,51,55,YM60;KM51..(SJL,T1)..(3HC,4H,5F) |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-27020 |
YM6#;KM51..JL;KM51,YM55..(3FC,3HC,4HC,5F)..CBU |
1 | ||
| 44379A - BRACKET, OIL RESERVOIR, NO.2 | ||||
| 44369-27050 |
YM6#;YM55..CBU;KM51..SJL,T1;KM51..JL..CBU |
1 | ||
| 44369-27050 |
YM6#;KM51..SPX |
1 | ||
| 44369-27050 |
CM65..CBU;KM51,YM55,60 |
1 | ||
| 44369-27050 |
YM55,6#;KM51..SJL,T1;KM51..JL..CBU |
1 | ||
| 44369-27050 |
KM51..JL..CBU;KM51,YM55..(SJL,SJLC,T1)..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 91611-61025 | ||||
| 91651-40614 | ||||

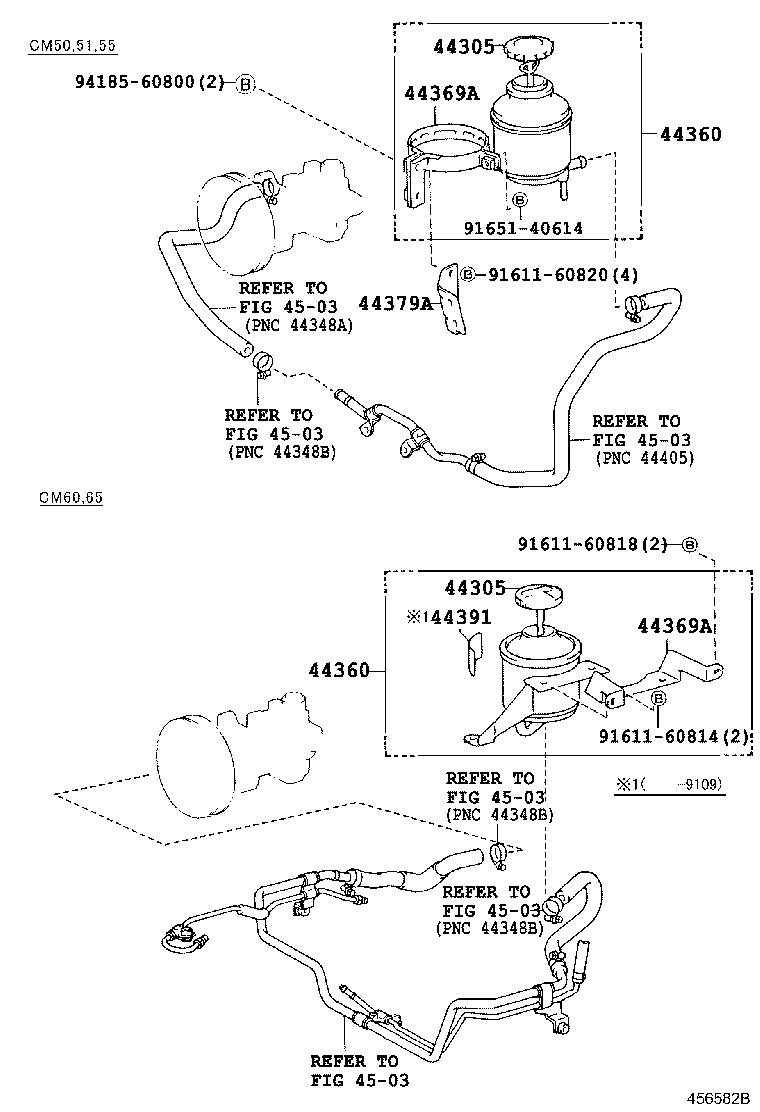

ILLUST NO. 2 OF 2(8610- )CM50,51,55,60,65
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32010 |
YM55..SJL..MTM;CM50,51,55,YM60;KM51..(SJL,T1)..(3HC,4H,5F) |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32010 |
YM55..SJL..MTM;CM50,51,55,YM60;KM51..(SJL,T1)..(3HC,4H,5F) |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-27020 |
YM6#;KM51..JL;KM51,YM55..(3FC,3HC,4HC,5F)..CBU |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-27020 |
YM6#;KM51..JL;KM51,YM55..(3FC,3HC,4HC,5F)..CBU |
1 | ||
| 44379A - BRACKET, OIL RESERVOIR, NO.2 | ||||
| 44369-27050 |
YM6#;YM55..CBU;KM51..SJL,T1;KM51..JL..CBU |
1 | ||
| 44369-27050 |
YM6#;KM51..SPX |
1 | ||
| 44369-27050 |
CM65..CBU;KM51,YM55,60 |
1 | ||
| 44369-27050 |
YM55,6#;KM51..SJL,T1;KM51..JL..CBU |
1 | ||
| 44369-27050 |
KM51..JL..CBU;KM51,YM55..(SJL,SJLC,T1)..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 91611-60818 | ||||
| 91611-60820 | ||||
| 91651-40614 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 4503 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
