KM51-TYMNS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 5K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610-9008)4K,5K

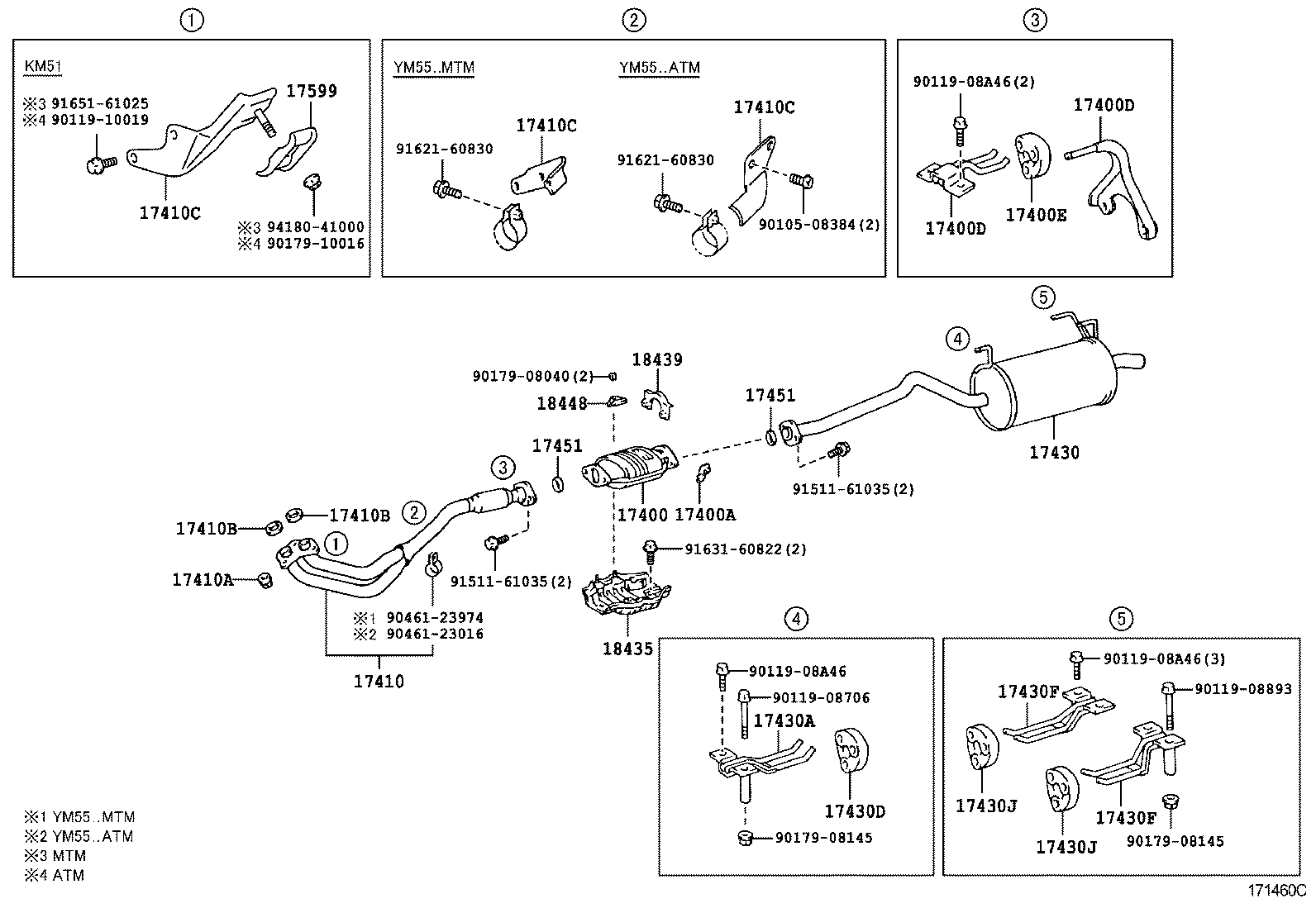

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17430 17430A 17430A 17430D 17430F 17430J 17430S 17430S 17430V 17430V 17451 9011908086 9011908086 9011908086 9011908086 9011908706 9011910019 9017908145 9017910016 9046123974 9165160830 9165161025 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-13330

4K,5K..KM5#..SJL

 1
17401-13100

4K,5K..KM5#..JL,T1

 1
17410-13390

5K..KM51..SJL

 1
17401-13120

5K..KM51..JL,T1

 1
17410-13390

5K..KM51..SJL..MTM

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

5K,2Y..KM51,YM55,6#

 3
90179-10070

1C,2C,4K,5K..CM5#,6#,KM5#

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

1C,2C,4K,5K..CM5#,6#,KM5#

 1
90917-06037

5K..KM51

 2
90917-06069

5K..KM51

 2
90917-06006

5K..KM51

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-13220

5K..KM51

 1
17571-13160

4K,5K..KM5#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-13330

4K,5K..KM5#..SJL

 1
17430-13410

5K..KM51..JL,T1

 1
17430-13320

4K,5K..KM5#..JL,T1

 1
17430-13420

5K..KM51..SJL

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17576-13010

4K,5K..KM5#

PIPE SIDE

 1
17572-13060

4K,5K..KM5#

BODY SIDE

 1
17574-72031

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

 1
17572-13060

4K,5K..KM5#

BODY SIDE

 1
17574-72031

2C..CM65..TS;2C,5K,2Y..CM51,55,60,KM51,YM55,6#

 1
17576-13010

4K,5K..KM5#

PIPE SIDE

 1
17574-72031

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17576-13010

4K,5K..KM5#

PIPE SIDE

 1
17572-13060

4K,5K..KM5#

BODY SIDE

 1
17574-72031

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

 1
17572-13060

4K,5K..KM5#

BODY SIDE

 1
17574-72031

2C..CM65..TS;2C,5K,2Y..CM51,55,60,KM51,YM55,6#

 1
17576-13010

4K,5K..KM5#

PIPE SIDE

 1
17574-72031

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17566-64010

1C,2C,4K,5K,2Y..CM50,51,55,60,65,KM5#,YM55,6#

 1
17566-64010

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

 1
17566-64010

2C..CM65..TS;2C,5K,2Y..CM51,55,60,KM51,YM55,6#

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17573-64040

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

左側

 1
17574-13040

4K,5K..KM5#

 1
17573-64040

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

左側

 1
17575-64020

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

右側

 1
17573-64040

2C..CM65..TS;2C,5K,2Y..CM51,55,60,KM51,YM55,6#

左側

 1
17575-64020

2C..CM65..TS;2C,5K,2Y..CM51,55,60,KM51,YM55,6#

右側

 1
17575-64020

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

右側

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17566-64010

4K,5K..KM5#

 1
17566-64010

2C..CM65..TS;2C,5K,2Y..CM51,55,60,KM51,YM55,6#

 2
17566-64010

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

 2
17566-64010

2C,5K,2Y..CM51,55,60,65,KM51,YM55,6#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-13070

4K,5K..KM5#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-13070

4K,5K..KM5#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17566-64010

4K,5K..KM5#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17566-64010

4K,5K..KM5#

 1
17451 - GASKET, EXHAUST PIPE
90917-06020

5K,2Y..KM51,YM55

 2
90917-06004

1C,2C,4K,5K..CM5#,6#,KM5#

 1
90917-06044

5K,2Y..KM51,YM55

 2
Common parts
90119-08086
90119-08706
90119-10019
90179-08145
90179-10016
90461-23974
91651-60830
91651-61025
94180-41000

(8610- )2Y..YM55 ; (9008- )5K
