KM51-TYHNS (1989)
Toyota Lite/Townace Truck
Production
Oct 1989
-
Jun 1999
Engine
5K
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

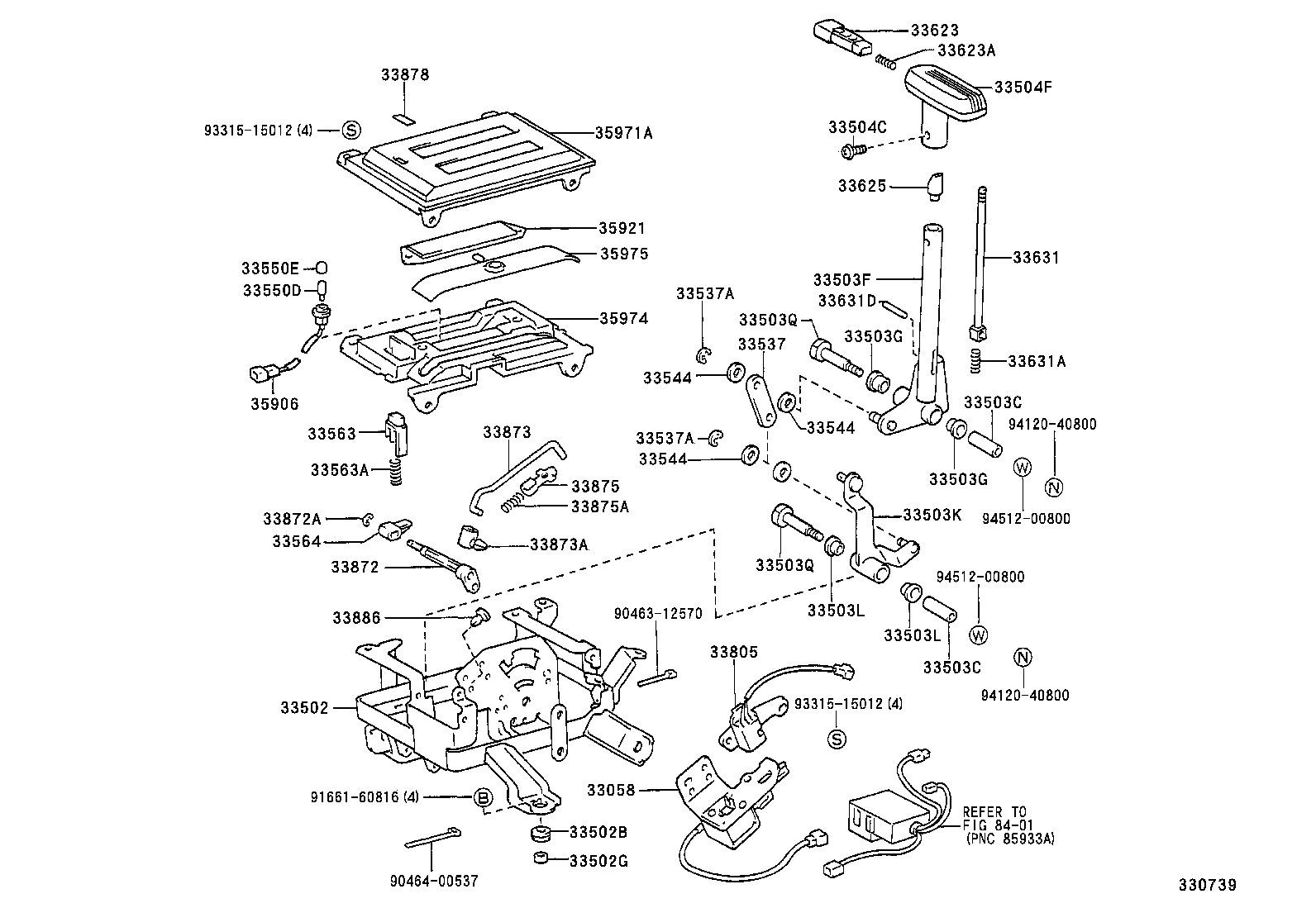

ILLUST NO. 1 OF 2(8910- )3FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-27010 |
KM51..3FC |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-27040 |
KM51..3FC |
1 | ||
| 33502B - GROMMET (FOR SHIFT LEVER PLATE) | ||||
| 90480-13012 |
KM51..3FC |
4 | ||
| 33502G - COLLAR (FOR SHIFT LEVER PLATE) | ||||
| 90387-09011 |
KM51..3FC |
4 | ||
| 33503C - COLLAR(FOR SHIFT LEVER SUB-ASSY) | ||||
| 90387-08068 |
KM51..3FC |
2 | ||
| 33503C - COLLAR(FOR SHIFT LEVER SUB-ASSY) | ||||
| 90387-08068 |
KM51..3FC |
2 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-27080 |
KM51..3FC |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90385-11003 |
KM51..3FC |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90385-11003 |
KM51..3FC |
2 | ||
| 33503K - LEVER SUB-ASSY, SHIFT, NO.2 | ||||
| 33503-27060 |
KM51..3FC |
1 | ||
| 33503L - BUSH(FOR SHIFT LEVER NO.2) | ||||
| 90385-11006 |
KM51..3FC |
2 | ||
| 33503L - BUSH(FOR SHIFT LEVER NO.2) | ||||
| 90385-11006 |
KM51..3FC |
2 | ||
| 33503Q - BOLT(FOR SHIFT LEVER SUB-ASSY) | ||||
| 90101-08108 |
KM51..3FC |
2 | ||
| 33503Q - BOLT(FOR SHIFT LEVER SUB-ASSY) | ||||
| 90101-08108 |
KM51..3FC |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
KM51..3FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-10020B0 |
KM51..3FC GRAY,TRIM1# |
1 | ||
| 33542-1002013 |
KM51..3FC GRAY,TRIM1# |
1 | ||
| 33537 - PLATE, CONTROL LEVER | ||||
| 33537-27010 |
KM51..3FC |
1 | ||
| 33537A - RING, E (FOR CONTROL LEVER PLATE) | ||||
| 90523-06019 |
KM51..3FC |
2 | ||
| 33537A - RING, E (FOR CONTROL LEVER PLATE) | ||||
| 90523-06019 |
KM51..3FC |
2 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-27010 |
KM51..3FC |
4 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-27010 |
KM51..3FC |
4 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-27010 |
KM51..3FC |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
KM51..3FC 12V 3.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09001 |
KM51..3FC |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-27010 |
KM51..3FC |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-05025 |
KM51..3FC |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-27010 |
KM51..3FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-1604003 |
KM51..3FC GRAY,TRIM1# |
1 | ||
| 33623-16040B0 |
KM51..3FC GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
KM51..3FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22020 |
KM51..3FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-14040 |
KM51..3FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
KM51..3FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
KM51..3FC |
1 | ||
| 33805 - PLATE SUB-ASSY, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33805-27010 |
KM51..3FC |
1 | ||
| 33872 - LINK, SHIFT LOCK RELEASE, NO.2 | ||||
| 33872-27010 |
KM51..3FC |
1 | ||
| 33872A - RING,SHAFT SNAP (FOR SHIFT LOCK RELEASE LINK) | ||||
| 90520-07002 |
KM51..3FC |
1 | ||
| 33873 - LINK, SHIFT LOCK RELEASE, NO.3 | ||||
| 33873-27010 |
KM51..3FC |
1 | ||
| 33873A - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20080 |
KM51..3FC |
1 | ||
| 33875 - GUIDE, SHIFT LOCK RELEASE LINK | ||||
| 33875-27010 |
KM51..3FC |
1 | ||
| 33875A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE LINK) | ||||
| 90501-05026 |
KM51..3FC |
1 | ||
| 33878 - LABEL, SHIFT LOCK INFORMATION, NO.2 | ||||
| 33878-27010 |
KM51..3FC |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-16010 |
KM51..3FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-32010 |
KM51..3FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-27011 |
KM51..3FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-27020 |
KM51..3FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-27020 |
KM51..3FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-27020 |
KM51..3FC |
1 | ||
| Common parts | ||||
| 90463-12570 | ||||
| 90464-00537 | ||||
| 91661-60816 | ||||
| 93315-15012 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

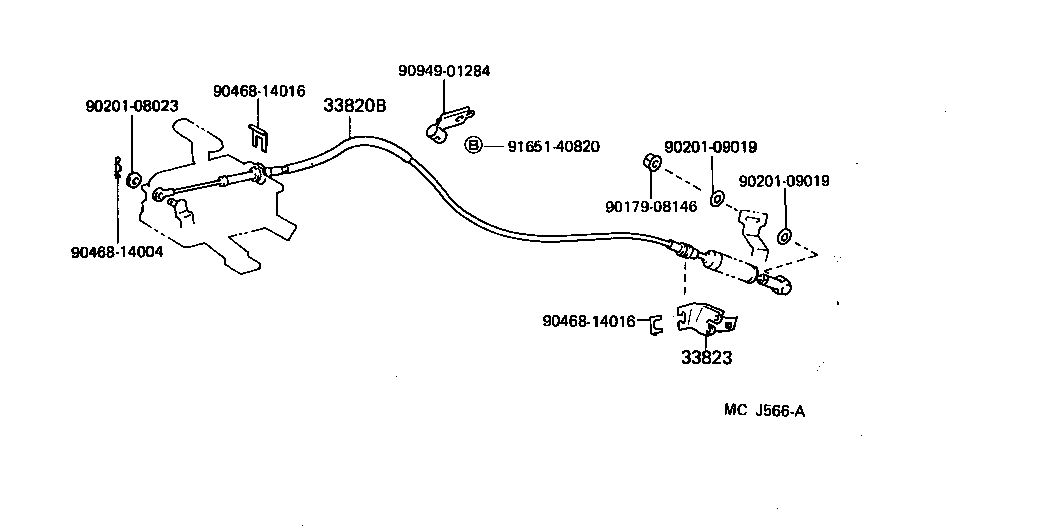

ILLUST NO. 2 OF 2(8910- )3FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-27110 |
KM51..3FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-27020 |
KM51..3FC |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90201-08023 | ||||
| 90201-09019 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01284 | ||||
| 91651-40820 | ||||
