KM51-TSMNS (1986)
Toyota Lite/Townace Truck
ILLUST NO. 1 OF 3(8610- )
ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-28020 |
CM5#,KM5#,YM55 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-28030 |
KM51..SPX |
1 | ||
| 45515-28030 |
CM5#,KM51,YM55 W/POWER STEERING |
1 | ||
| 45515-27050 |
KM51..SPX |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-27020 |
CM5#,KM51,YM55 W/POWER STEERING |
1 | ||
| 45517-27020 |
KM51..SPX |
1 | ||
| Common parts | ||||
| 90119-12084 | ||||
| 90119-12176 | ||||
| 91651-60820 | ||||

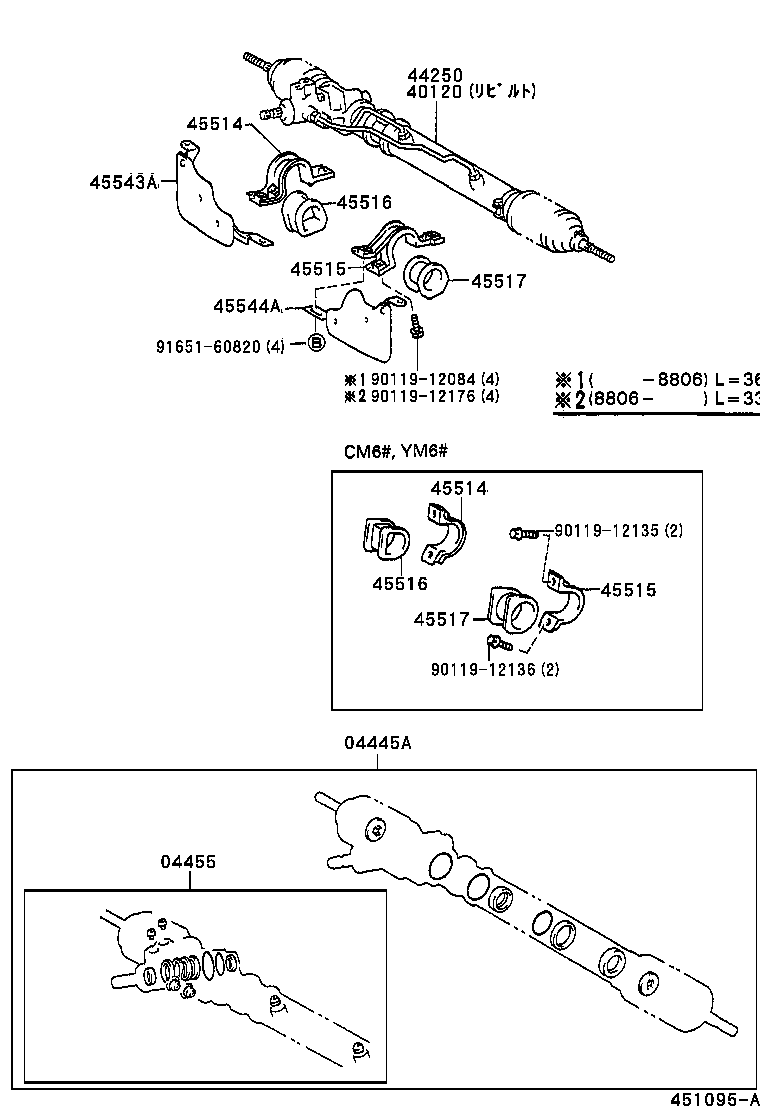

ILLUST NO. 1 OF 3(8610- )
ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-27020 |
KM51..SPX;CM60,65,YM6# |
1 | ||
| 04445-27010 |
CM5#,KM51,YM55 ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 04445-27010 |
CM5#,6#,KM51,YM55,60 ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-27010 |
CM50,51,55,KM51,YM55 ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 04455-27010 |
CM5#,6#,KM51,YM55,60 ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-27011 |
CM5#,KM51,YM55 TOYODA KOKI |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-27011 |
KM51..SPX |
1 | ||
| 44250-27050 |
KM51..SPX |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-28020 |
CM5#,KM5#,YM55 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-28020 |
CM5#,KM5#,YM55 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-28030 |
KM51..SPX |
1 | ||
| 45515-28030 |
CM5#,KM51,YM55 W/POWER STEERING |
1 | ||
| 45515-27050 |
KM51..SPX |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-28030 |
KM51..SPX |
1 | ||
| 45515-28030 |
CM5#,KM51,YM55 W/POWER STEERING |
1 | ||
| 45515-27050 |
KM51..SPX |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-27020 |
CM5#,KM51,YM55 W/POWER STEERING |
1 | ||
| 45517-27020 |
KM51..SPX |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-27020 |
CM5#,KM51,YM55 W/POWER STEERING |
1 | ||
| 45517-27020 |
KM51..SPX |
1 | ||
| Common parts | ||||
| 90119-12084 | ||||
| 90119-12135 | ||||
| 90119-12136 | ||||
| 90119-12176 | ||||
| 91651-60820 | ||||

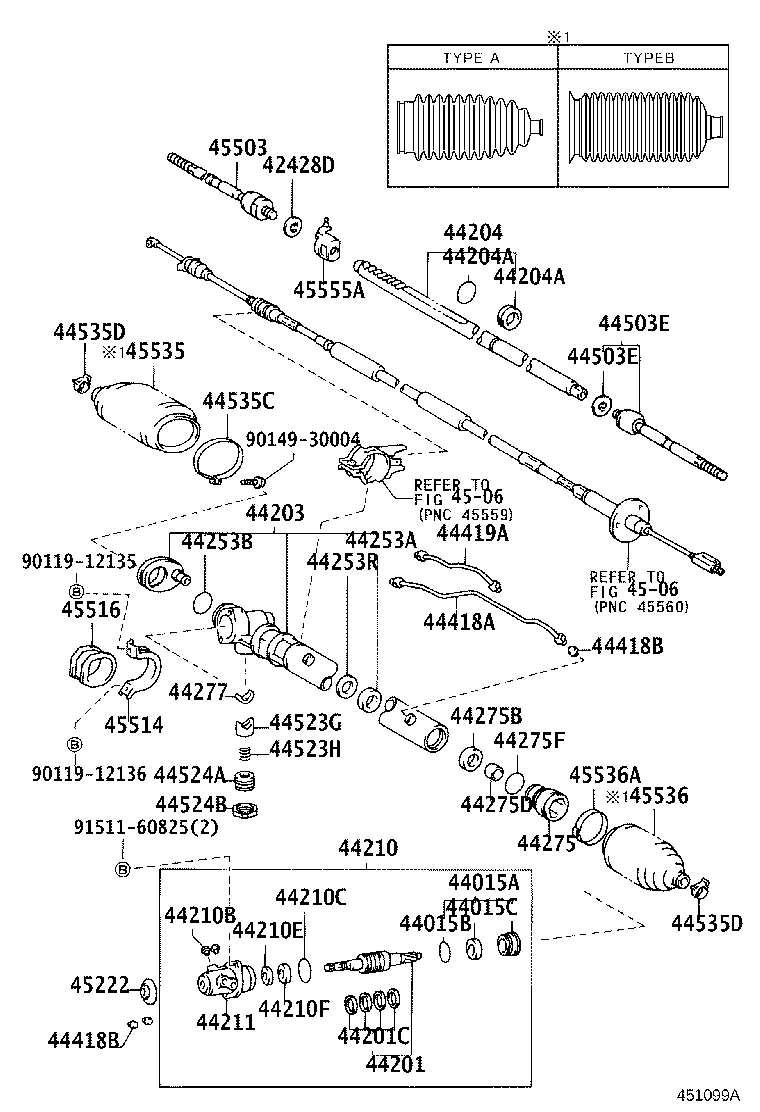

ILLUST NO. 2 OF 3(8610-8807)
ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-20010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44015-22020 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90301-43002 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25004 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90310-25004 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 90310-25020 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-27050 |
KM51..SPX |
1 | ||
| 44201-27040 |
KM51..SPX |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
CM5#,6#,KM51,YM55,60 |
4 | ||
| 90562-33007 |
KM51..SPX;CM52,6#,YM6# |
4 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-27010 |
KM51..SPX |
1 | ||
| 44203-27030 |
KM51..SPX |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-28010 |
KM51..SPX |
1 | ||
| 44204-28010 |
CM5#,KM51,YM55 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-39003 |
CM5#,6#,KM51,YM55,60 内側 |
1 | ||
| 90301-39003 |
KM51..SPX;CM52,6#,YM6# 内側 |
1 | ||
| 90562-43001 |
KM51..SPX;CM52,6#,YM6# 外側 |
1 | ||
| 90562-43001 |
CM5#,6#,KM51,YM55,60 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-39003 |
CM5#,6#,KM51,YM55,60 内側 |
1 | ||
| 90301-39003 |
KM51..SPX;CM52,6#,YM6# 内側 |
1 | ||
| 90562-43001 |
KM51..SPX;CM52,6#,YM6# 外側 |
1 | ||
| 90562-43001 |
CM5#,6#,KM51,YM55,60 外側 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-27050 |
KM51..SPX |
1 | ||
| 44210-27040 |
KM51..SPX |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
KM51..SPX;CM52,6#,YM6# |
2 | ||
| 90410-06005 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90301-51001 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 90311-19002 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90363-19003 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-22010 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44211-22010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-32010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 45222-32010 |
KM51..SPX;CM60,65,YM6# |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99132 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 90310-30009 |
CM6#,YM60;KM51..SPX |
1 | ||
| 90310-30011 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-28010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-28020 |
KM51..SPX;CM60,65,YM6# |
1 | ||
| 44275-28010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44275-26030 |
KM51..SPX;CM60,65,YM6# |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-30009 |
CM6#,YM60;KM51..SPX |
1 | ||
| 90310-30011 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90310-30004 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-28010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44277-28010 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-28050 |
KM51..SPX |
1 | ||
| 44418-28010 |
CM5#,KM51,YM55 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-28050 |
KM51..SPX |
1 | ||
| 44418-28010 |
CM5#,KM51,YM55 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
KM51..SPX;CM52,6#,YM6# CONTROL VALVE SIDE |
2 | ||
| 90410-04002 |
KM51..SPX;CM60,65,YM6# RACK HOUSING SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-28010 |
CM5#,KM51,YM55 |
1 | ||
| 44419-28011 |
KM51..SPX |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29225 |
KM51..SPX |
2 | ||
| 45503-29125 |
KM51..SPX |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29225 |
KM51..SPX |
2 | ||
| 45503-29125 |
KM51..SPX |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14005 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 90214-14005 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14005 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 90214-14005 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-28010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 45523-28010 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90501-23024 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 45524-16010 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 90179-36002 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-27030 |
CM50,51,55,6#,KM51,YM55,6# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 45535-28010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-55011 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 90461-12298 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 90460-64002 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-55011 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 90461-12298 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 90460-64002 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-19012 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 90467-18003 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 90467-15017 |
KM51..SPX;CM52,6#,YM6# |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-19012 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 90467-18003 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 90467-15017 |
KM51..SPX;CM52,6#,YM6# |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-28010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 45535-27030 |
CM50,51,55,60,65,KM51,YM55,6# |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91511-60825 | ||||

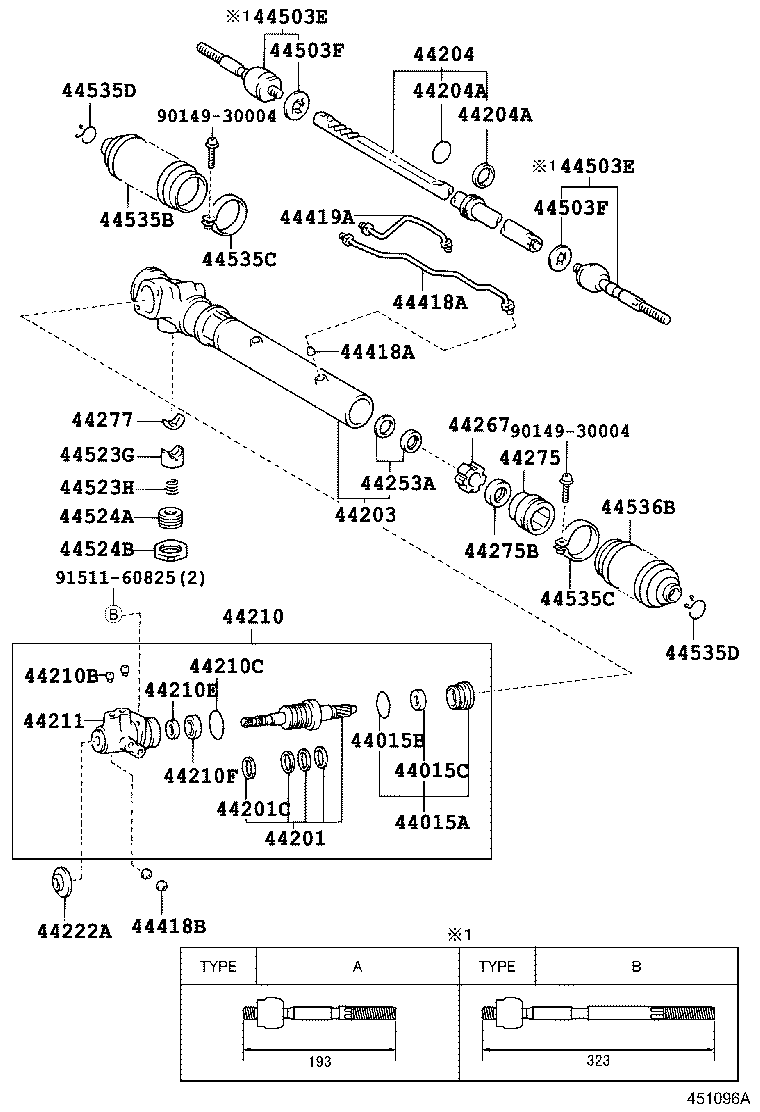

ILLUST NO. 2 OF 3(8807- )
ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-20010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44015-22020 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90301-43002 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25004 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90310-25004 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 90310-25020 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-27050 |
KM51..SPX |
1 | ||
| 44201-27040 |
KM51..SPX |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
CM5#,6#,KM51,YM55,60 |
4 | ||
| 90562-33007 |
KM51..SPX;CM52,6#,YM6# |
4 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-27010 |
KM51..SPX |
1 | ||
| 44203-27030 |
KM51..SPX |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-28010 |
KM51..SPX |
1 | ||
| 44204-28010 |
CM5#,KM51,YM55 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-39003 |
CM5#,6#,KM51,YM55,60 内側 |
1 | ||
| 90301-39003 |
KM51..SPX;CM52,6#,YM6# 内側 |
1 | ||
| 90562-43001 |
KM51..SPX;CM52,6#,YM6# 外側 |
1 | ||
| 90562-43001 |
CM5#,6#,KM51,YM55,60 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-39003 |
CM5#,6#,KM51,YM55,60 内側 |
1 | ||
| 90301-39003 |
KM51..SPX;CM52,6#,YM6# 内側 |
1 | ||
| 90562-43001 |
KM51..SPX;CM52,6#,YM6# 外側 |
1 | ||
| 90562-43001 |
CM5#,6#,KM51,YM55,60 外側 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-27050 |
KM51..SPX |
1 | ||
| 44210-27040 |
KM51..SPX |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
KM51..SPX;CM52,6#,YM6# |
2 | ||
| 90410-06005 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90301-51001 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 90311-19002 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90363-19003 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-22010 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44211-22010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-32010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 45222-32010 |
KM51..SPX;CM60,65,YM6# |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99132 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 90310-30009 |
CM6#,YM60;KM51..SPX |
1 | ||
| 90310-30011 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44253R - SPACER(FOR POWER STEERING RACK HOUSING) | ||||
| 90560-30007 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-28020 |
KM51..SPX;CM60,65,YM6# |
1 | ||
| 44275-28010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44275-26030 |
KM51..SPX;CM60,65,YM6# |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-30009 |
CM6#,YM60;KM51..SPX |
1 | ||
| 90310-30011 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90310-30004 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44275D - BUSH(FOR CYLINDER END STOPPER) | ||||
| 90386-30001 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44275F - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-41004 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-28010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44277-28010 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-28050 |
KM51..SPX |
1 | ||
| 44418-28010 |
CM5#,KM51,YM55 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
KM51..SPX;CM52,6#,YM6# CONTROL VALVE SIDE |
2 | ||
| 90410-04002 |
KM51..SPX;CM60,65,YM6# RACK HOUSING SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
KM51..SPX;CM52,6#,YM6# CONTROL VALVE SIDE |
2 | ||
| 90410-04002 |
KM51..SPX;CM60,65,YM6# RACK HOUSING SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-28010 |
CM5#,KM51,YM55 |
1 | ||
| 44419-28011 |
KM51..SPX |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29225 |
KM51..SPX |
2 | ||
| 45503-29125 |
KM51..SPX |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29225 |
KM51..SPX |
2 | ||
| 45503-29125 |
KM51..SPX |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14005 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 90214-14005 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14005 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 90214-14005 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-28010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 45523-28010 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90501-23024 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 45524-16010 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 90179-36002 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-27030 |
CM50,51,55,6#,KM51,YM55,6# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 45535-28010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-55011 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 90461-12298 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 90460-64002 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-55011 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 90461-12298 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 90460-64002 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-19012 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 90467-18003 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 90467-15017 |
KM51..SPX;CM52,6#,YM6# |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-19012 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 90467-18003 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 90467-15017 |
KM51..SPX;CM52,6#,YM6# |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-28010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 45535-27030 |
CM50,51,55,60,65,KM51,YM55,6# |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91511-60825 | ||||
ILLUST NO. 2 OF 2(9110- )
4WS, ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-20010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44015-22020 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90301-43002 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25004 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90310-25004 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 90310-25020 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-27050 |
KM51..SPX |
1 | ||
| 44201-27040 |
KM51..SPX |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
CM5#,6#,KM51,YM55,60 |
4 | ||
| 90562-33007 |
KM51..SPX;CM52,6#,YM6# |
4 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-27010 |
KM51..SPX |
1 | ||
| 44203-27030 |
KM51..SPX |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-28010 |
KM51..SPX |
1 | ||
| 44204-28010 |
CM5#,KM51,YM55 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-39003 |
CM5#,6#,KM51,YM55,60 内側 |
1 | ||
| 90301-39003 |
KM51..SPX;CM52,6#,YM6# 内側 |
1 | ||
| 90562-43001 |
KM51..SPX;CM52,6#,YM6# 外側 |
1 | ||
| 90562-43001 |
CM5#,6#,KM51,YM55,60 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-39003 |
CM5#,6#,KM51,YM55,60 内側 |
1 | ||
| 90301-39003 |
KM51..SPX;CM52,6#,YM6# 内側 |
1 | ||
| 90562-43001 |
KM51..SPX;CM52,6#,YM6# 外側 |
1 | ||
| 90562-43001 |
CM5#,6#,KM51,YM55,60 外側 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-27050 |
KM51..SPX |
1 | ||
| 44210-27040 |
KM51..SPX |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
KM51..SPX;CM52,6#,YM6# |
2 | ||
| 90410-06005 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90301-51001 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 90311-19002 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90363-19003 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-22010 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44211-22010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99132 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 90310-30009 |
CM6#,YM60;KM51..SPX |
1 | ||
| 90310-30011 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44253R - SPACER(FOR POWER STEERING RACK HOUSING) | ||||
| 90560-30007 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-28020 |
KM51..SPX;CM60,65,YM6# |
1 | ||
| 44275-28010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44275-26030 |
KM51..SPX;CM60,65,YM6# |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-30009 |
CM6#,YM60;KM51..SPX |
1 | ||
| 90310-30011 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90310-30004 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44275D - BUSH(FOR CYLINDER END STOPPER) | ||||
| 90386-30001 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44275F - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-41004 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-28010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44277-28010 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-28050 |
KM51..SPX |
1 | ||
| 44418-28010 |
CM5#,KM51,YM55 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
KM51..SPX;CM52,6#,YM6# CONTROL VALVE SIDE |
2 | ||
| 90410-04002 |
KM51..SPX;CM60,65,YM6# RACK HOUSING SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
KM51..SPX;CM52,6#,YM6# CONTROL VALVE SIDE |
2 | ||
| 90410-04002 |
KM51..SPX;CM60,65,YM6# RACK HOUSING SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-28010 |
CM5#,KM51,YM55 |
1 | ||
| 44419-28011 |
KM51..SPX |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29225 |
KM51..SPX |
2 | ||
| 45503-29125 |
KM51..SPX |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29225 |
KM51..SPX |
2 | ||
| 45503-29125 |
KM51..SPX |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-28010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 45523-28010 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 90501-23024 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 45524-16010 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
CM5#,6#,KM51,YM55,60 |
1 | ||
| 90179-36002 |
KM51..SPX;CM52,6#,YM6# |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-55011 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 90461-12298 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 90460-64002 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-19012 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 90467-18003 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 90467-15017 |
KM51..SPX;CM52,6#,YM6# |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-19012 |
KM51..SPX;CM60,65,YM6# |
2 | ||
| 90467-18003 |
CM5#,6#,KM51,YM55,60 |
2 | ||
| 90467-15017 |
KM51..SPX;CM52,6#,YM6# |
2 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-28020 |
CM5#,KM5#,YM55 |
1 | ||
| Common parts | ||||
| 90119-12135 | ||||
| 90119-12136 | ||||
| 90149-30004 | ||||
| 91511-60825 | ||||
| Linked diagrams | ||||
| 4506 | ||||
ILLUST NO. 3 OF 3(8610-8807)CM5#,KM5#,YM55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CM50,51,55,KM5#,YM55 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CM50,51,55,KM5#,YM55 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-29315 |
CM5#,KM5#,YM55 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-29315 |
CM5#,KM5#,YM55 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
CM5#,6#,KM5#,YM55,60 |
2 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-29085 |
CM5#,KM5#,YM55 |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-29085 |
CM5#,KM5#,YM55 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-28030 |
CM50,51,55,KM5#,YM55..JL,SJL,T1 |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
CM5#,6#,KM5#,YM55,6# |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-28030 |
CM50,51,55,KM5#,YM55..JL,SJL,T1 |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90170-08125 | ||||
| 90170-10082 | ||||
| 94511-00800 | ||||
| 95381-03025 | ||||
ILLUST NO. 3 OF 3(8807- )CM5#,KM5#,YM55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CM50,51,55,KM5#,YM55 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CM50,51,55,KM5#,YM55 |
2 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-28030 |
CM50,51,55,KM5#,YM55..JL,SJL,T1 |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
CM5#,6#,KM5#,YM55,6# |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-28030 |
CM50,51,55,KM5#,YM55..JL,SJL,T1 |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90170-14012 | ||||
| 95381-03025 | ||||
ILLUST NO. 1 OF 2(9110- )
4WS, ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-27010 |
CM5#,6#,KM51,YM55,60 ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 04445-27020 |
KM51..SPX;CM60,65,YM6# |
1 | ||
| 04445-27010 |
CM5#,KM51,YM55 ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-27010 |
CM50,51,55,KM51,YM55 ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 04455-27010 |
CM5#,6#,KM51,YM55,60 ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-27011 |
CM5#,KM51,YM55 TOYODA KOKI |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-27011 |
KM51..SPX |
1 | ||
| 44250-27050 |
KM51..SPX |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CM50,51,55,KM5#,YM55 |
2 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-27020 |
CM5#,KM51,YM55 W/POWER STEERING |
1 | ||
| 45517-27020 |
KM51..SPX |
1 | ||
| Common parts | ||||
| 90119-12135 | ||||
| 90119-12136 | ||||
| 90170-14012 | ||||
| 95381-03025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
