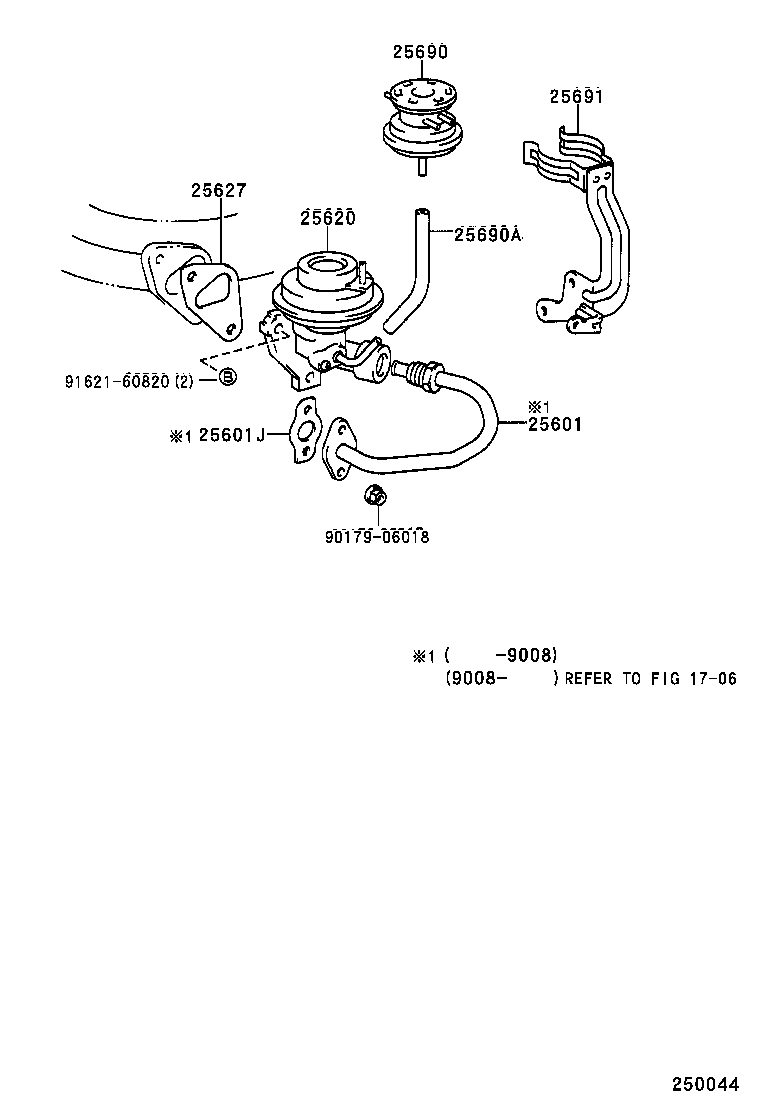

Toyota Lite/townace truck KM51 EXHAUST GAS RECIRCULATION SYSTEM

Part #	Description	Period	Qty
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-13050	5K..KM51	10/1986 - 08/1990	1
25601J - GASKET(FOR EGR PIPE, NO.1)
17376-13010	5K..KM51	10/1986 - 12/1989	1
17376-13011	5K..KM51	12/1989 - 08/1990	1
25620 - VALVE ASSY, EGR
25620-13310	5K..KM51..MTM	10/1986 - 07/1987	1
25620-13311	5K..KM51..MTM	07/1987 - 08/1990	1
25620-13270	5K..KM51	08/1990 - 10/1991	1
25620-13380	5K..KM51	10/1991 - 12/2999	1
25627 - GASKET, EGR VALVE
25627-13020	5K..KM51	10/1986 - 12/1989	1
25627-13021	5K..KM51	12/1989 - 12/2999	1
25690 - MODULATOR ASSY, EGR VACUUM
25870-13070	5K..KM51	08/1990 - 12/2999	1
25870-13100	5K..KM51	10/1986 - 08/1990	1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
25695-13060	5K..KM51	05/1987 - 08/1990	1
90445-11026	5K..KM51	10/1986 - 05/1987	1
90445-11026	5K..KM51	08/1990 - 12/2999	1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-13050	5K..KM51	10/1991 - 12/2999	1
25691-13030	5K..KM51	10/1986 - 10/1991	1
Common parts
90179-06018
91621-60820
Linked diagrams
1706

KM51-TSMNS (1986)
