KM51-TLNDS (1986)
Toyota Lite/Townace Truck
Production
Oct 1986
-
Jun 1999
Engine
5K
Transmission
3HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )4K,5K

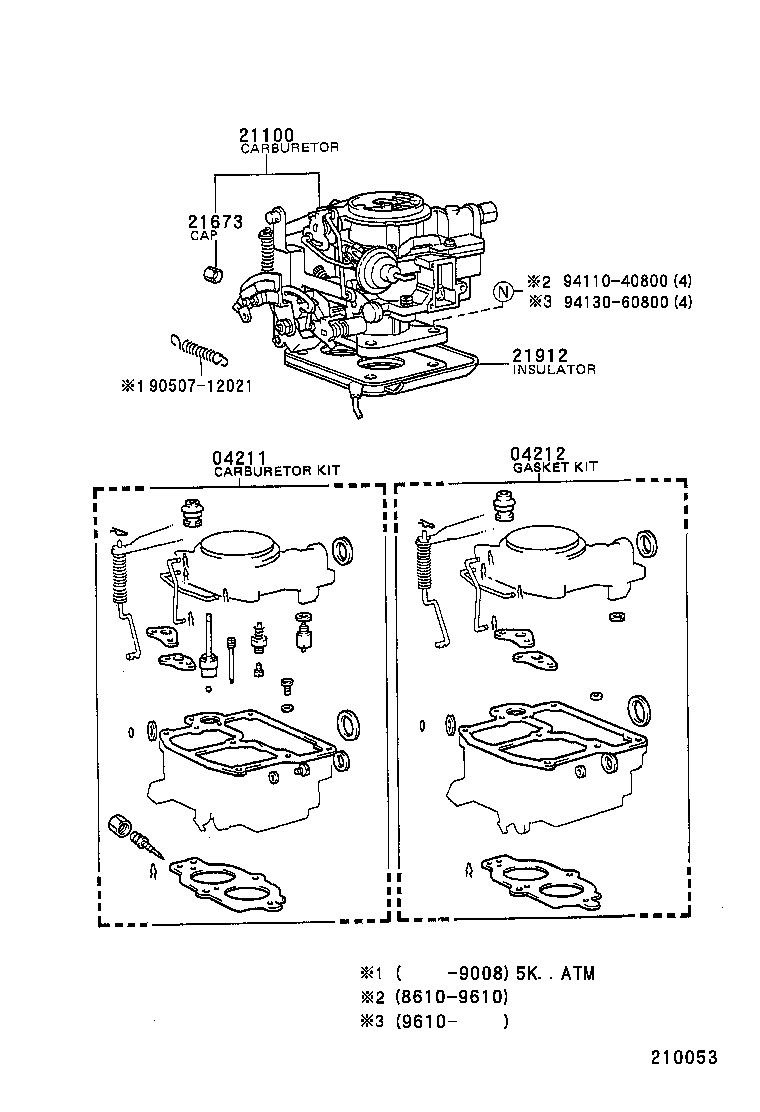

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04211 - CARBURETOR KIT | ||||
| 04211-13350 |
5K..KM51 |
1 | ||
| 04211-13353 |
5K..KM51 |
1 | ||
| 04211-13351 |
5K..KM51 |
1 | ||
| 04211-13490 |
5K..KM51 |
1 | ||
| 04212 - GASKET KIT, CARBURETOR | ||||
| 04212-13070 |
5K..KM51 |
1 | ||
| 04212-13071 |
5K..KM51 |
1 | ||
| 04212-13071 |
5K..KM51 |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-13560 |
5K..KM51..ATM |
1 | ||
| 21100-13740 |
5K..KM51..ATM |
1 | ||
| 21100-13850 |
5K..KM51..ATM |
1 | ||
| 21673 - CAP, IDLE LIMIT | ||||
| 21673-13280 |
4K,5K..KM5# |
1 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21901-13020 |
5K..KM51 |
1 | ||
| 21912-13070 |
4K,5K..KM5# |
1 | ||
| 21912-13031 |
4K,5K..KM5# |
1 | ||
| Common parts | ||||
| 90507-12021 | ||||
| 94110-40800 | ||||
| 94130-60800 | ||||
