KM51-TLJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )

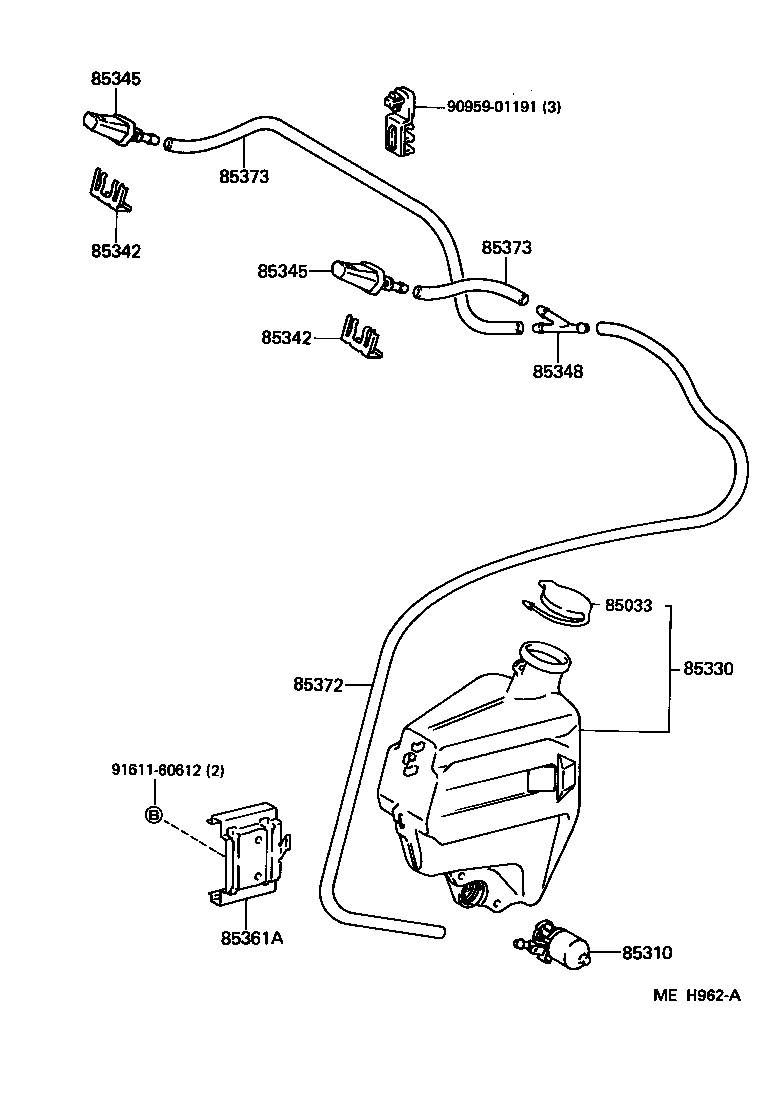

Click highlighted areas on diagram

diagram 85033 85310 85330 85342 85342 85345 85345 85348 85361A 85372 85373 85373 9095901191 9161160612
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85399-95715

CM5#,6#,KM5#,YM55,6#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-95700

CM5#,6#,KM5#,YM55,6#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-95700

CM5#,6#,KM5#,YM55,6#

 1
85342 - HOLDER, WASHER NOZZLE
85342-95J01

CM5#,6#,KM5#,YM55,6#

 2
85342 - HOLDER, WASHER NOZZLE
85342-95J01

CM5#,6#,KM5#,YM55,6#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-95714

CM5#,6#,KM5#,YM55,6#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-95714

CM5#,6#,KM5#,YM55,6#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

CM5#,6#,KM5#,YM55,6#

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-95A02

CM5#,6#,KM5#,YM55,6#

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

CM5#,6#,KM5#,YM55,6#

長さ=450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

CM5#,6#,KM5#,YM55,6#

長さ=450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

CM5#,6#,KM5#,YM55,6#

長さ=450

 1
Common parts
90959-01191
91611-60612
