KM51-TLJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )

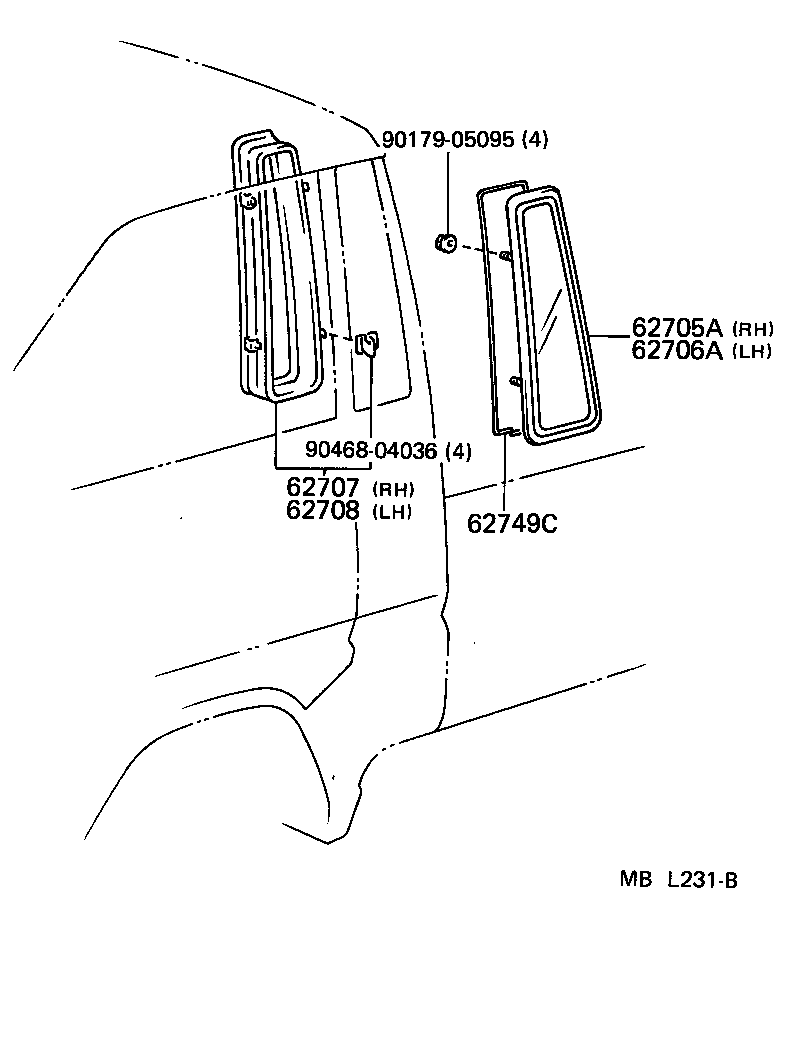

Click highlighted areas on diagram

diagram 62705A 62706A 62707 62708 62749C 9017905095 9046804036
Part # Description Qty Price
62705A - FRAME SUB-ASSY, QUARTER WINDOW, RH
62705-95705

CM5#,6#,KM5#,YM55,60..DX

ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ

 1
62705-95705

CM5#,6#,KM5#,YM55,60

*TT,T=3.5

 1
62705-95704

CM5#,6#,KM5#,YM55,60..DX

*TEM,T=3.5

 1
62706A - FRAME SUB-ASSY, QUARTER WINDOW, LH
62706-95705

CM5#,6#,KM5#,YM55,60..DX

ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ

 1
62706-95704

CM5#,6#,KM5#,YM55,60..DX

*TEM,T=3.5

 1
62706-95705

CM5#,6#,KM5#,YM55,60

*TT,T=3.5

 1
62707 - FRAME SUB-ASSY, QUARTER WINDOW, INNER RH
62707-9570303

KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX

EXTRA,GRAY,GRAY

 1
62707-9570303

CM5#,6#,KM5#,YM55,60..DX

ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM8#

 1
62707-9570403

KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX

GRAY,GRAY

 1
62707-9570403

CM5#,6#,KM5#,YM55,60..DX

GRAY,TRIM8#

 1
62707-9570303

CM5#,6#,KM5#,YM55,60..DX

ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1#

 1
62708 - FRAME SUB-ASSY, QUARTER WINDOW, INNER LH
62708-9570403

CM5#,6#,KM5#,YM55,60..DX

GRAY,TRIM8#

 1
62708-9570403

KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX

GRAY,GRAY

 1
62708-9570303

KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX

EXTRA,GRAY,GRAY

 1
62708-9570303

CM5#,6#,KM5#,YM55,60..DX

ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM8#

 1
62708-9570303

CM5#,6#,KM5#,YM55,60..DX

ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,GRAY,TRIM1#

 1
Common parts
90179-05095
90468-04036
