KM51-TLJDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

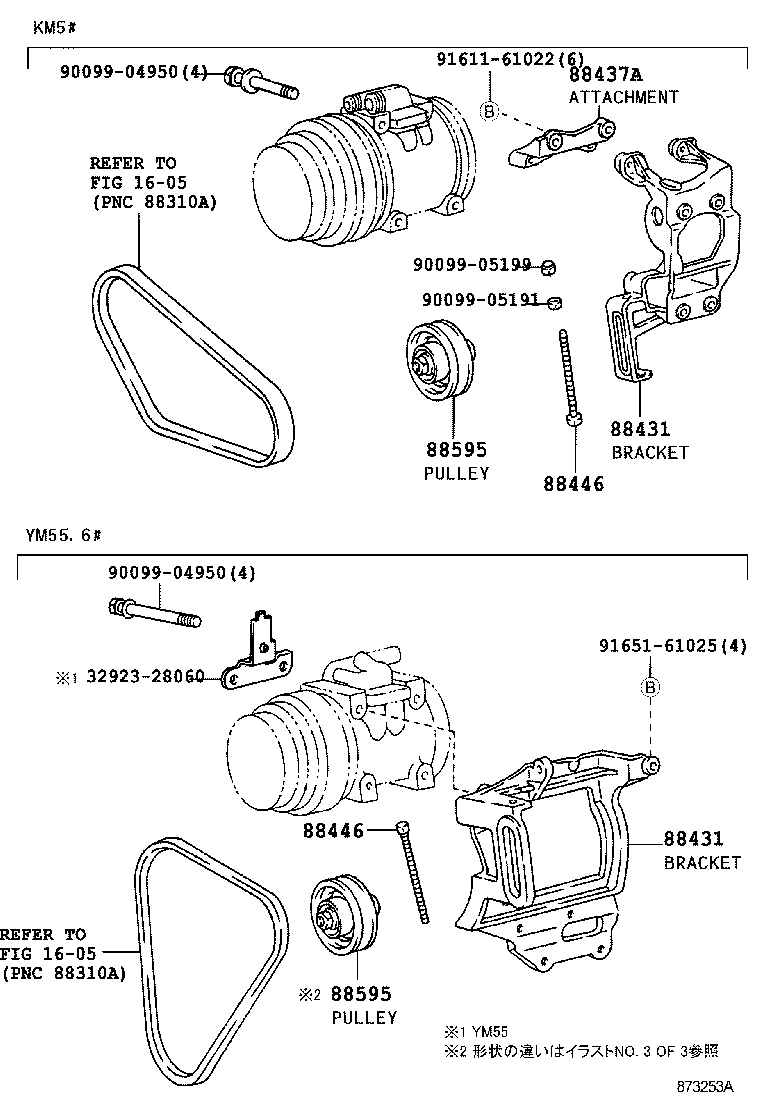

ILLUST NO. 2 OF 3(8610-9611)KM5#,YM55,6#

Click highlighted areas on diagram

diagram 1605 1605 3292328060 88431 88431 88437A 88446 88446 88595 88595 9009904950 9009904950 9009905191 9009905199 9161161022 9165161025
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-27030

KM5#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-27030

KM5#

 1
88437A - ATTACHMENT, COMPRESSOR
88437-27030

KM5#

 1
88437-27030

KM5#..MTM

 1
88446 - BOLT, IDLE PULLEY
90099-04350

KM5#

 1
88446 - BOLT, IDLE PULLEY
90099-04350

KM5#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM50,51,55,KM5#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM50,51,55,KM5#

 1
Common parts
32923-28060
90099-04950
90099-05191
90099-05199
91611-61022
91651-61025
Linked diagrams
1605

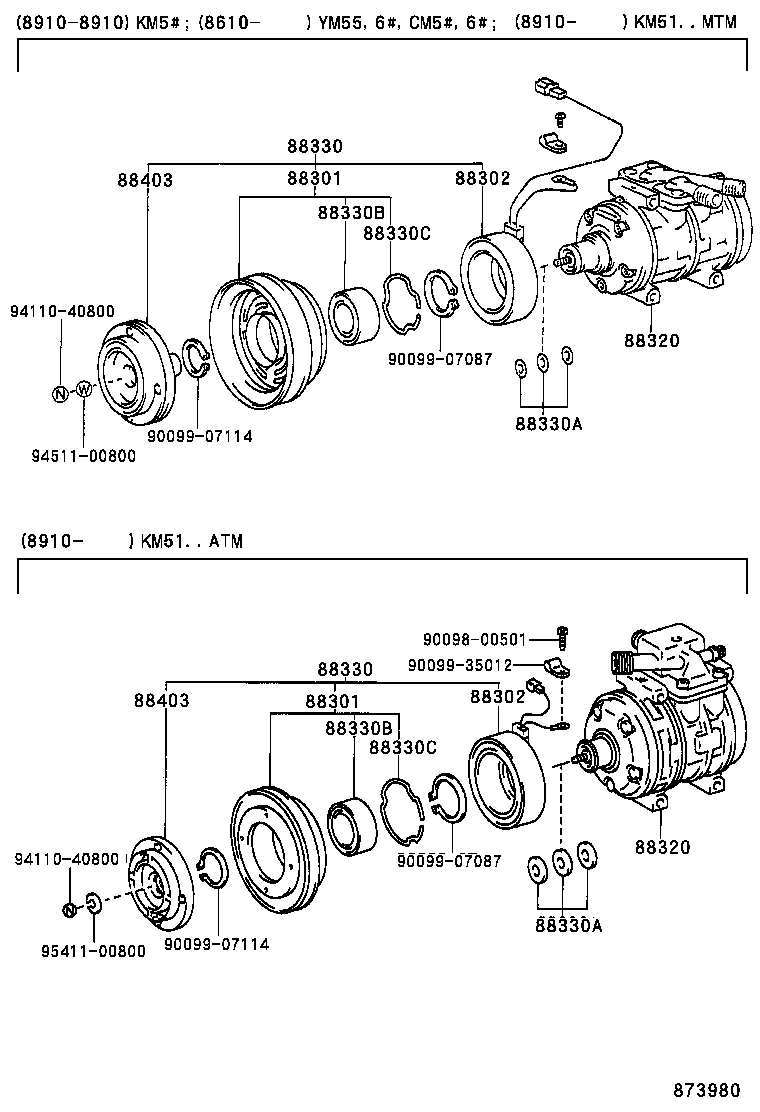

ILLUST NO. 1 OF 3(8610- )

Click highlighted areas on diagram

diagram 88301 88301 88302 88302 88320 88320 88330 88330 88330A 88330A 88330B 88330B 88330C 88330C 88403 88403 9009800501 9009907087 9009907087 9009907114 9009907114 9009935012 9411040800 9411040800 9451100800 9541100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22030

KM5#,YM55,6#

 1
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22030

KM5#,YM55,6#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14050

CM5#,6#,KM5#,YM55,60

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14050

CM5#,6#,KM5#,YM55,60

 1
88320 - COMPRESSOR ASSY, COOLER
88320-27070

KM5#

 1
88320-28040

CM50,51,55

 1
88320 - COMPRESSOR ASSY, COOLER
88320-27070

KM5#

 1
88320-28040

CM50,51,55

 1
88330 - CLUTCH ASSY, MAGNET
88410-22080

KM5#,YM55,60

 1
88330 - CLUTCH ASSY, MAGNET
88410-22080

KM5#,YM55,60

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050

CM5#,6#,KM5#,YM55,60..4H,4HC,5F,5H

 1
88335-12050

CM5#,6#,KM5#,YM55,60

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050

CM5#,6#,KM5#,YM55,60..4H,4HC,5F,5H

 1
88335-12050

CM5#,6#,KM5#,YM55,60

 1
88330B - BEARING, MAGNET CLUTCH
90099-10133

CM5#,6#,KM5#,YM55,60..4H,4HC,5F,5H

 1
90099-10162

KM5#,YM55,60

 1
90099-10133

CM5#,6#,KM5#,YM55,60

 1
88330B - BEARING, MAGNET CLUTCH
90099-10133

CM5#,6#,KM5#,YM55,60..4H,4HC,5F,5H

 1
90099-10162

KM5#,YM55,60

 1
90099-10133

CM5#,6#,KM5#,YM55,60

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07094

KM5#,YM55,6#

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07094

KM5#,YM55,6#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

CM5#,6#,KM5#,YM55,60

 1
88403-14030

CM5#,6#,KM5#,YM55,60

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

CM5#,6#,KM5#,YM55,60

 1
88403-14030

CM5#,6#,KM5#,YM55,60

 1
Common parts
90098-00501
90099-07087
90099-07114
90099-35012
94110-40800
94511-00800
95411-00800
