KM51-TBJDS3 (1989)
Toyota Lite/Townace Truck

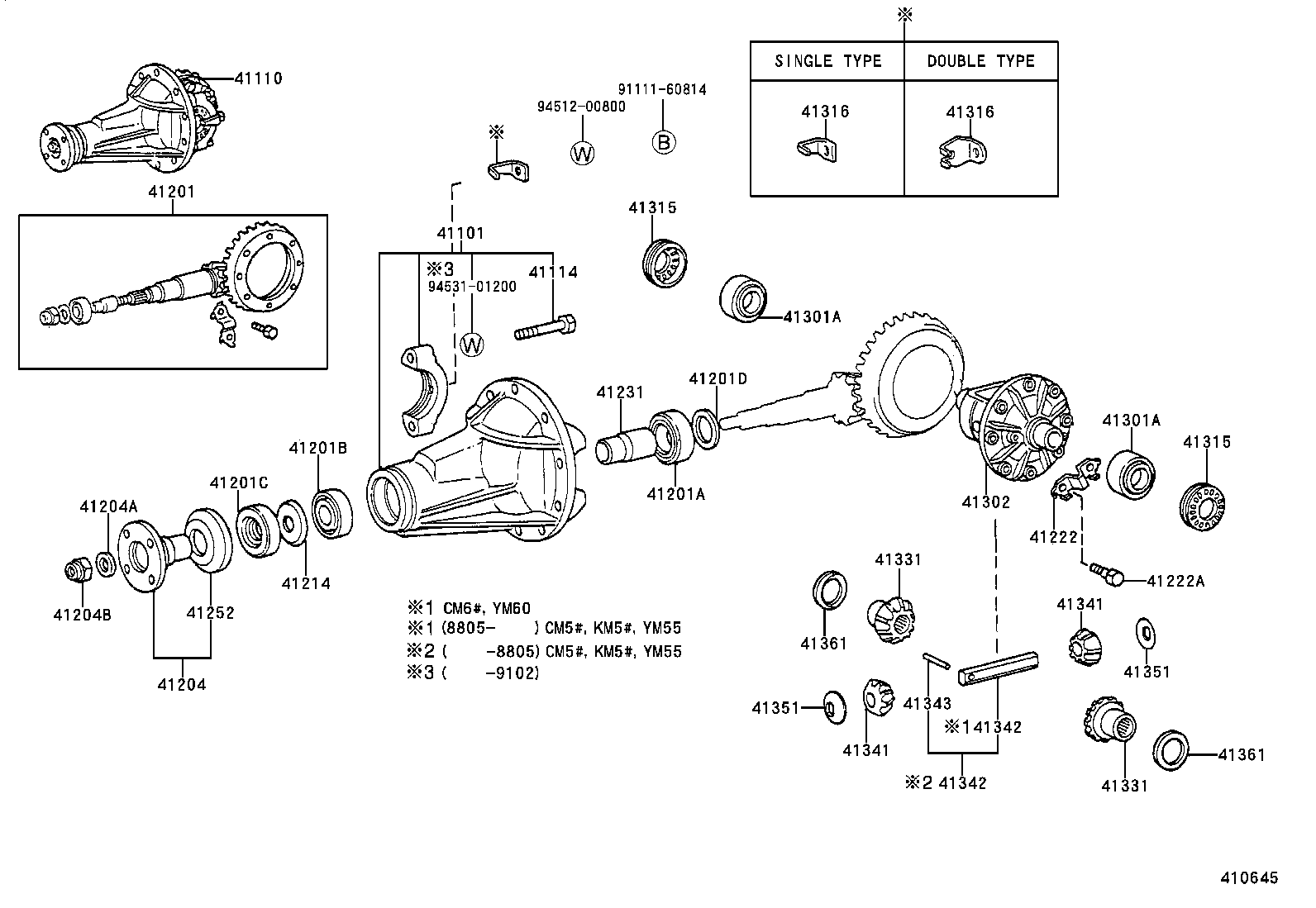

ILLUST NO. 1 OF 2(8610-9610)CM50,51,55,60,65,KM5#,YM55,6# ; (9610- )CM60,65,YM6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-30010 |
CM50,51,55,KM5#,YM55 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-27030 |
KM5#..JL,T1 *FGR=43:9=4.778,ｱｸｽﾙｺ-ﾄﾞ=E362 |
1 | ||
| 41110-22110 |
KM50..SJL;CM50,51..JL *FGR=41:9=4.555,ｱｸｽﾙｺ-ﾄﾞ=E252 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12376 |
CM5#,6#,KM5#,YM55,6# |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39287 |
KM50..SJL;CM50,51..JL *FGR=41:9=4.556,ｱｸｽﾙｺ-ﾄﾞ=E252 |
1 | ||
| 41201-29307 |
KM5#..JL,T1 *FGR=43:9=4.778,ｱｸｽﾙｺ-ﾄﾞ=E362 |
1 | ||
| 41201-29307 |
KM5#..JL,T1 *FGR=43:9=4.778 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35031 |
CM50,51,55,KM5#,YM55 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35435 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35437 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35436 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35396 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.36,ﾏｰｸ 05 |
1 | ||
| 90201-35434 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35399 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.43,ﾏｰｸ 08 |
1 | ||
| 90201-35402 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.54,ﾏｰｸ 11 |
1 | ||
| 90201-35397 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.39,ﾏｰｸ 06 |
1 | ||
| 90201-35401 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.51,ﾏｰｸ 10 |
1 | ||
| 90201-35398 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.42,ﾏｰｸ 07 |
1 | ||
| 90201-35441 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.72,ﾏｰｸ 17 |
1 | ||
| 90201-35439 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.66,ﾏｰｸ 15 |
1 | ||
| 90201-35404 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.60,ﾏｰｸ 13 |
1 | ||
| 90201-35403 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.57,ﾏｰｸ 12 |
1 | ||
| 90201-35438 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.63,ﾏｰｸ 14 |
1 | ||
| 90201-35400 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.48,ﾏｰｸ 09 |
1 | ||
| 90201-35440 |
CM5#,6#,KM5#,YM55,6# 厚さ=2.69,ﾏｰｸ 16 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20030 |
CM5#,KM5#,YM55 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-28010 |
CM50,51,55,KM5#,YM55 |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
CM5#,6#,KM5#,YM55,60 |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22020 |
CM50,51,55,KM5#,YM55 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
CM5#,6#,KM5#,YM55,60 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
CM5#,6#,KM5#,YM55,60 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-30022 |
CM50,51,55,KM5#,YM55 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
CM50,51,55,KM5#,YM55 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
CM50,51,55,KM5#,YM55 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-30010 |
CM5#,6#,KM5#,YM55,6# ﾀﾞﾌﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41316-30010 |
CM5#,6#,KM5#,YM55,6# ｼﾝｸﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-30010 |
CM5#,6#,KM5#,YM55,6# ﾀﾞﾌﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41316-30010 |
CM5#,6#,KM5#,YM55,6# ｼﾝｸﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-30021 |
CM5#,KM5#,YM55 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-30021 |
CM5#,KM5#,YM55 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30011 |
CM5#,KM5#,YM55 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30011 |
CM5#,KM5#,YM55 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-39015 |
CM5#,KM5#,YM55 |
1 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-39015 |
CM5#,KM5#,YM55 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30032 |
CM50,51,55,KM5#,YM55 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30032 |
CM50,51,55,KM5#,YM55 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22020 |
CM50,51,55,KM5#,YM55 厚さ=1.00,ﾏｰｸ 02 |
2 | ||
| 41361-22150 |
CM50,51,55,KM5#,YM55 厚さ=1.05,ﾏｰｸ 15 |
2 | ||
| 41361-22040 |
CM50,51,55,KM5#,YM55 厚さ=1.20,ﾏｰｸ 04 |
2 | ||
| 41361-22160 |
CM50,51,55,KM5#,YM55 厚さ=1.15,ﾏｰｸ 16 |
2 | ||
| 41361-22140 |
CM50,51,55,KM5#,YM55 厚さ=0.95,ﾏｰｸ 14 |
2 | ||
| 41361-22030 |
CM50,51,55,KM5#,YM55 厚さ=1.10,ﾏｰｸ 03 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22020 |
CM50,51,55,KM5#,YM55 厚さ=1.00,ﾏｰｸ 02 |
2 | ||
| 41361-22150 |
CM50,51,55,KM5#,YM55 厚さ=1.05,ﾏｰｸ 15 |
2 | ||
| 41361-22040 |
CM50,51,55,KM5#,YM55 厚さ=1.20,ﾏｰｸ 04 |
2 | ||
| 41361-22160 |
CM50,51,55,KM5#,YM55 厚さ=1.15,ﾏｰｸ 16 |
2 | ||
| 41361-22140 |
CM50,51,55,KM5#,YM55 厚さ=0.95,ﾏｰｸ 14 |
2 | ||
| 41361-22030 |
CM50,51,55,KM5#,YM55 厚さ=1.10,ﾏｰｸ 03 |
2 | ||
| Common parts | ||||
| 91111-60814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||
