KM51-TBJDS3 (1989)
Toyota Lite/Townace Truck
Production
Oct 1989
-
Aug 1990
Engine
5K
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8610-9008)5K

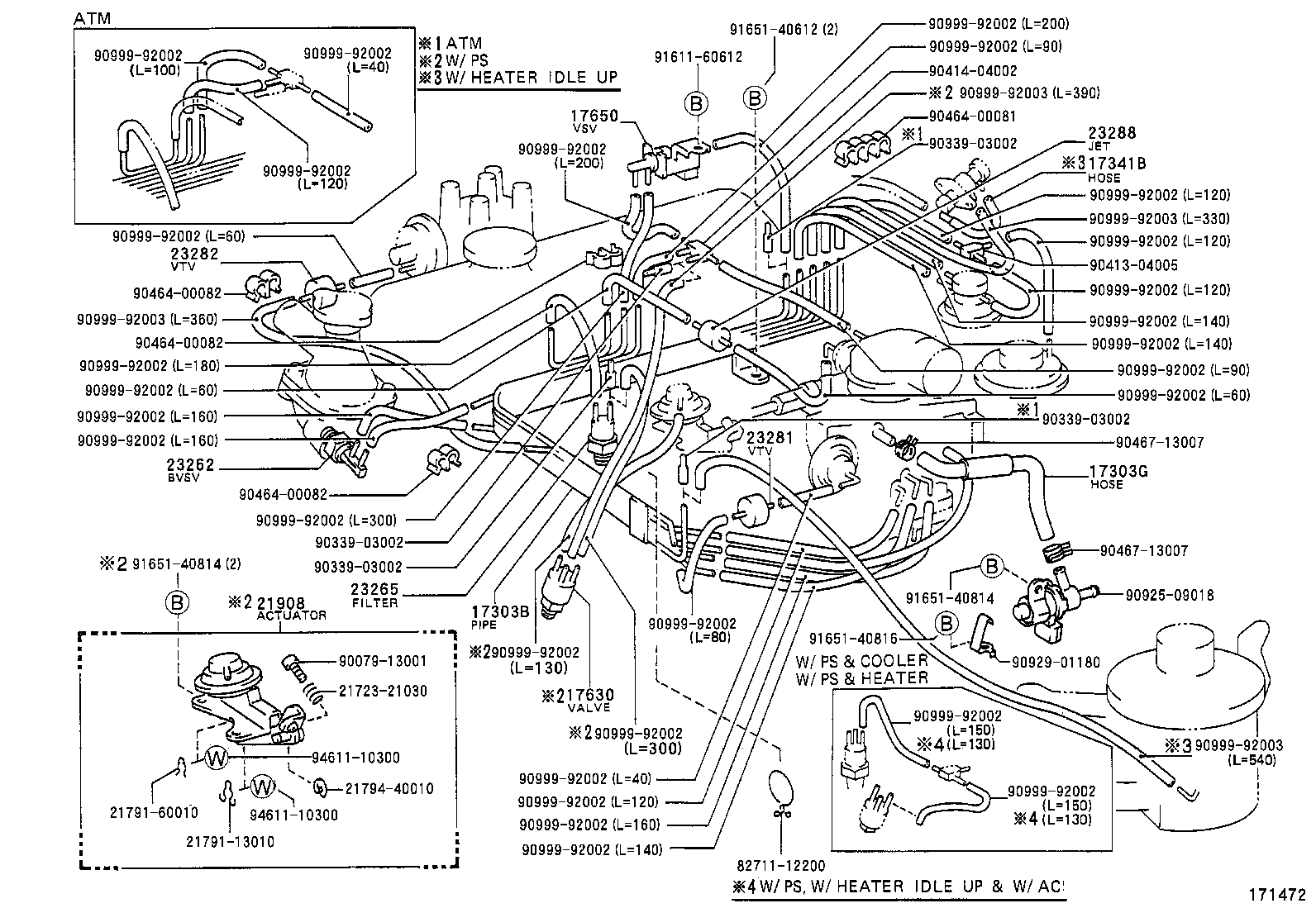

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-13130 |
5K..KM51 |
1 | ||
| 17303G - HOSE, NO.3(FOR AIR PIPE) | ||||
| 23826-13060 |
5K..KM51 |
1 | ||
| 17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-10010 |
5K..KM51 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-28020 |
5K..KM51 W/POWER STEERING |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-13020 |
5K..KM51..MTM |
1 | ||
| 21908 - ACTUATOR SUB-ASSY, IDLE-UP | ||||
| 21908-13010 |
5K..KM51 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05051 |
4K,5K..KM5# |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4K,5K..KM5# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01029 |
5K..KM51..MTM |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01041 |
5K..KM51..MTM |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04006 |
4K,5K..KM5# |
1 | ||
| Common parts | ||||
| 21723-21030 | ||||
| 21791-13010 | ||||
| 21791-60010 | ||||
| 21794-40010 | ||||
| 82711-12200 | ||||
| 90079-13001 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90414-04002 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90467-13007 | ||||
| 90925-09018 | ||||
| 90929-01180 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-60612 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 94611-10300 | ||||
