KM50-TSJDS (1986)
Toyota Lite/Townace Truck

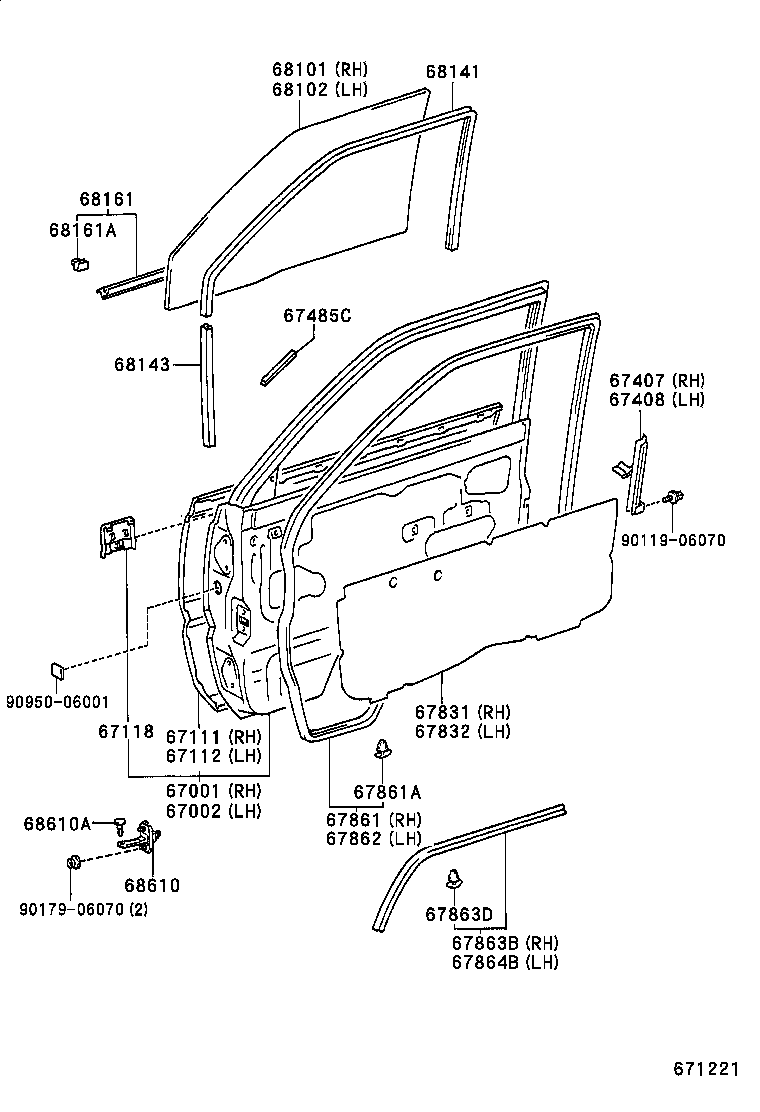

ILLUST NO. 2 OF 2(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-95737 |
CM5#,6#,KM5#,YM55,60..DX EXTRA |
1 | ||
| 67001-95729 |
CM5#,6#,KM5#,YM55,60..DX |
1 | ||
| 67001-95735 |
CM5#,6#,KM5#,YM55,60..DX EXTRA |
1 | ||
| 67001-95735 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 67001-95732 |
CM5#,6#,KM5#,YM55,60..DX EXTRA |
1 | ||
| 67001-95734 |
CM5#,6#,KM5#,YM55,60..DX |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-95728 |
CM5#,6#,KM5#,YM55,60..DX |
1 | ||
| 67002-95736 |
CM5#,6#,KM5#,YM55,60..DX |
1 | ||
| 67002-95741 |
CM5#,6#,KM5#,YM55,60..DX EXTRA |
1 | ||
| 67002-95738 |
CM5#,6#,KM5#,YM55,60..DX EXTRA |
1 | ||
| 67002-95738 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 67002-95733 |
CM5#,6#,KM5#,YM55,60..DX EXTRA |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-95716 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-95712 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 67118 - RETAINER, OUTER MIRROR | ||||
| 67118-95700 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 67485C - SEAL, FRONT DOOR BRACKET, NO.1 | ||||
| 67485-95700 |
CM5#,6#,KM5#,YM55,60 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-95703 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 67831-95703 |
YM60;CM5#,6#,KM5#,YM55..DX |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-95703 |
YM60;CM5#,6#,KM5#,YM55..DX |
1 | ||
| 67831-95703 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-95707 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-95701 |
CM5#,6#,KM5#,YM55,60 LH |
27 | ||
| 67867-95701 |
CM5#,6#,KM5#,YM55,60 RH |
27 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-95707 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67867-95700 |
CM5#,6#,KM5#,YM55,60 RH |
12 | ||
| 67868-95700 |
CM5#,6#,KM5#,YM55,60 LH |
12 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-95705 |
CM5#,6#,KM5#,YM55,6#..DX *TEM,厚さ=4.0 |
1 | ||
| 68111-95706 |
CM5#,6#,KM5#,YM55,60 *TT,厚さ=4.0 |
1 | ||
| 68111-95706 |
CM5#,6#,KM5#,YM55,60..DX *TT,厚さ=4.0,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-95706 |
CM5#,6#,KM5#,YM55,60..DX *TT,厚さ=4.0,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 68112-95706 |
CM5#,6#,KM5#,YM55,60 *TT,厚さ=4.0 |
1 | ||
| 68112-95705 |
CM5#,6#,KM5#,YM55,6#..DX *TEM,厚さ=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-95706 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 68143 - RUN, FRONT DOOR GLASS, LOWER | ||||
| 68143-95704 |
CM5#,6#,KM5#,YM55,60 |
2 | ||
| 68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER | ||||
| 68160-95701 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-30080 |
CM5#,6#,KM5#,YM55,60 |
14 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-95701 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-90A00 |
CM5#,6#,KM5#,YM55,60 |
2 | ||
| 68617-90A01 |
CM5#,6#,KM5#,YM55,60 |
2 | ||
| Common parts | ||||
| 90119-06070 | ||||
| 90179-06070 | ||||
| 90950-06001 | ||||

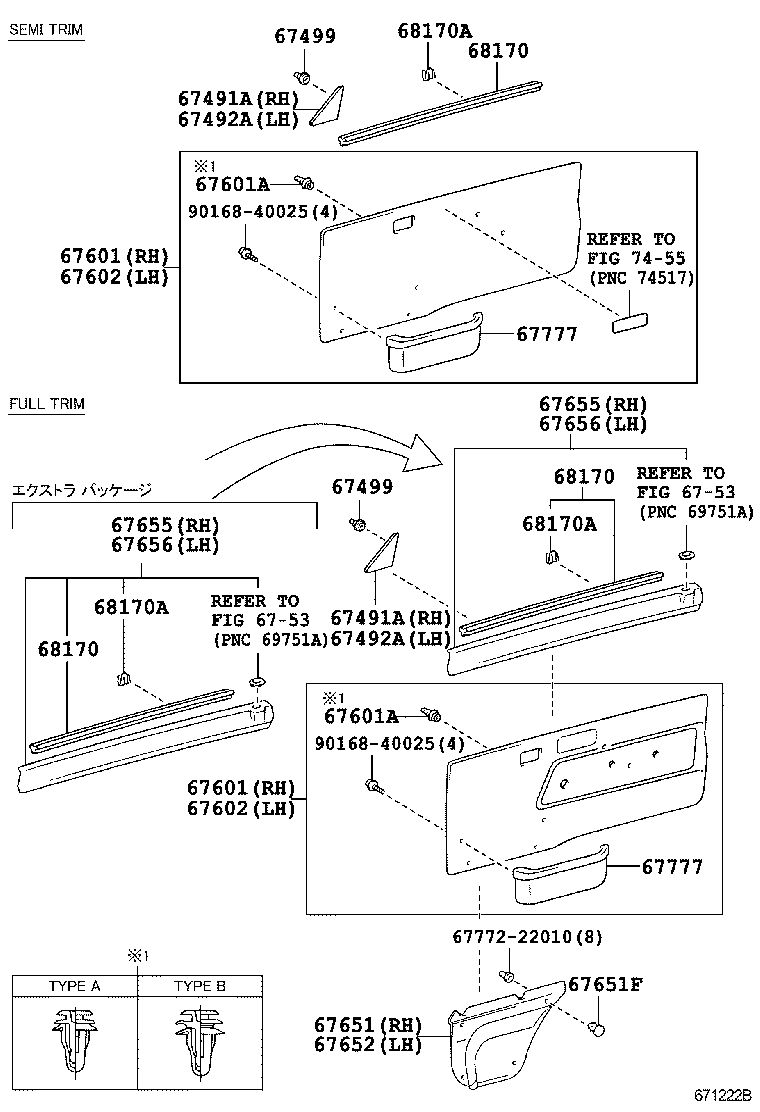

ILLUST NO. 1 OF 2(8610-8910)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-95700 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 67491-95700 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-95700 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 67491-95700 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-95700 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 67492-95700 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-95700 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 67492-95700 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67772-95J01 |
CM5#,6#,KM5#,YM55,60 |
2 | ||
| 67772-95J01 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67772-95J01 |
CM5#,6#,KM5#,YM55,60 |
2 | ||
| 67772-95J01 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-9578004 |
KM50;CM5#,6#,KM51..3SO BLUE,DEEP BLUE |
1 | ||
| 67610-9578204 |
KM50;CM5#,6#,KM51..3SO EXTRA,BLUE,DEEP BLUE |
1 | ||
| 67610-95G0904 |
KM50;CM5#,6#,KM51..3SO EXTRA,BLUE,BLUE |
1 | ||
| 67610-95G0804 |
CM5#,6#,KM5#,YM55,60..DX DEEP BLUE,TRIM8# |
1 | ||
| 67610-95G0904 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-9578004 |
KM50;CM5#,6#,KM51..3SO BLUE,DEEP BLUE |
1 | ||
| 67610-9578204 |
KM50;CM5#,6#,KM51..3SO EXTRA,BLUE,DEEP BLUE |
1 | ||
| 67610-95G0904 |
KM50;CM5#,6#,KM51..3SO EXTRA,BLUE,BLUE |
1 | ||
| 67610-95G0804 |
CM5#,6#,KM5#,YM55,60..DX DEEP BLUE,TRIM8# |
1 | ||
| 67610-95G0904 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
CM5#,6#,KM5#,YM55,60 TYPE A |
24 | ||
| 67771-16020 |
CM5#,6#,KM5#,YM55,60 ﾀｲﾌﾟ A |
24 | ||
| 67771-95J09 |
CM5#,6#,KM5#,YM55,60 TYPE B |
2 | ||
| 67771-95J09 |
CM5#,6#,KM5#,YM55,60 ﾀｲﾌﾟ B |
2 | ||
| 67771-95J09 |
CM5#,6#,KM5#,YM55,60..DX ﾀｲﾌﾟ B |
2 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
CM5#,6#,KM5#,YM55,60 TYPE A |
24 | ||
| 67771-16020 |
CM5#,6#,KM5#,YM55,60 ﾀｲﾌﾟ A |
24 | ||
| 67771-95J09 |
CM5#,6#,KM5#,YM55,60 TYPE B |
2 | ||
| 67771-95J09 |
CM5#,6#,KM5#,YM55,60 ﾀｲﾌﾟ B |
2 | ||
| 67771-95J09 |
CM5#,6#,KM5#,YM55,60..DX ﾀｲﾌﾟ B |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9574704 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 67620-9574704 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67620-9574604 |
CM5#,6#,KM5#,YM55,60..DX BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9574704 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 67620-9574704 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67620-9574604 |
CM5#,6#,KM5#,YM55,60..DX BLUE,TRIM8# |
1 | ||
| 67651 - BOARD, FRONT DOOR TRIM, LOWER RH | ||||
| 67628-9570004 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67628-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 67651F - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0804604 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
8 | ||
| 90467-0804614 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
8 | ||
| 90467-0804004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
8 | ||
| 67652 - BOARD, FRONT DOOR TRIM, LOWER LH | ||||
| 67629-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 67629-9570004 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67655 - GARNISH, FRONT DOOR TRIM, RH | ||||
| 67650-9570304 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67650-9570304 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 67655 - GARNISH, FRONT DOOR TRIM, RH | ||||
| 67650-9570304 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67650-9570304 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 67656 - GARNISH, DOOR TRIM, LH | ||||
| 67660-9570404 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 67660-9570404 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67656 - GARNISH, DOOR TRIM, LH | ||||
| 67660-9570404 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 67660-9570404 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67778-2203010 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 67778-2203010 |
CM5#,6#,KM5#,YM55,60..DX DEEP BLUE,TRIM8# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67778-2203010 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 67778-2203010 |
CM5#,6#,KM5#,YM55,60..DX DEEP BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-95707 |
CM5#,6#,KM5#,YM55,60..DX EXTRA,RH |
1 | ||
| 68172-95706 |
CM5#,6#,KM5#,YM55,60..DX LH |
1 | ||
| 68171-95706 |
CM5#,6#,KM5#,YM55,60..DX RH |
1 | ||
| 68172-95707 |
CM5#,6#,KM5#,YM55,60..DX EXTRA,LH |
1 | ||
| 68172-95706 |
CM65..TS;CM5#,60,KM5#,YM55,60..DX 左側 |
1 | ||
| 68171-95706 |
CM65..TS;CM5#,60,KM5#,YM55,60..DX 右側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-95707 |
CM5#,6#,KM5#,YM55,60..DX EXTRA,RH |
1 | ||
| 68172-95706 |
CM5#,6#,KM5#,YM55,60..DX LH |
1 | ||
| 68171-95706 |
CM5#,6#,KM5#,YM55,60..DX RH |
1 | ||
| 68172-95707 |
CM5#,6#,KM5#,YM55,60..DX EXTRA,LH |
1 | ||
| 68172-95706 |
CM65..TS;CM5#,60,KM5#,YM55,60..DX 左側 |
1 | ||
| 68171-95706 |
CM65..TS;CM5#,60,KM5#,YM55,60..DX 右側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-95707 |
CM5#,6#,KM5#,YM55,60..DX EXTRA,RH |
1 | ||
| 68172-95706 |
CM5#,6#,KM5#,YM55,60..DX LH |
1 | ||
| 68171-95706 |
CM5#,6#,KM5#,YM55,60..DX RH |
1 | ||
| 68172-95707 |
CM5#,6#,KM5#,YM55,60..DX EXTRA,LH |
1 | ||
| 68172-95706 |
CM65..TS;CM5#,60,KM5#,YM55,60..DX 左側 |
1 | ||
| 68171-95706 |
CM65..TS;CM5#,60,KM5#,YM55,60..DX 右側 |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-12080 |
CM5#,6#,KM5#,YM55,60 |
14 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-12080 |
CM5#,6#,KM5#,YM55,60 |
14 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-12080 |
CM5#,6#,KM5#,YM55,60 |
14 | ||
| Common parts | ||||
| 67772-22010 | ||||
| 90168-40025 | ||||
| Linked diagrams | ||||
| 6753 | ||||
| 7455 | ||||

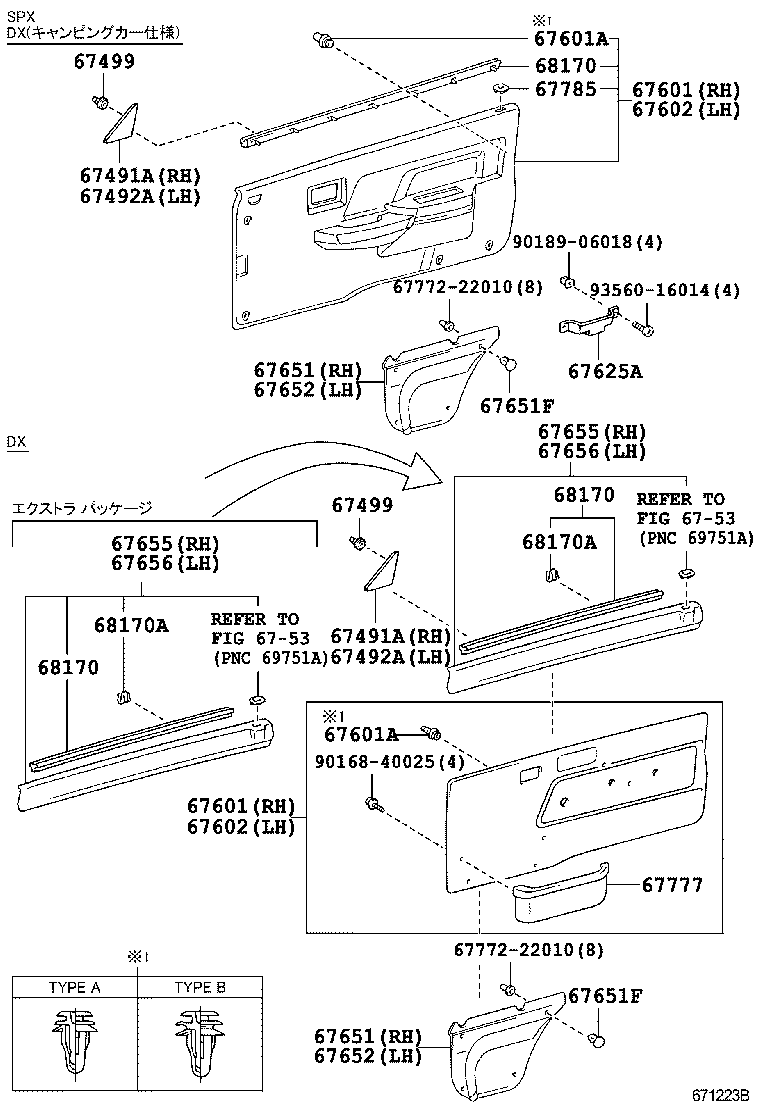

ILLUST NO. 1 OF 2(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-95700 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 67491-95700 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-95700 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 67491-95700 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-95700 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 67492-95700 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-95700 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 67492-95700 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67772-95J01 |
CM5#,6#,KM5#,YM55,60 |
2 | ||
| 67772-95J01 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67772-95J01 |
CM5#,6#,KM5#,YM55,60 |
2 | ||
| 67772-95J01 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-9578004 |
KM50;CM5#,6#,KM51..3SO BLUE,DEEP BLUE |
1 | ||
| 67610-9578204 |
KM50;CM5#,6#,KM51..3SO EXTRA,BLUE,DEEP BLUE |
1 | ||
| 67610-95G0904 |
KM50;CM5#,6#,KM51..3SO EXTRA,BLUE,BLUE |
1 | ||
| 67610-95G0804 |
CM5#,6#,KM5#,YM55,60..DX DEEP BLUE,TRIM8# |
1 | ||
| 67610-95G0904 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-9578004 |
KM50;CM5#,6#,KM51..3SO BLUE,DEEP BLUE |
1 | ||
| 67610-9578204 |
KM50;CM5#,6#,KM51..3SO EXTRA,BLUE,DEEP BLUE |
1 | ||
| 67610-95G0904 |
KM50;CM5#,6#,KM51..3SO EXTRA,BLUE,BLUE |
1 | ||
| 67610-95G0804 |
CM5#,6#,KM5#,YM55,60..DX DEEP BLUE,TRIM8# |
1 | ||
| 67610-95G0904 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
CM5#,6#,KM5#,YM55,60 TYPE A |
24 | ||
| 67771-16020 |
CM5#,6#,KM5#,YM55,60 ﾀｲﾌﾟ A |
24 | ||
| 67771-95J09 |
CM5#,6#,KM5#,YM55,60 TYPE B |
2 | ||
| 67771-95J09 |
CM5#,6#,KM5#,YM55,60 ﾀｲﾌﾟ B |
2 | ||
| 67771-95J09 |
CM5#,6#,KM5#,YM55,60..DX ﾀｲﾌﾟ B |
2 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
CM5#,6#,KM5#,YM55,60 TYPE A |
24 | ||
| 67771-16020 |
CM5#,6#,KM5#,YM55,60 ﾀｲﾌﾟ A |
24 | ||
| 67771-95J09 |
CM5#,6#,KM5#,YM55,60 TYPE B |
2 | ||
| 67771-95J09 |
CM5#,6#,KM5#,YM55,60 ﾀｲﾌﾟ B |
2 | ||
| 67771-95J09 |
CM5#,6#,KM5#,YM55,60..DX ﾀｲﾌﾟ B |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9574704 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 67620-9574704 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67620-9574604 |
CM5#,6#,KM5#,YM55,60..DX BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9574704 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 67620-9574704 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67620-9574604 |
CM5#,6#,KM5#,YM55,60..DX BLUE,TRIM8# |
1 | ||
| 67651 - BOARD, FRONT DOOR TRIM, LOWER RH | ||||
| 67628-9570004 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67628-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 67651 - BOARD, FRONT DOOR TRIM, LOWER RH | ||||
| 67628-9570004 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67628-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 67651F - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0804604 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
8 | ||
| 90467-0804614 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
8 | ||
| 90467-0804004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
8 | ||
| 67651F - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0804604 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
8 | ||
| 90467-0804614 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
8 | ||
| 90467-0804004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
8 | ||
| 67652 - BOARD, FRONT DOOR TRIM, LOWER LH | ||||
| 67629-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 67629-9570004 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67652 - BOARD, FRONT DOOR TRIM, LOWER LH | ||||
| 67629-9570004 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX EXTRA,BLUE,BLUE |
1 | ||
| 67629-9570004 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67655 - GARNISH, FRONT DOOR TRIM, RH | ||||
| 67650-9570304 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67650-9570304 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 67655 - GARNISH, FRONT DOOR TRIM, RH | ||||
| 67650-9570304 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67650-9570304 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 67656 - GARNISH, DOOR TRIM, LH | ||||
| 67660-9570404 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 67660-9570404 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67656 - GARNISH, DOOR TRIM, LH | ||||
| 67660-9570404 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,BLUE |
1 | ||
| 67660-9570404 |
CM5#,6#,KM5#,YM55,60..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67778-2203010 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX BLUE,DEEP BLUE |
1 | ||
| 67778-2203010 |
CM5#,6#,KM5#,YM55,60..DX DEEP BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-95707 |
CM5#,6#,KM5#,YM55,60..DX EXTRA,RH |
1 | ||
| 68172-95706 |
CM5#,6#,KM5#,YM55,60..DX LH |
1 | ||
| 68171-95706 |
CM5#,6#,KM5#,YM55,60..DX RH |
1 | ||
| 68172-95707 |
CM5#,6#,KM5#,YM55,60..DX EXTRA,LH |
1 | ||
| 68172-95706 |
CM65..TS;CM5#,60,KM5#,YM55,60..DX 左側 |
1 | ||
| 68171-95706 |
CM65..TS;CM5#,60,KM5#,YM55,60..DX 右側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-95707 |
CM5#,6#,KM5#,YM55,60..DX EXTRA,RH |
1 | ||
| 68172-95706 |
CM5#,6#,KM5#,YM55,60..DX LH |
1 | ||
| 68171-95706 |
CM5#,6#,KM5#,YM55,60..DX RH |
1 | ||
| 68172-95707 |
CM5#,6#,KM5#,YM55,60..DX EXTRA,LH |
1 | ||
| 68172-95706 |
CM65..TS;CM5#,60,KM5#,YM55,60..DX 左側 |
1 | ||
| 68171-95706 |
CM65..TS;CM5#,60,KM5#,YM55,60..DX 右側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-95707 |
CM5#,6#,KM5#,YM55,60..DX EXTRA,RH |
1 | ||
| 68172-95706 |
CM5#,6#,KM5#,YM55,60..DX LH |
1 | ||
| 68171-95706 |
CM5#,6#,KM5#,YM55,60..DX RH |
1 | ||
| 68172-95707 |
CM5#,6#,KM5#,YM55,60..DX EXTRA,LH |
1 | ||
| 68172-95706 |
CM65..TS;CM5#,60,KM5#,YM55,60..DX 左側 |
1 | ||
| 68171-95706 |
CM65..TS;CM5#,60,KM5#,YM55,60..DX 右側 |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-12080 |
CM5#,6#,KM5#,YM55,60 |
14 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-12080 |
CM5#,6#,KM5#,YM55,60 |
14 | ||
| Common parts | ||||
| 67772-22010 | ||||
| 90168-40025 | ||||
| 90189-06018 | ||||
| 93560-16014 | ||||
| Linked diagrams | ||||
| 6753 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
