KM50-TSJDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )4K,5K

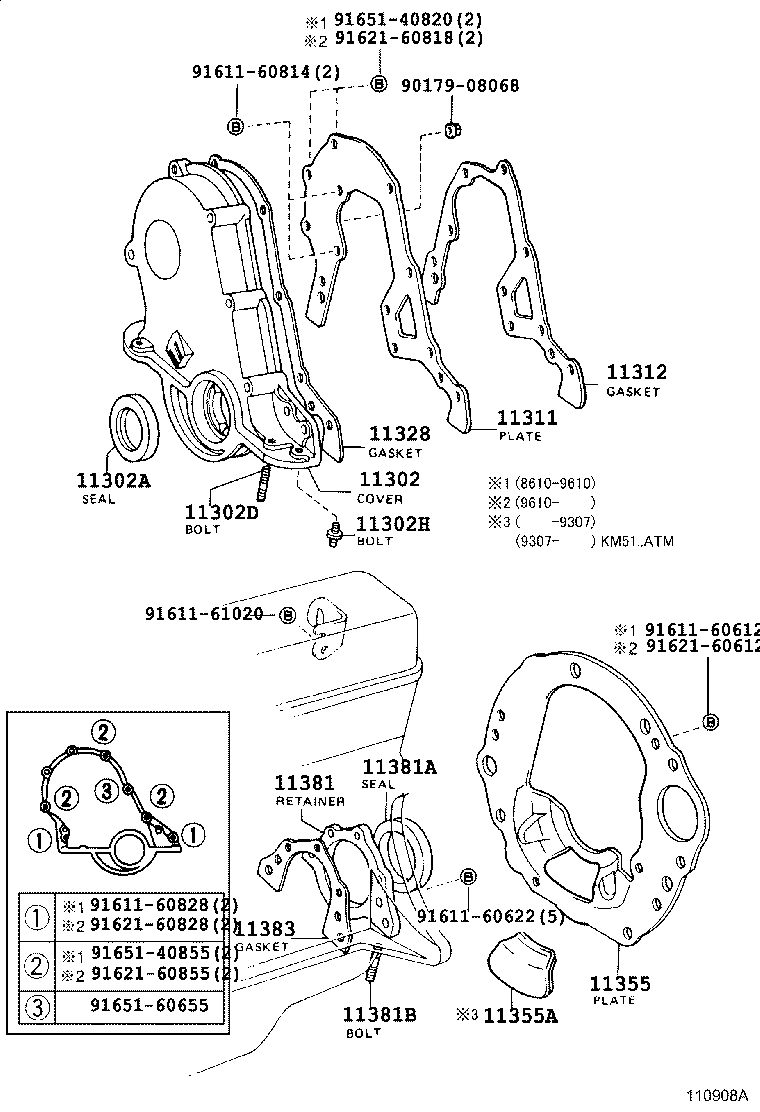

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11302H 11311 11312 11328 11355 11355A 11381 11381A 11381B 11383 9017908068 9161160612 9161160622 9161160814 9161160828 9161161020 9162160612 9162160818 9162160828 9162160855 9165140820 9165140855 9165160655
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-13042

4K,5K..KM5#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38022

4K,5K..KM5#

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-06012

4K,5K..KM5#

 2
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90116-06006

4K,5K..KM5#

 2
11311 - PLATE, FRONT END
11311-13010

4K,5K..KM5#

 1
11312 - GASKET, FRONT END PLATE
11312-13040

4K,5K..KM5#

 1
11312-13050

4K,5K..KM5#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-13011

4K,5K..KM5#

 1
11328-13030

4K,5K..KM5#

 1
11355 - PLATE, REAR END
11355-24043

4K,5K..KM5#

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01343

4K,5K..KM5#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-13011

4K,5K..KM5#

 1
11381A - SEAL, ENGINE REAR OIL
90311-70004

4K,5K..KM5#

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90116-06035

4K,5K..KM5#

L=23,S=12&9

 2
90116-06035

4K,5K..KM5#

 2
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-13010

4K,5K..KM5#

 1
Common parts
90179-08068
91611-60612
91611-60622
91611-60814
91611-60828
91611-61020
91621-60612
91621-60818
91621-60828
91621-60855
91651-40820
91651-40855
91651-60655
