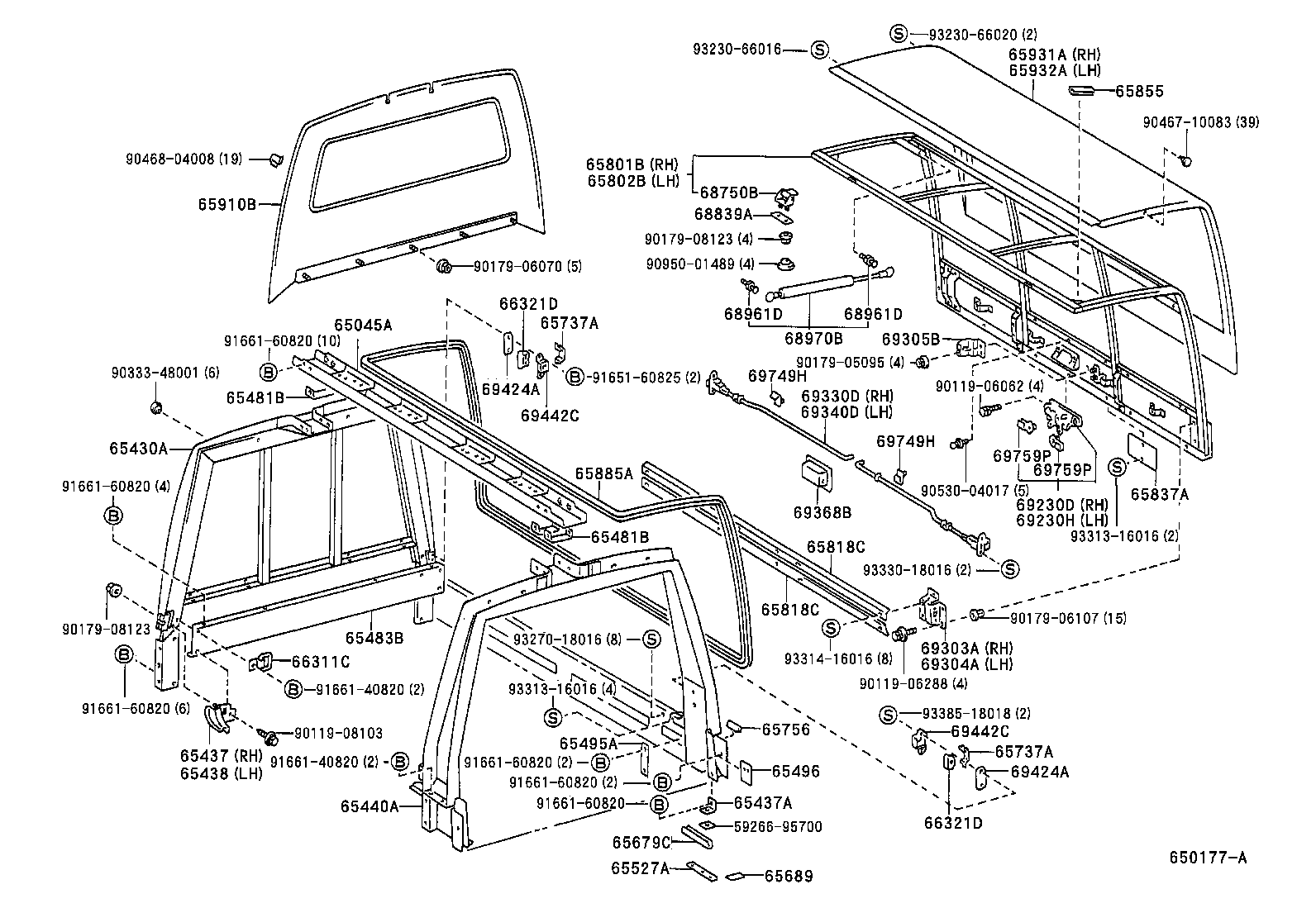

KM50-TRJDS (1986)
Toyota Lite/Townace Truck
(8610- )GUT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65045A - FRAME SUB-ASSY, TOP & TARPAULIN SUPPORT, CENTER | ||||
| 65045-95700 |
CM60,KM5#,YM60..GUT |
1 | ||
| 65430A - FRAME ASSY, TOP & CURTAIN SUPPORT, FRONT | ||||
| 65430-95700 |
CM60,KM5#,YM60..GUT |
1 | ||
| 65437 - BRACKET, TOP & CURTAIN FRAME, FRONT RH | ||||
| 65437-95701 |
CM60,KM5#,YM60..GUT |
1 | ||
| 65437A - SUPPORT, REAR BODY GUARD FRAME | ||||
| 65437-95703 |
CM60,KM5#,YM60..GUT |
2 | ||
| 65438 - BRACKET, TOP & CURTAIN FRAME, FRONT LH | ||||
| 65438-95700 |
CM60,KM5#,YM60..GUT |
1 | ||
| 65440A - FRAME ASSY, TOP & CURTAIN SUPPORT, REAR | ||||
| 65440-95700 |
CM60,KM5#,YM60..GUT |
1 | ||
| 65481B - PROTECTOR, FRONT CORNER | ||||
| 65481-95704 |
CM60,KM50,YM60..GUT |
3 | ||
| 65481-95705 |
CM60,KM5#,YM60..GUT |
3 | ||
| 65481B - PROTECTOR, FRONT CORNER | ||||
| 65481-95704 |
CM60,KM50,YM60..GUT |
3 | ||
| 65481-95705 |
CM60,KM5#,YM60..GUT |
3 | ||
| 65483B - RAIL, HEADER BOARD, UPPER | ||||
| 65483-95703 |
CM60,KM5#,YM60..GUT |
1 | ||
| 65495A - SEAL, REAR BODY GUARD FRAME, NO.3 | ||||
| 65495-95700 |
CM60,KM5#,YM60..GUT |
2 | ||
| 65496 - SEAL, REAR BODY GUARD FRAME, NO.4 | ||||
| 65496-95700 |
CM60,KM5#,YM60..GUT |
2 | ||
| 65527A - PROTECTOR, TOP RAIL SIDE | ||||
| 65527-95700 |
CM60,KM50,YM60..GUT |
2 | ||
| 65527-95702 |
CM60,KM5#,YM60..GUT |
2 | ||
| 65679C - PROTECTOR, SIDE GATE | ||||
| 65679-95702 |
CM60,KM5#,YM60..GUT |
2 | ||
| 65689 - SEAL, SIDE GATE | ||||
| 65689-95702 |
CM60,KM5#,YM60..GUT |
2 | ||
| 65737A - STOP, SIDE TARPAULIN | ||||
| 65737-89105 |
CM60,KM50,YM60..GUT |
4 | ||
| 65737-89105 |
CM60,KM50,YM60..GUT 左側 |
2 | ||
| 65737A - STOP, SIDE TARPAULIN | ||||
| 65737-89105 |
CM60,KM50,YM60..GUT |
4 | ||
| 65737-89105 |
CM60,KM50,YM60..GUT 左側 |
2 | ||
| 65756 - SEAL, TAIL GATE | ||||
| 65756-95703 |
CM60,KM5#,YM60..GUT |
2 | ||
| 65801B - FRAME SUB-ASSY, SIDE TARPAULIN, RH | ||||
| 65801-95701 |
CM60,KM5#,YM60..GUT |
1 | ||
| 65802B - FRAME SUB-ASSY, SIDE TARPAULIN, LH | ||||
| 65802-95701 |
CM60,KM5#,YM60..GUT |
1 | ||
| 65818C - RAIL, SIDE TARPAULIN | ||||
| 65818-95700 |
CM60,KM50,YM60..GUT 左側 |
2 | ||
| 65818-95700 |
CM60,KM50,YM60..GUT |
4 | ||
| 65818C - RAIL, SIDE TARPAULIN | ||||
| 65818-95700 |
CM60,KM50,YM60..GUT 左側 |
2 | ||
| 65818-95700 |
CM60,KM50,YM60..GUT |
4 | ||
| 65837A - PLATE, TOP BOW | ||||
| 65837-95700 |
CM60,KM50,YM60..GUT 左側 |
1 | ||
| 65837-95700 |
CM60,KM50,YM60..GUT |
2 | ||
| 65855 - PROTECTOR, CENTER TOP TARPAULIN BOW | ||||
| 65855-95700 |
CM60,KM50,YM60..GUT |
4 | ||
| 65855-95700 |
CM60,KM50,YM60..GUT 左側 |
2 | ||
| 65885A - WEATHERSTRIP, SIDE TARPAULIN | ||||
| 65885-95701 |
CM60,KM50,YM60..GUT 左側 |
1 | ||
| 65885-95701 |
CM60,KM50,YM60..GUT |
2 | ||
| 65910B - TARPAULIN ASSY | ||||
| 65910-95700 |
CM60,KM50,YM60..GUT |
1 | ||
| 65910-95701 |
CM60,KM5#,YM60..GUT |
1 | ||
| 65931A - TARPAULIN, SIDE COVER, RH | ||||
| 65931-95700 |
CM60,KM50,YM60..GUT |
1 | ||
| 65931-95701 |
CM60,KM5#,YM60..GUT |
1 | ||
| 65932A - TARPAULIN, SIDE COVER, LH | ||||
| 65932-95700 |
CM60,KM50,YM60..GUT |
1 | ||
| 65932-95701 |
CM60,KM5#,YM60..GUT |
1 | ||
| 66311C - HOOK, ROPE | ||||
| 66311-95J00 |
CM60,KM5#,YM60..GUT |
4 | ||
| 66321D - BUMPER, SIDE TARPAULIN RUBBER | ||||
| 66321-89108 |
CM60,KM50,YM60..GUT |
4 | ||
| 66321-89108 |
CM60,KM50,YM60..GUT 左側 |
2 | ||
| 66321D - BUMPER, SIDE TARPAULIN RUBBER | ||||
| 66321-89108 |
CM60,KM50,YM60..GUT |
4 | ||
| 66321-89108 |
CM60,KM50,YM60..GUT 左側 |
2 | ||
| 68750B - HINGE ASSY, TARPAULIN | ||||
| 68750-95700 |
CM60,KM50,YM60..GUT 左側 |
2 | ||
| 68750-95700 |
CM60,KM50,YM60..GUT |
4 | ||
| 68839A - PAD, TARPAULIN HINGE | ||||
| 68839-95700 |
CM60,KM50,YM60..GUT |
4 | ||
| 68839-95700 |
CM60,KM50,YM60..GUT 左側 |
2 | ||
| 68961D - BOLT, SIDE TARPAULIN STAY | ||||
| 68961-95702 |
CM60,KM5#,YM60..GUT |
8 | ||
| 68961-95701 |
CM60,KM50,YM60..GUT |
8 | ||
| 68961D - BOLT, SIDE TARPAULIN STAY | ||||
| 68961-95702 |
CM60,KM5#,YM60..GUT |
8 | ||
| 68961-95701 |
CM60,KM50,YM60..GUT |
8 | ||
| 68970B - STAY ASSY, SIDE TARPAULIN DAMPER | ||||
| 68970-29025 |
CM60,KM50,YM60..GUT COLD SPEC |
4 | ||
| 68970-29015 |
CM60,KM5#,YM60..GUT |
4 | ||
| 68970-29025 |
CM60,KM5#,YM60..GUT ｶﾝﾚｲﾁ ｼﾖｳ |
4 | ||
| 69230D - HANDLE ASSY, SIDE COVER TARPAULIN | ||||
| 69230-95701 |
CM60,KM5#,YM60..GUT |
1 | ||
| 69230H - HANDLE ASSY, REAR DOOR, OUTSIDE | ||||
| 69230-95701 |
CM60,KM5#,YM60..GUT |
1 | ||
| 69303A - COVER SUB-ASSY, SIDE TARPAULIN LOCK, RH | ||||
| 69303-95700 |
CM60,KM5#,YM60..GUT FRONT |
1 | ||
| 69304-95700 |
CM60,KM50,YM60..GUT RR |
1 | ||
| 69303-95700 |
CM60,KM50,YM60..GUT FR |
1 | ||
| 69304-95700 |
CM60,KM5#,YM60..GUT REAR |
1 | ||
| 69304A - COVER SUB-ASSY, SIDE TARPAULIN LOCK, LH | ||||
| 69304-95700 |
CM60,KM50,YM60..GUT FR |
1 | ||
| 69303-95700 |
CM60,KM50,YM60..GUT RR |
1 | ||
| 69304-95700 |
CM60,KM5#,YM60..GUT FRONT |
1 | ||
| 69303-95700 |
CM60,KM5#,YM60..GUT REAR |
1 | ||
| 69305B - BRACKET SUB-ASSY, SIDE COVER TARPAULIN LOCK CONTROL | ||||
| 69305-95700 |
CM60,KM50,YM60..GUT |
2 | ||
| 69305-95700 |
CM60,KM50,YM60..GUT 左側 |
1 | ||
| 69330D - LOCK ASSY, TARPAULIN, RH | ||||
| 69330-95704 |
CM60,KM5#,YM60..GUT FRONT |
1 | ||
| 69340-95703 |
CM60,KM5#,YM60..GUT REAR |
1 | ||
| 69330-95704 |
CM60,KM50,YM60..GUT FR |
1 | ||
| 69340-95703 |
CM60,KM50,YM60..GUT RR |
1 | ||
| 69340D - LOCK ASSY, TARPAULIN, LH | ||||
| 69340-95703 |
CM60,KM5#,YM60..GUT FRONT |
1 | ||
| 69330-95704 |
CM60,KM50,YM60..GUT RR |
1 | ||
| 69330-95704 |
CM60,KM5#,YM60..GUT REAR |
1 | ||
| 69340-95703 |
CM60,KM50,YM60..GUT FR |
1 | ||
| 69368B - SPACER, ROOF CONCEALED COVER LOCK STRIKER | ||||
| 69368-95701 |
CM60,KM50,YM60..GUT 左側 |
1 | ||
| 69368-95701 |
CM60,KM50,YM60..GUT |
2 | ||
| 69424A - PLATE, SIDE TARPAULIN LOCK STRIKER | ||||
| 69424-95700 |
CM60,KM50,YM60..GUT 左側 |
2 | ||
| 69424-95700 |
CM60,KM50,YM60..GUT |
4 | ||
| 69424A - PLATE, SIDE TARPAULIN LOCK STRIKER | ||||
| 69424-95700 |
CM60,KM50,YM60..GUT 左側 |
2 | ||
| 69424-95700 |
CM60,KM50,YM60..GUT |
4 | ||
| 69442C - STRIKER, TARPAULIN LOCK | ||||
| 69442-95701 |
CM60,KM50,YM60..GUT 左側 |
2 | ||
| 69442-95701 |
CM60,KM50,YM60..GUT |
4 | ||
| 69442C - STRIKER, TARPAULIN LOCK | ||||
| 69442-95701 |
CM60,KM50,YM60..GUT 左側 |
2 | ||
| 69442-95701 |
CM60,KM50,YM60..GUT |
4 | ||
| 69749H - CLAMP, SIDE TARPAULIN LOCK LINK | ||||
| 69749-30020 |
CM60,KM50,YM60..GUT |
8 | ||
| 69749-30020 |
CM60,KM50,YM60..GUT 左側 |
4 | ||
| 69749H - CLAMP, SIDE TARPAULIN LOCK LINK | ||||
| 69749-30020 |
CM60,KM50,YM60..GUT |
8 | ||
| 69749-30020 |
CM60,KM50,YM60..GUT 左側 |
4 | ||
| 69759P - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24010 |
CM60,KM5#,YM60..GUT LH,FRONT |
1 | ||
| 69759-24020 |
CM60,KM50,YM60..GUT LH,RR;RH,FR |
1 | ||
| 69759-24020 |
CM60,KM5#,YM60..GUT LH,REAR |
1 | ||
| 69759-24010 |
CM60,KM50,YM60..GUT RH,RR;LH,FR |
1 | ||
| 69759P - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24010 |
CM60,KM5#,YM60..GUT LH,FRONT |
1 | ||
| 69759-24020 |
CM60,KM50,YM60..GUT LH,RR;RH,FR |
1 | ||
| 69759-24020 |
CM60,KM5#,YM60..GUT LH,REAR |
1 | ||
| 69759-24010 |
CM60,KM50,YM60..GUT RH,RR;LH,FR |
1 | ||
| Common parts | ||||
| 59266-95700 | ||||
| 90119-06062 | ||||
| 90119-06288 | ||||
| 90119-08103 | ||||
| 90179-05095 | ||||
| 90179-06070 | ||||
| 90179-06107 | ||||
| 90179-08123 | ||||
| 90333-48001 | ||||
| 90467-10083 | ||||
| 90468-04008 | ||||
| 90530-04017 | ||||
| 90950-01489 | ||||
| 91651-60825 | ||||
| 91661-40820 | ||||
| 91661-60820 | ||||
| 93230-66016 | ||||
| 93230-66020 | ||||
| 93270-18016 | ||||
| 93313-16016 | ||||
| 93314-16016 | ||||
| 93330-18016 | ||||
| 93385-18018 | ||||
