KM50-TRJDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )

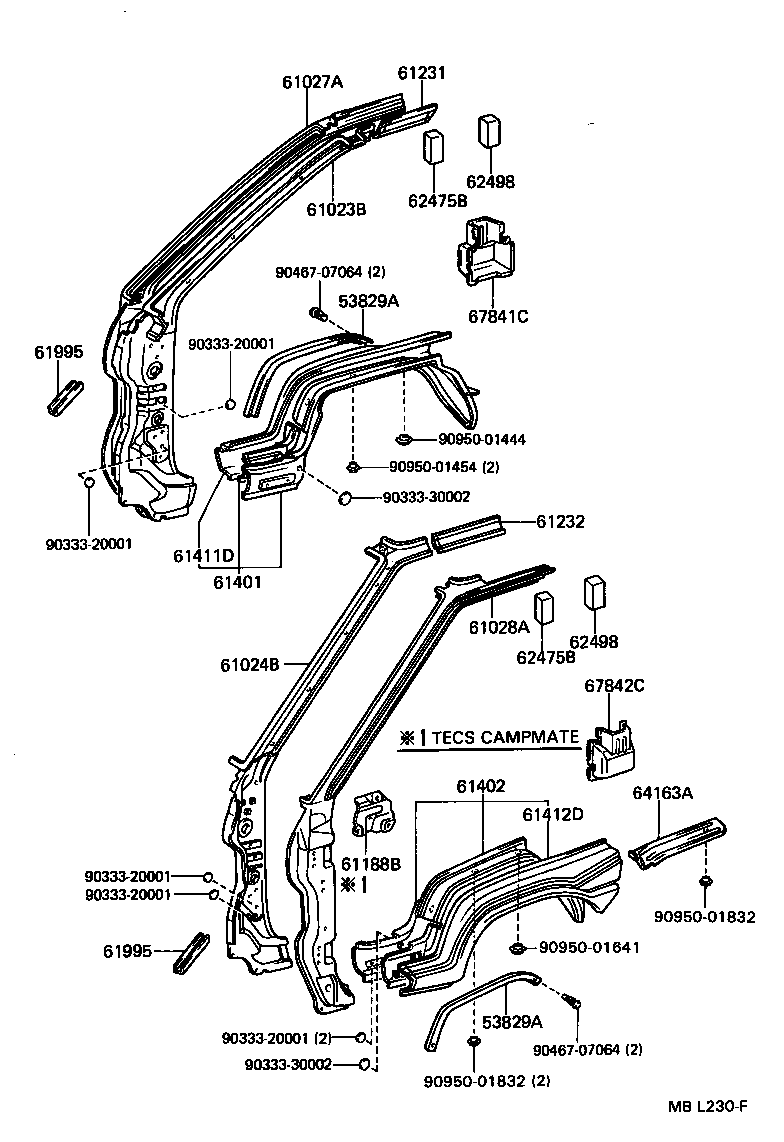

Click highlighted areas on diagram

diagram 53829A 53829A 61023B 61024B 61027A 61028A 61188B 61231 61232 61401 61402 61411D 61412D 61995 61995 62475B 62475B 62498 62498 64163A 67841C 67842C 9033320001 9033320001 9033320001 9033320001 9033320001 9033330002 9033330002 9046707064 9046707064 9095001444 9095001454 9095001641 9095001832 9095001832
Part # Description Qty Price
53829A - PROTECTOR, FRONT FENDER, LOWER
53829-95700

CM5#,6#,KM5#,YM55,60

RH

 1
53839-95700

CM5#,6#,KM5#,YM55,60

LH

 1
53829A - PROTECTOR, FRONT FENDER, LOWER
53829-95700

CM5#,6#,KM5#,YM55,60

RH

 1
53839-95700

CM5#,6#,KM5#,YM55,60

LH

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-95706

CM5#,6#,KM5#,YM55,60..DX

EXTRA

 1
61023-95706

CM5#,6#,KM5#,YM55,60..DX

ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ

 1
61023-95707

CM5#,6#,KM5#,YM55,60..DX

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-95711

CM5#,6#,KM5#,YM55,60..DX

EXTRA

 1
61024-95712

CM5#,6#,KM5#,YM55,6#..DX

 1
61024-95711

CM5#,6#,KM5#,YM55,60

ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-95702

CM5#,6#,KM5#,YM55,6#..3HC,4H,4HC,5F,5H

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-95705

CM5#,6#,KM5#,YM55,6#..DX

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-95705

CM5#,6#,KM5#,YM55,6#

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-95704

CM5#,6#,KM5#,YM55,6#

 1
61401 - PANEL SUB-ASSY, FENDER, RH
61403-95701

CM5#,6#,KM5#,YM55,6#

 1
61402 - PANEL SUB-ASSY, FENDER, LH
61404-95702

CM5#,6#,KM5#,YM55,6#

 1
61411D - PANEL, FENDER, OUTER RH
61411-95702

CM5#,6#,KM5#,YM55,6#

 1
61412D - PANEL, FENDER, OUTER LH
61412-95702

CM5#,6#,KM5#,YM55,6#

 1
61995 - DAM, FRONT BODY PILLAR, OUTER
61995-95700

CM5#,6#,KM5#,YM55,60

COLD SPEC

 2
61995 - DAM, FRONT BODY PILLAR, OUTER
61995-95700

CM5#,6#,KM5#,YM55,60

COLD SPEC

 2
62475B - SEAL, ROOF SIDE, INNER
62475-95700

CM5#,6#,KM5#,YM55,60

 2
62475B - SEAL, ROOF SIDE, INNER
62475-95700

CM5#,6#,KM5#,YM55,60

 2
62498 - SEAL, ROOF SIDE, INNER REAR
62498-95700

CM5#,6#,KM5#,YM55,60

 2
62498 - SEAL, ROOF SIDE, INNER REAR
62498-95700

CM5#,6#,KM5#,YM55,60

 2
64163A - COVER, BACK CORNER, INNER
64164-95700

CM5#,6#,KM5#,YM55,6#

 1
67841C - COVER, QUARTER SERVICE HOLE, RH
67841-95702

CM5#,6#,KM5#,YM55,6#

 1
67842C - COVER, QUARTER SERVICE HOLE, LH
67842-95700

CM5#,6#,KM5#,YM55,6#

 1
Common parts
90333-20001
90333-30002
90467-07064
90950-01444
90950-01454
90950-01641
90950-01832
