KM50-TRJDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )CM50,51,60,KM5#,YM60

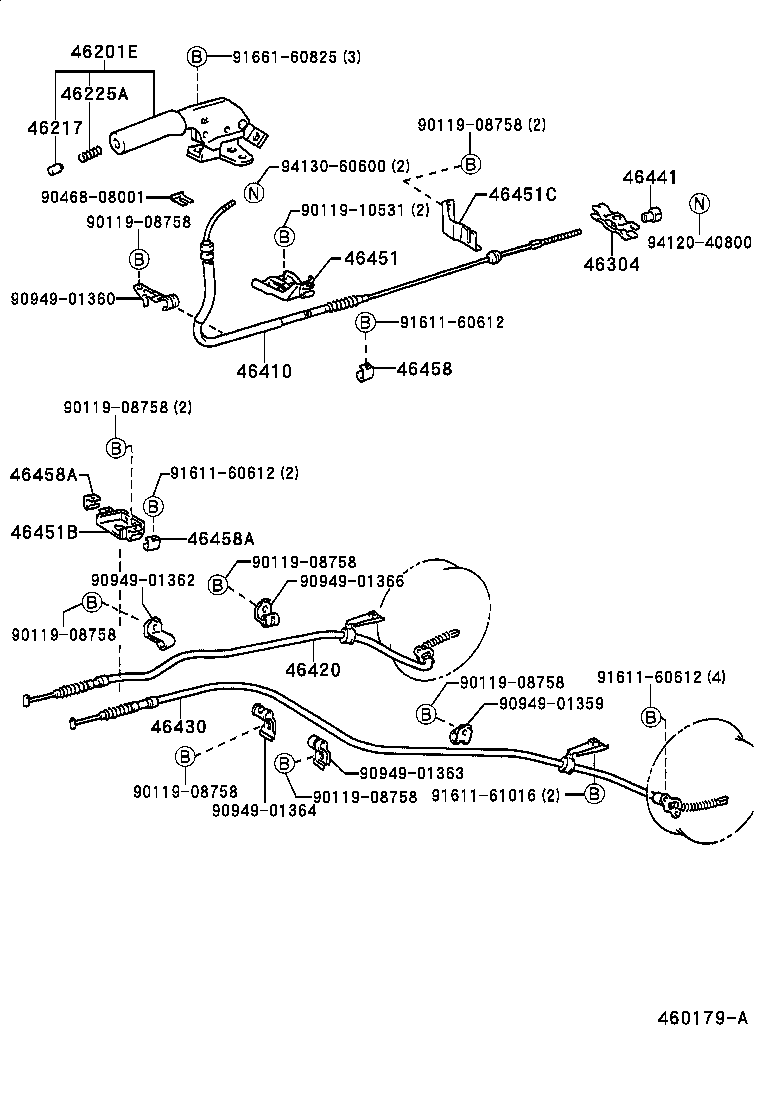

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46304 46410 46420 46430 46441 46451 46451B 46451C 46458 46458A 46458A 9011908758 9011908758 9011908758 9011908758 9011908758 9011908758 9011908758 9011908758 9011910531 9046808001 9094901359 9094901360 9094901362 9094901363 9094901364 9094901366 9161160612 9161160612 9161160612 9161161016 9166160825 9412040800 9413060600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-2702104

CM5#,6#,KM5#,YM55,60..DX

BLUE,TRIM8#

 1
46201-2702004

CM5#,6#,KM5#,YM55,60..DX

BLUE,TRIM8#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1202004

CM5#,6#,KM5#,YM55,60..DX

DEEP BLUE,TRIM8#

 1
46217-2002024

CM5#,6#,KM5#,YM55,60..DX

BLUE,TRIM8#

 1
46217-2002014

CM5#,6#,KM5#,YM55,60..DX

DEEP BLUE,TRIM8#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745

CM5#,6#,KM5#,YM55,60

 1
90501-10132

CM5#,6#,KM5#,YM55,6#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-22020

CM5#,6#,KM5#,YM55,6#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-27170

KM5#,YM55,6#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-27250

CM50,51,KM5#..JL,T1

 1
46420-27210

CM50,51,KM5#..SJL

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-27210

CM50,51,KM5#..SJL

 1
46430-27250

CM50,51,KM5#..JL,T1

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-35010

CM5#,6#,KM5#,YM55,6#

 1
46451 - BRACKET, CABLE SUPPORT
46451-27080

CM5#,6#,KM5#,YM55,6#

 1
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-27090

CM5#,6#,KM5#,YM55,6#

 1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-27100

CM5#,6#,KM5#,YM55,6#

 1
46458 - RETAINER, CABLE
46458-28010

CM5#,6#,KM5#,YM55,6#

 1
46458A - RETAINER, CABLE
46458-28010

CM5#,6#,KM5#,YM55,6#

 2
46458A - RETAINER, CABLE
46458-28010

CM5#,6#,KM5#,YM55,6#

 2
Common parts
90119-08758
90119-10531
90468-08001
90949-01359
90949-01360
90949-01362
90949-01363
90949-01364
90949-01366
91611-60612
91611-61016
91661-60825
94120-40800
94130-60600
