KM50-TRJDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

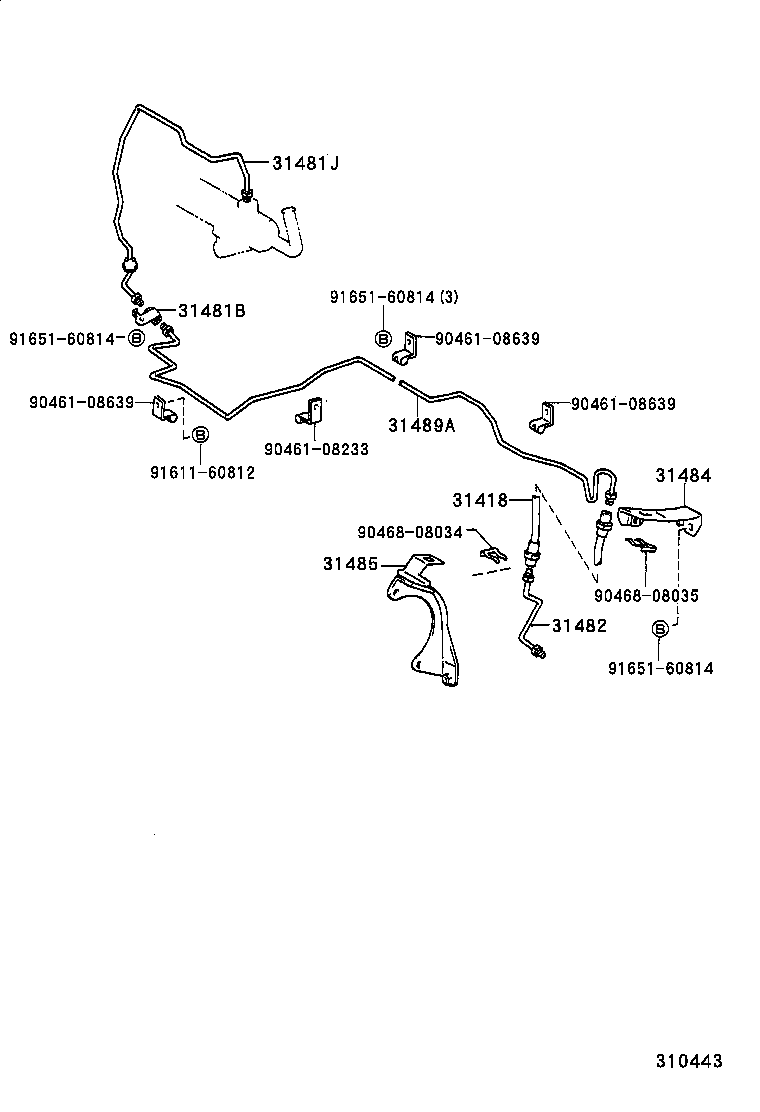

ILLUST NO. 2 OF 2(8610- )KM5#,YM55,6#..MTM

Click highlighted areas on diagram

diagram 31418 31481B 31481J 31482 31484 31485 31489A 9046108233 9046108639 9046108639 9046108639 9046808034 9046808035 9161160812 9165160814 9165160814 9165160814
Part # Description Qty Price
Common parts
90461-08233
90461-08639
90468-08034
90468-08035
91611-60812
91651-60814

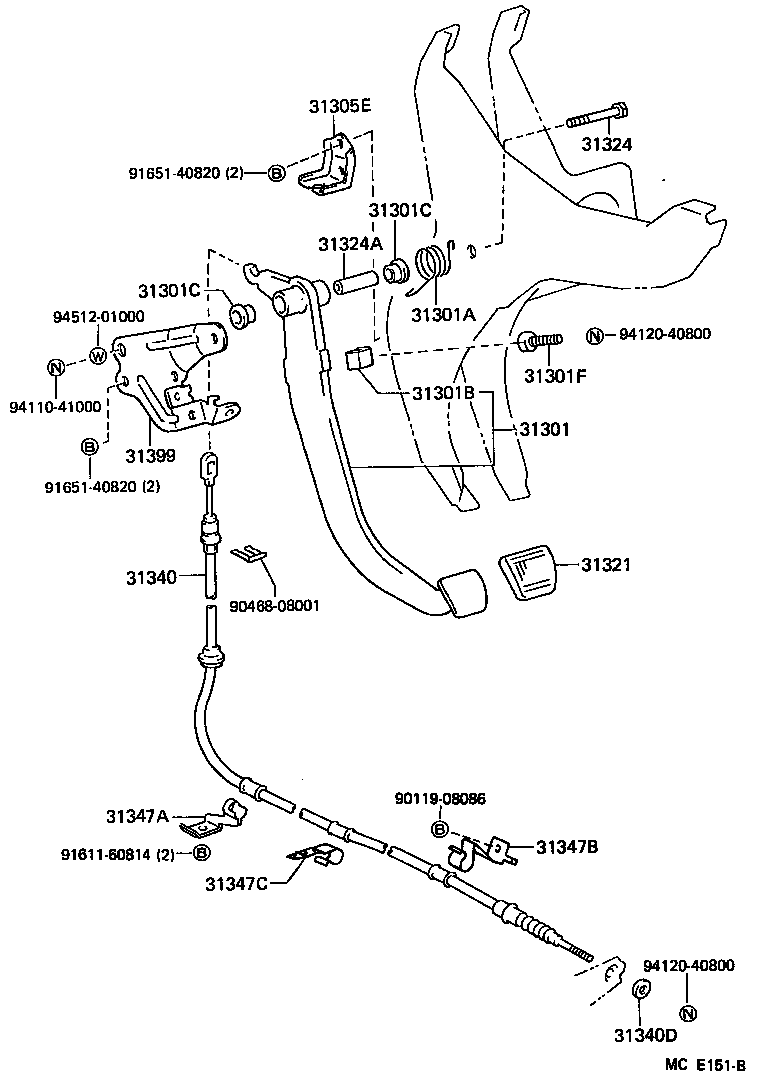

ILLUST NO. 1 OF 2(8610-9008)KM5#..4H

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305E 31321 31324 31324A 31340 31340D 31347A 31347B 31347C 31399 9011908086 9046808001 9161160814 9165140820 9165140820 9411041000 9412040800 9412040800 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-27131

KM5#..4H

 1
31301-27130

KM5#..4H

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35030

KM5#..4H

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-10020

CM5#,6#,KM5#,YM55,6#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CM5#,6#,KM5#,YM55,6#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CM5#,6#,KM5#,YM55,6#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

CM5#,6#,KM5#,YM55,6#..MTM

 1
31305E - BRACKET, CLUTCH PEDAL STOPPER
55182-95700

KM5#..4H

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

CM5#,6#,KM5#,YM55,6#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51060

CM5#,6#,KM5#,YM55,6#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

CM5#,6#,KM5#,YM55,6#..MTM

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-27150

KM5#..4H

 1
31340-27151

KM5#..4H

 1
31340D - NUT, WIRE ADJUST(FOR CLUTCH RELEASE CABLE)
31339-28010

KM5#..4H

 1
31347A - CLAMP, CLUTCH CABLE, NO.1
31347-27030

KM5#..4H

 1
31347B - CLAMP, CLUTCH CABLE, NO.2
31347-27090

KM5#..4H

 1
31347C - CLAMP, CLUTCH CABLE, NO.3
31347-27080

KM5#..4H

 1
31399 - SUPPORT, PEDAL BRACKET CLUTCH WIRE
55105-95705

KM5#..4H

 1
Common parts
90119-08086
90468-08001
91611-60814
91651-40820
94110-41000
94120-40800
94512-01000
