KM50-TLJDS3 (1986)
Toyota Lite/Townace Truck

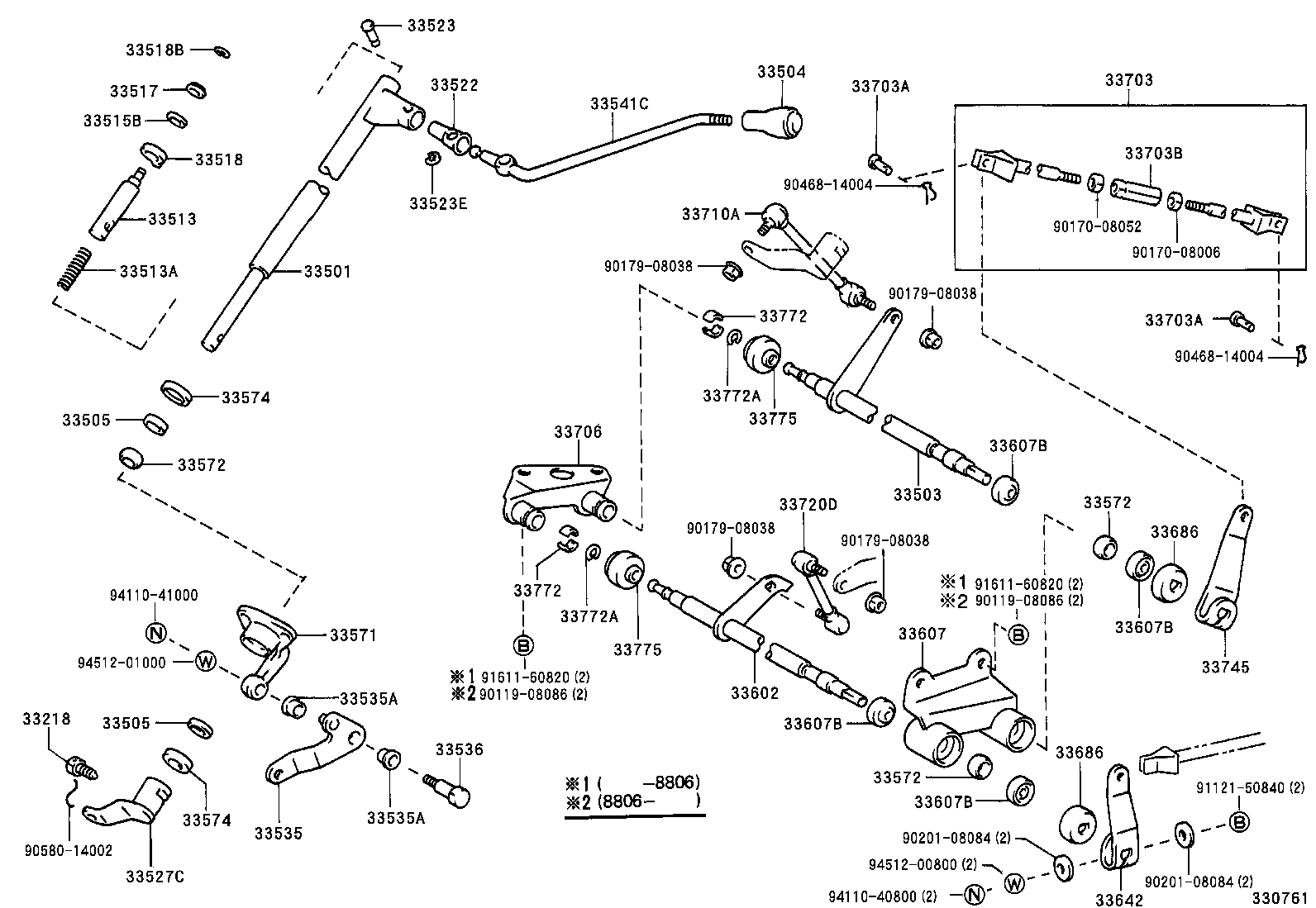

ILLUST NO. 1 OF 2(8610-9008)KM5#,YM55..4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33218 - BOLT, SHIFT LEVER LOCK | ||||
| 33218-35010 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
1 | ||
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-27130 |
KM5#,YM55,60..4H |
1 | ||
| 33503 - LEVER SUB-ASSY, SHIFT(FOR COLUMN SHIFT) | ||||
| 33503-27170 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
1 | ||
| 33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33504-30110 |
CM5#,6#,KM5#,YM55,6#..3HC,4H,5H |
1 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 90303-17005 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 90303-17005 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-36020 |
CM51,55,KM5#,YM55,60..3HC,4H,4HC |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14395 |
CM5#,6#,KM5#,YM55,6#..3HC,4H,4HC,5H |
1 | ||
| 33515B - SEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT) | ||||
| 33515-30010 |
CM5#,6#,KM5#,YM55,6#..3HC,4H,4HC,5H |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
CM5#,6#,KM5#,YM55,6#..3HC,4H,4HC,5H |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-36010 |
CM5#,6#,KM5#,YM55,6#..3HC,4H,4HC,5H |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
CM5#,6#,KM5#,YM55,6#..3HC,4H,4HC,5H |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-36010 |
CM5#,6#,KM5#,YM55,6#..3HC,4H,4HC,5H |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07001 |
CM5#,6#,KM5#,YM55,6#..3HC,4H,4HC,5H |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
CM5#,6#,KM5#,YM55,6#..3HC,4H,4HC,5H |
1 | ||
| 33527C - LEVER, CONTROL SHIFT (FOR COLUMN SHIFT) | ||||
| 33527-27090 |
CM50,55,6#,KM5#,YM55,60..MTM..DX |
1 | ||
| 33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT) | ||||
| 33535-27090 |
KM5#,YM55..4H |
1 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33536 - SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT) | ||||
| 33536-25010 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
1 | ||
| 33541C - LEVER, SHIFT (FOR COLUMN SHIFT) | ||||
| 33541-27200 |
CM50,55,6#,KM5#,YM55,60..3HC,4H,5H |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-27040 |
KM5#,YM55..4H |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-36010 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-36010 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-36010 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 33574-25010 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 33574-25010 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33602 - LEVER SUB-ASSY, SELECT (FOR COLUMN SHIFT) | ||||
| 33602-27090 |
KM5#,YM55..4H |
1 | ||
| 33607 - SUPPORT SUB-ASSY, CONTROL ROD (FOR COLUMN SHIFT) | ||||
| 33607-27100 |
KM5#,YM55..4H |
1 | ||
| 33607B - SEAL, OIL (FOR CONTROL ROD SUPPORT) | ||||
| 90312-16004 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33607B - SEAL, OIL (FOR CONTROL ROD SUPPORT) | ||||
| 90312-16004 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33607B - SEAL, OIL (FOR CONTROL ROD SUPPORT) | ||||
| 90312-16004 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33607B - SEAL, OIL (FOR CONTROL ROD SUPPORT) | ||||
| 90312-16004 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33642 - LEVER, GEAR SELECTING, NO.2 | ||||
| 33642-27040 |
KM5#,YM55..4H |
1 | ||
| 33686 - COVER, CONTROL LEVER DUST (FOR COLUMN SHIFT) | ||||
| 33686-26010 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
1 | ||
| 33686 - COVER, CONTROL LEVER DUST (FOR COLUMN SHIFT) | ||||
| 33686-26010 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
1 | ||
| 33703 - ROD SUB-ASSY, GEAR SHIFTING, NO.2 (FOR COLUMN SHIFT) | ||||
| 33703-27100 |
CM50,55,6#,KM5#,YM55,60..MTM..DX |
1 | ||
| 33703-27100 |
KM5#,YM55..4H |
1 | ||
| 33703A - PIN, W/HOLE (FOR GEAR SHIFTING ROD NO.2) | ||||
| 90240-08042 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33703A - PIN, W/HOLE (FOR GEAR SHIFTING ROD NO.2) | ||||
| 90240-08042 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33703B - TURN BUCKLE(FOR GEAR SHIFTING NO.2 ROD) | ||||
| 90587-08002 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
1 | ||
| 33706 - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR COLUMN SHIFT) | ||||
| 33706-27070 |
KM5#,YM55..4H |
1 | ||
| 33710A - ROD ASSY, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33710-27100 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
1 | ||
| 33720D - ROD ASSY, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33720-27110 |
KM5#,YM55..4H |
1 | ||
| 33745 - LEVER, GEAR SHIFTING, NO.2 (FOR COLUMN SHIFT) | ||||
| 33745-27050 |
KM5#,YM55..4H |
1 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
KM5#,YM55..4H |
4 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
KM5#,YM55..4H |
4 | ||
| 33772A - RING, SNAP (FOR CROSS SHAFT SUPPORT BUSH) | ||||
| 96151-01600 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
1 | ||
| 33772A - RING, SNAP (FOR CROSS SHAFT SUPPORT BUSH) | ||||
| 96151-01600 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
1 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-20020 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
1 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-20020 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90170-08006 | ||||
| 90170-08052 | ||||
| 90179-08038 | ||||
| 90201-08084 | ||||
| 90468-14004 | ||||
| 90580-14002 | ||||
| 91121-50840 | ||||
| 91611-60820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||

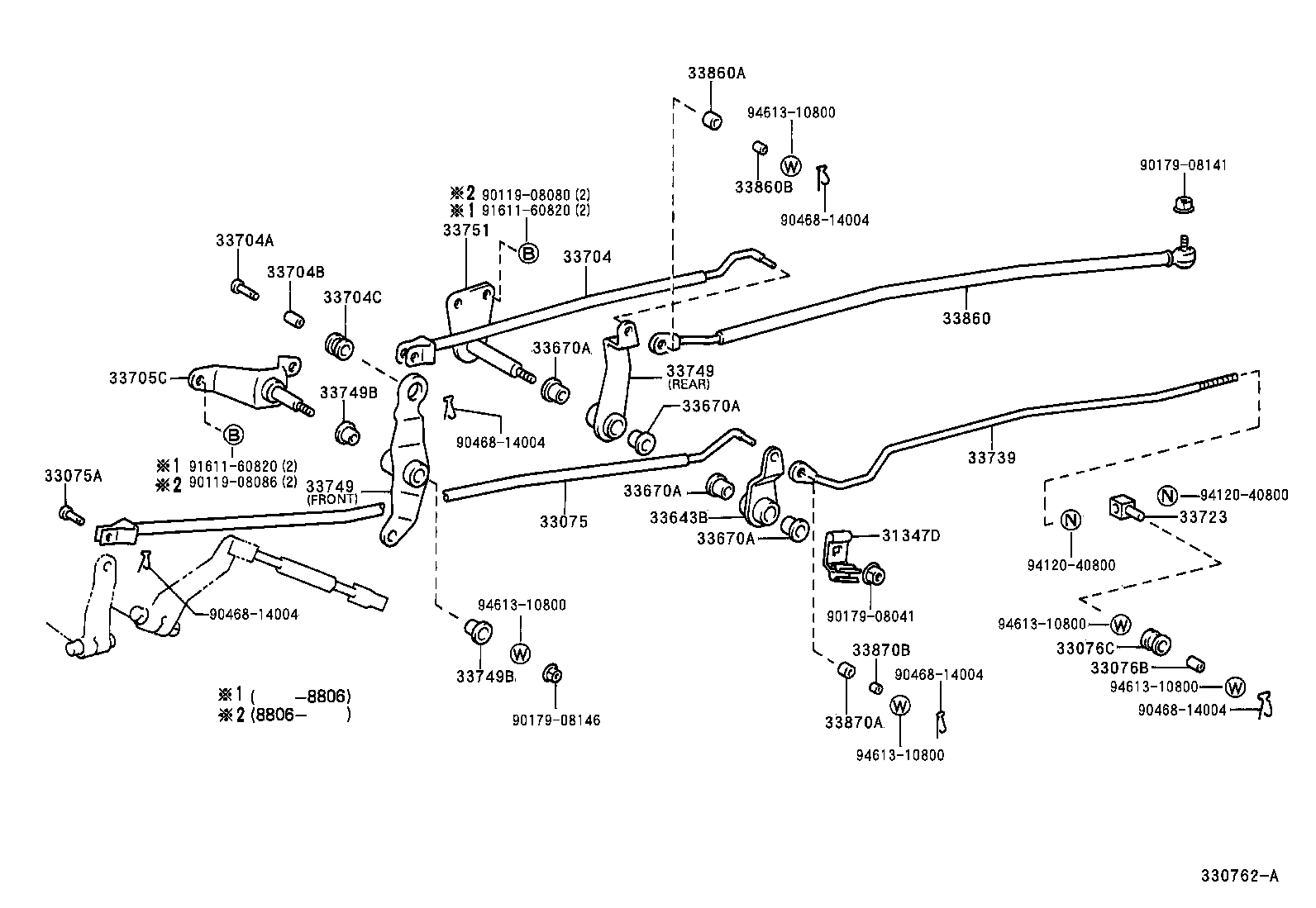

ILLUST NO. 2 OF 2(8610-9008)KM5#,YM55..4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31347D - CLAMP, CLUTCH CABLE(FOR CONTROL LEVER SUPPORT) | ||||
| 31347-27100 |
KM5#,YM55..4H |
1 | ||
| 33075 - ROD SUB-ASSY, GEAR SELECTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33075-27140 |
KM5#,YM55..4H |
1 | ||
| 33075A - PIN, W/HOLE(FOR GEAR SELECTING ROD NO.2) | ||||
| 90240-08042 |
KM5#,YM55..4H |
1 | ||
| 33076B - BUSHING(FOR GEAR SELECTING ROD) | ||||
| 90389-08005 |
KM5#,YM55..4H |
1 | ||
| 33076C - GROMMET(FOR GEAR SELECTING ROD) | ||||
| 90480-17015 |
KM5#,YM55..4H |
1 | ||
| 33643B - LEVER, GEAR SELECTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33643-27060 |
KM5#,YM55..4H |
1 | ||
| 33670A - BUSH (FOR CONTROL ROD SUPPORT) | ||||
| 90386-15110 |
KM5#,YM55..4H |
4 | ||
| 33670A - BUSH (FOR CONTROL ROD SUPPORT) | ||||
| 90386-15110 |
KM5#,YM55..4H |
4 | ||
| 33670A - BUSH (FOR CONTROL ROD SUPPORT) | ||||
| 90386-15110 |
KM5#,YM55..4H |
4 | ||
| 33670A - BUSH (FOR CONTROL ROD SUPPORT) | ||||
| 90386-15110 |
KM5#,YM55..4H |
4 | ||
| 33704 - ROD SUB-ASSY, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33704-27120 |
KM5#,YM55..4H |
1 | ||
| 33704A - PIN, W/HOLE (FOR GEAR SHIFTING ROD NO.3) | ||||
| 90240-08034 |
KM5#,YM55..4H |
1 | ||
| 33704B - BUSHING (FOR GEAR SHIFTING ROD) | ||||
| 90389-08005 |
KM5#,YM55..4H |
1 | ||
| 33704C - GROMMET (FOR GEAR SHIFTING ROD) | ||||
| 90480-17015 |
KM5#,YM55..4H |
1 | ||
| 33705C - SUPPORT SUB-ASSY, GEAR SHIFT LINK LEVER(FOR COLUMN SHIF | ||||
| 33705-27040 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
1 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-10020 |
KM5#,YM55..4H |
1 | ||
| 33739 - ROD, GEAR SELECTING, NO.4 | ||||
| 33739-27030 |
KM5#..4H |
1 | ||
| 33749 - LEVER, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33749-27070 |
KM5#,YM55..4H REAR |
1 | ||
| 33749-27080 |
KM5#,YM55..4H FRONT |
1 | ||
| 33749 - LEVER, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33749-27070 |
KM5#,YM55..4H REAR |
1 | ||
| 33749-27080 |
KM5#,YM55..4H FRONT |
1 | ||
| 33749B - BUSH (FOR COLUMN SHIFT GEAR SHIFTING LEVER) | ||||
| 90386-15110 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33749B - BUSH (FOR COLUMN SHIFT GEAR SHIFTING LEVER) | ||||
| 90386-15110 |
CM5#,6#,KM5#,YM55,6#..MTM..DX |
2 | ||
| 33751 - SUPPORT, GEAR SHIFT LINK LEVER (FOR COLUMN SHIFT) | ||||
| 33751-27050 |
KM5#,YM55..4H |
1 | ||
| 33860 - ROD ASSY, GEAR SHIFTING, NO.4 | ||||
| 33860-27040 |
KM5#..4H |
1 | ||
| 33860A - BUSH (FOR GEAR SHIFTING ROD) | ||||
| 90385-10063 |
KM5#,YM55..4H |
1 | ||
| 33860B - SPACER (FOR GEAR SHIFTING ROD) | ||||
| 90560-08366 |
KM5#,YM55..4H |
1 | ||
| 33870A - BUSH (FOR GEAR SELECTING ROD) | ||||
| 90385-10063 |
KM5#,YM55..4H |
1 | ||
| 33870B - SPACER (FOR GEAR SELECTING ROD) | ||||
| 90560-08366 |
KM5#,YM55..4H |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08086 | ||||
| 90179-08041 | ||||
| 90179-08141 | ||||
| 90179-08146 | ||||
| 90468-14004 | ||||
| 91611-60820 | ||||
| 94120-40800 | ||||
| 94613-10800 | ||||
