KM50-TLJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )MTM

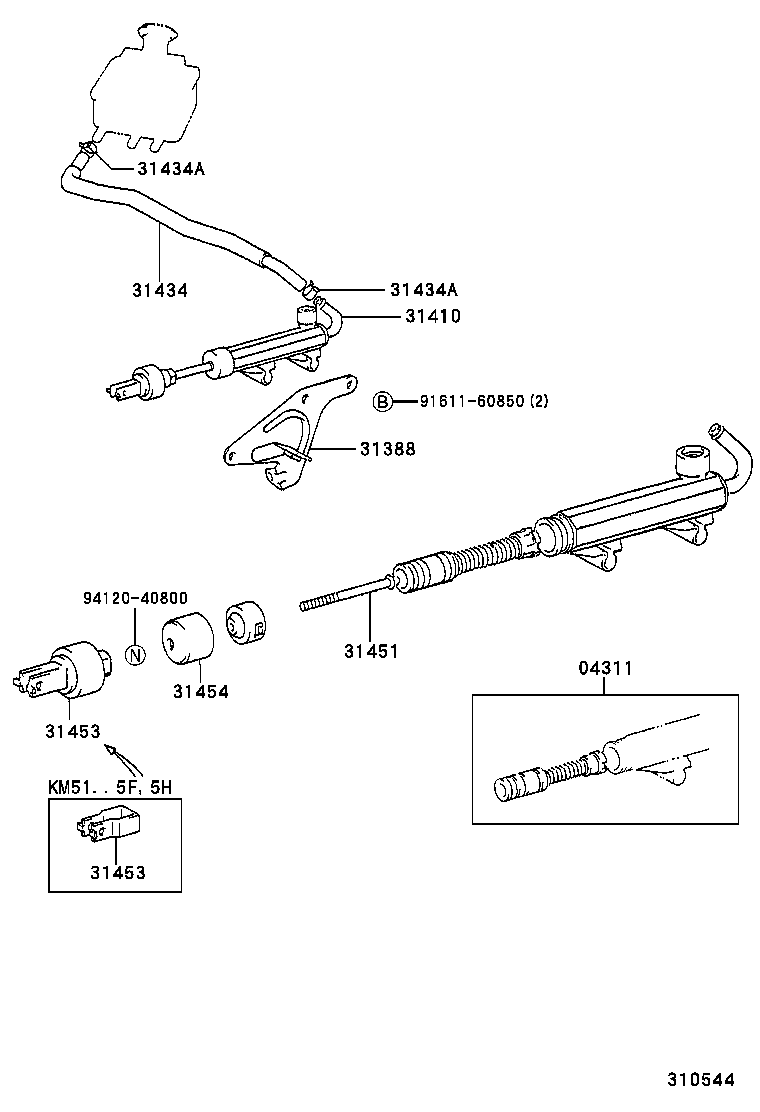

Click highlighted areas on diagram

diagram 04311 31388 31410 31434 31434A 31434A 31451 31453 31453 31454 9161160850 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-27010

CM5#,6#,KM5#,YM55,6#..MTM

 1
31388 - SUPPORT, CLUTCH MASTER CYLINDER
55105-95707

CM5#,6#,KM5#,YM55,6#..MTM

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-27040

CM5#,6#,KM5#,YM55,6#..MTM

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96132-30800

CM5#,6#,KM5#,YM55,6#..MTM

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96132-30800

CM5#,6#,KM5#,YM55,6#..MTM

 2
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-27010

CM5#,6#,KM5#,YM55,6#..MTM

 1
Common parts
91611-60850
94120-40800
