Toyota Lite/townace truck KM50 AIR CLEANER

KM50-TLJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990

Engine 4K

Transmission 4H MTM

Displacement 2500cc

Power 168 HP (125 kW)

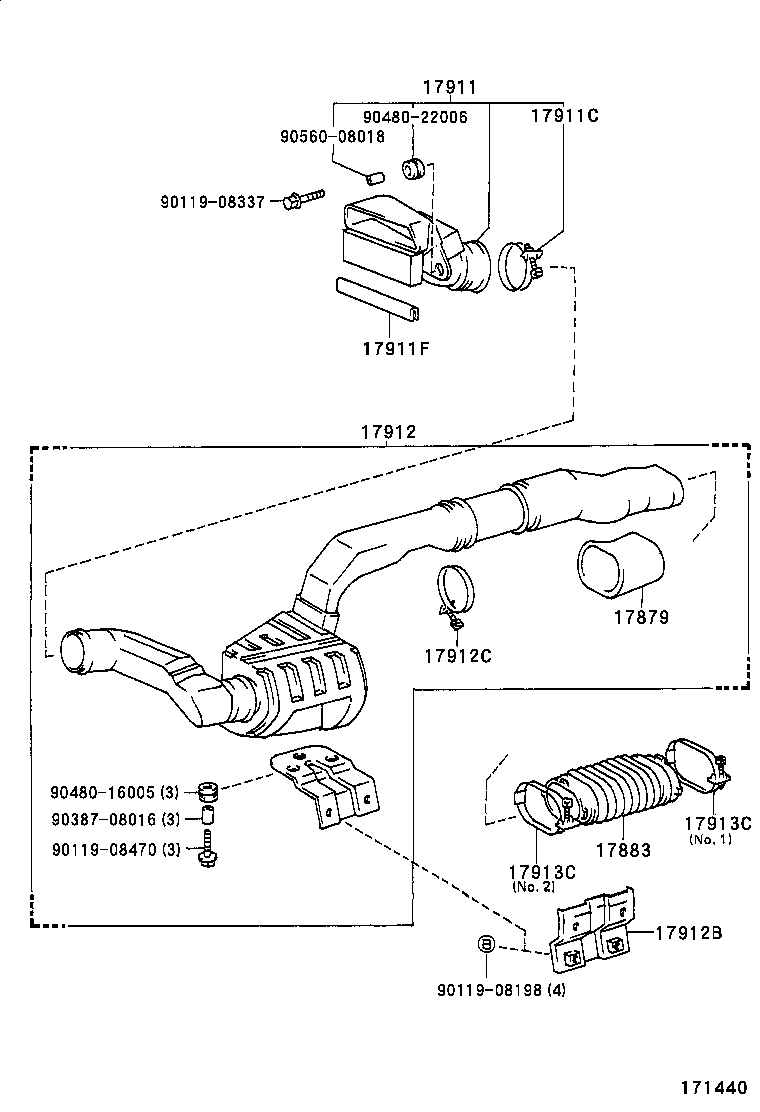

ILLUST NO. 2 OF 2(8610- )4K,5K

Click highlighted areas on diagram

Part #	Description	Period	Qty
17879 - PAD, AIR CLEANER INLET
17879-95702	4K,5K..KM5#	11/1987 - 08/1988	1
17879-95702	4K,5K..KM5#	11/1987 - 08/1988	1
17879-95702	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
17879-95702	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
17883 - HOSE, AIR CLEANER, NO.3
17883-95700	4K,5K..KM5#	10/1986 - 08/1988	1
17883-95700	4K,5K..KM5#	10/1986 - 08/1988	1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-95703	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
52810-95703	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
52810-95703	4K,5K..KM5#	11/1987 - 08/1988	1
52810-95703	4K,5K..KM5#	11/1987 - 08/1988	1
17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1
96111-10750	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
96111-10750	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
96111-10750	4K,5K..KM5#	11/1987 - 08/1988	1
96111-10750	4K,5K..KM5#	11/1987 - 08/1988	1
17911F - PROTECTOR, COOL AIR INTAKE INLET
53298-95700	4K..KM50 W/HOT AIR INTAKE	10/1986 - 01/1987	1
53298-95700	4K..KM50 W/HOT AIR INTAKE	10/1986 - 01/1987	1
17912 - DUCT, COOL AIR INTAKE, NO.2
52820-95702	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
52820-95702	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
52820-95702	4K,5K..KM5#	11/1987 - 08/1988	1
52820-95702	4K,5K..KM5#	11/1987 - 08/1988	1
17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2
52854-95701	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
52854-95701	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
52854-95701	4K,5K..KM5#	11/1987 - 08/1988	1
52854-95701	4K,5K..KM5#	11/1987 - 08/1988	1
17912C - CLAMP, COOL AIR INTAKE DUCT, NO.2
90460-71001	4K,5K..KM5#	10/1986 - 08/1988	1
90460-71001	4K,5K..KM5#	10/1986 - 08/1988	1
17913C - CLAMP, COOL AIR INTAKE DUCT, NO.3
90460-01041	4K,5K..KM5# NO.1	10/1986 - 03/1987	1
90460-01041	4K,5K..KM5# NO.1	10/1986 - 03/1987	1
90460-01044	4K..KM50 W/HOT AIR INTAKE,NO.2	10/1986 - 11/1987	1
90460-01044	4K..KM50 W/HOT AIR INTAKE,NO.2	10/1986 - 11/1987	1
90460-01049	4K..KM50 W/HOT AIR INTAKE,NO.1	03/1987 - 11/1987	1
90460-01049	4K..KM50 W/HOT AIR INTAKE,NO.1	03/1987 - 11/1987	1
90460-01044	4K,5K..KM5# NO.2	10/1986 - 08/1988	1
90460-01044	4K,5K..KM5# NO.2	10/1986 - 08/1988	1
90460-01049	4K,5K..KM5# NO.1	03/1987 - 08/1988	1
90460-01049	4K,5K..KM5# NO.1	03/1987 - 08/1988	1
90460-01041	4K..KM50 W/HOT AIR INTAKE,NO.1	10/1986 - 03/1987	1
90460-01041	4K..KM50 W/HOT AIR INTAKE,NO.1	10/1986 - 03/1987	1
17913C - CLAMP, COOL AIR INTAKE DUCT, NO.3
90460-01041	4K,5K..KM5# NO.1	10/1986 - 03/1987	1
90460-01041	4K,5K..KM5# NO.1	10/1986 - 03/1987	1
90460-01044	4K..KM50 W/HOT AIR INTAKE,NO.2	10/1986 - 11/1987	1
90460-01044	4K..KM50 W/HOT AIR INTAKE,NO.2	10/1986 - 11/1987	1
90460-01049	4K..KM50 W/HOT AIR INTAKE,NO.1	03/1987 - 11/1987	1
90460-01049	4K..KM50 W/HOT AIR INTAKE,NO.1	03/1987 - 11/1987	1
90460-01044	4K,5K..KM5# NO.2	10/1986 - 08/1988	1
90460-01044	4K,5K..KM5# NO.2	10/1986 - 08/1988	1
90460-01049	4K,5K..KM5# NO.1	03/1987 - 08/1988	1
90460-01049	4K,5K..KM5# NO.1	03/1987 - 08/1988	1
90460-01041	4K..KM50 W/HOT AIR INTAKE,NO.1	10/1986 - 03/1987	1
90460-01041	4K..KM50 W/HOT AIR INTAKE,NO.1	10/1986 - 03/1987	1
Common parts
90119-08198
90119-08337
90119-08470
90387-08016
90480-16005
90480-22006
90560-08018

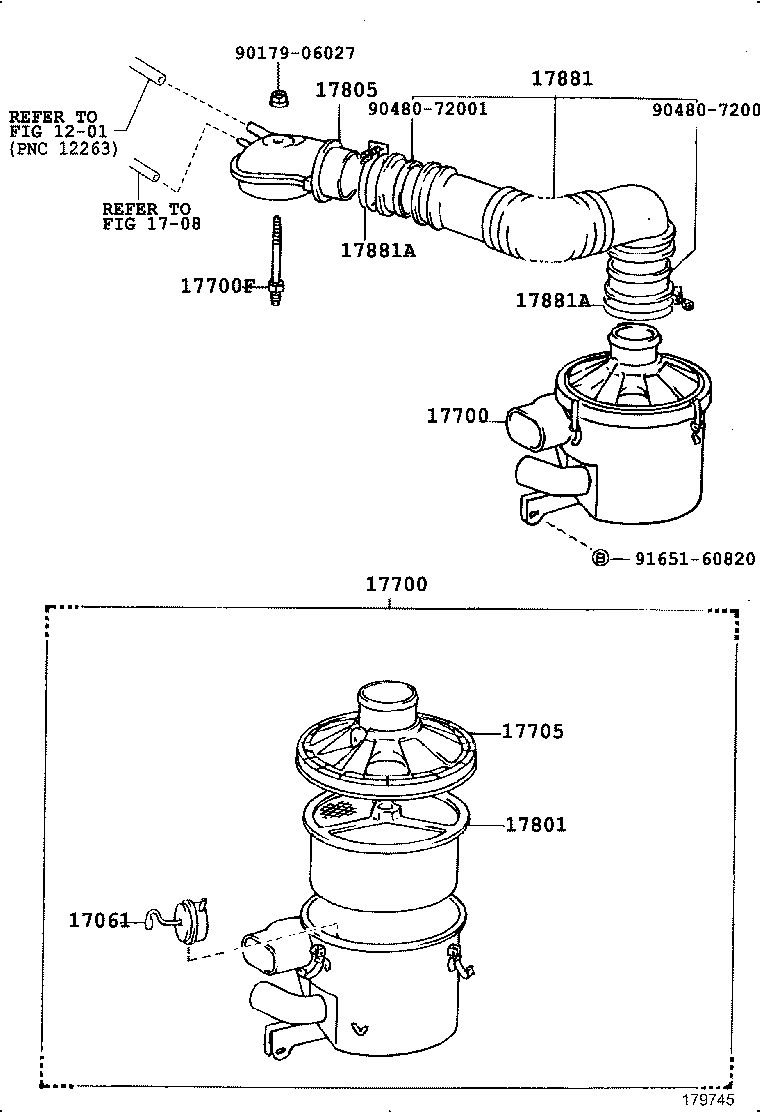

ILLUST NO. 1 OF 2(8610-9008)4K

Click highlighted areas on diagram

W/HOT AIR INTAKE

Part #	Description	Period	Qty
17061 - DIAPHRAGM SUB-ASSY
17061-13040	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
17061-13040	4K,5K..KM5#	11/1987 - 12/2999	1
17700 - CLEANER ASSY, AIR
17700-13640	4K..KM50	10/1986 - 08/1988	1
17700-13690	4K..KM50	08/1988 - 08/1990	1
17700-13660	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
17700-13660	4K..KM50 ｱﾘ(ﾎﾂﾄｴｱｲﾝﾃ-ｸ)	11/1987 - 08/1988	1
17700-13640	4K..KM50 LPG ｼﾖｳ	08/1988 - 08/1990	1
17700 - CLEANER ASSY, AIR
17700-13640	4K..KM50	10/1986 - 08/1988	1
17700-13660	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
17700-13660	4K..KM50 ｱﾘ(ﾎﾂﾄｴｱｲﾝﾃ-ｸ)	11/1987 - 08/1988	1
17700-13690	4K..KM50	08/1988 - 08/1990	1
17700-13640	4K..KM50 LPG ｼﾖｳ	08/1988 - 08/1990	1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06060	4K,5K..KM5#	10/1986 - 12/2999	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-13150	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
17705-13140	4K,5K..KM5#	10/1986 - 08/1988	1
17705-13150	4K..KM50 ｱﾘ(ﾎﾂﾄｴｱｲﾝﾃ-ｸ)	11/1987 - 08/1988	1
17705-13150	4K..KM50	08/1988 - 08/1990	1
17705-13140	4K..KM50 LPG ｼﾖｳ	08/1988 - 08/1990	1
17728 - VALVE, THERMOSTATIC
17728-31030	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
17728-31030	4K..KM50	11/1987 - 08/1990	1
17729 - GASKET, THERMOSTAT VALVE
17729-31010	4K..KM50	11/1987 - 08/1990	1
17729-31010	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
17749 - SUPPORT, THERMOSTAT VALVE
17749-31010	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1986	1
17749-13010	4K..KM50 W/HOT AIR INTAKE	11/1986 - 11/1987	2
17749-13010	4K..KM50	11/1987 - 08/1990	2
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-13050	4K,5K..KM5#	10/1986 - 12/2999	1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-13060	4K..KM50	10/1986 - 08/1990	1
17881 - HOSE, AIR CLEANER, NO.1
17881-13160	4K,5K..KM5#	10/1986 - 02/1993	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-80001	4K,5K..KM5#	10/1986 - 02/1993	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-80001	4K,5K..KM5#	10/1986 - 02/1993	2
17882 - HOSE, AIR CLEANER, NO.2
17882-71021	4K..KM50 W/HOT AIR INTAKE	10/1987 - 11/1987	1
17881-74040	4K..KM50 W/HOT AIR INTAKE	10/1986 - 10/1987	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-47036	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-47036	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	2
17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1
17167-13060	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
17167-13060	4K..KM50	11/1987 - 08/1990	1
17903 - INLET SUB-ASSY, HOT AIR INTAKE, NO.2
17168-13020	4K..KM50	11/1987 - 08/1990	1
17168-13020	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
Common parts
90179-06027
90480-72001
91651-40814
91651-60610
91651-60820
Linked diagrams
1201
1708

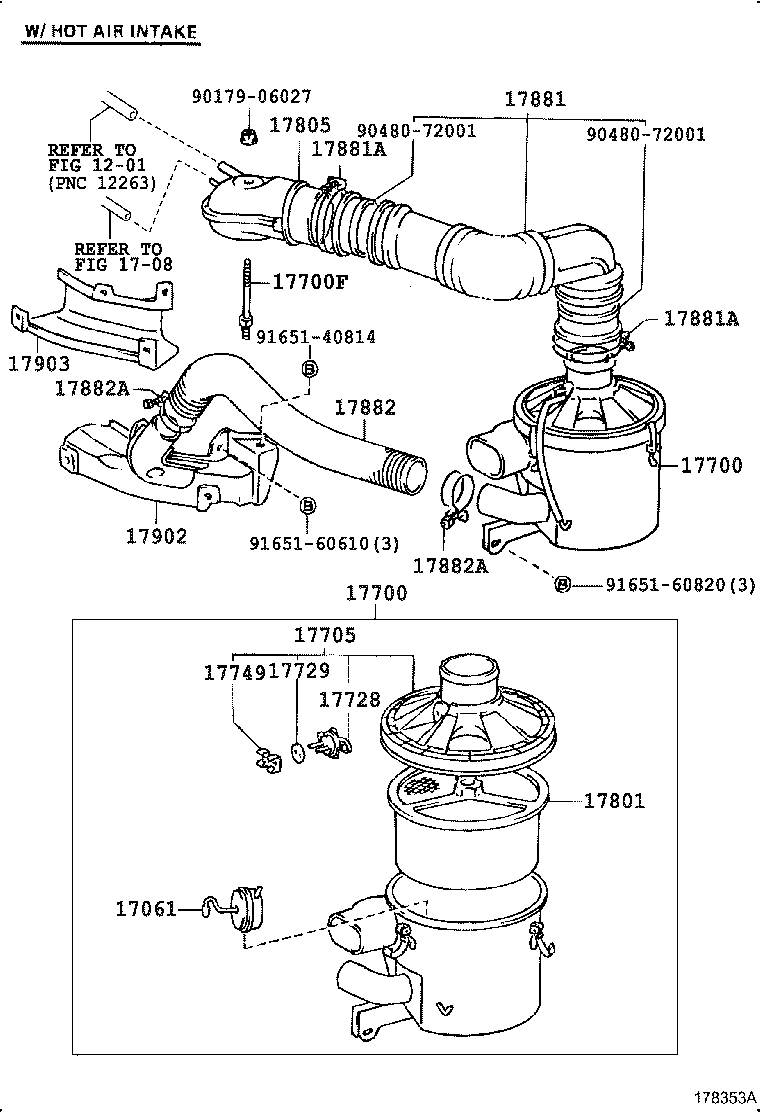

ILLUST NO. 1 OF 2(8610-8808)4K

Click highlighted areas on diagram

Part #	Description	Period	Qty
17061 - DIAPHRAGM SUB-ASSY
17061-13040	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
17061-13040	4K,5K..KM5#	11/1987 - 12/2999	1
17700 - CLEANER ASSY, AIR
17700-13640	4K..KM50	10/1986 - 08/1988	1
17700-13660	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
17700-13660	4K..KM50 ｱﾘ(ﾎﾂﾄｴｱｲﾝﾃ-ｸ)	11/1987 - 08/1988	1
17700-13690	4K..KM50	08/1988 - 08/1990	1
17700-13640	4K..KM50 LPG ｼﾖｳ	08/1988 - 08/1990	1
17700 - CLEANER ASSY, AIR
17700-13640	4K..KM50	10/1986 - 08/1988	1
17700-13660	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
17700-13660	4K..KM50 ｱﾘ(ﾎﾂﾄｴｱｲﾝﾃ-ｸ)	11/1987 - 08/1988	1
17700-13690	4K..KM50	08/1988 - 08/1990	1
17700-13640	4K..KM50 LPG ｼﾖｳ	08/1988 - 08/1990	1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06060	4K,5K..KM5#	10/1986 - 12/2999	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-13150	4K..KM50 W/HOT AIR INTAKE	10/1986 - 11/1987	1
17705-13140	4K,5K..KM5#	10/1986 - 08/1988	1
17705-13150	4K..KM50 ｱﾘ(ﾎﾂﾄｴｱｲﾝﾃ-ｸ)	11/1987 - 08/1988	1
17705-13150	4K..KM50	08/1988 - 08/1990	1
17705-13140	4K..KM50 LPG ｼﾖｳ	08/1988 - 08/1990	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-13050	4K,5K..KM5#	10/1986 - 12/2999	1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-13060	4K..KM50	10/1986 - 08/1990	1
17881 - HOSE, AIR CLEANER, NO.1
17881-13160	4K,5K..KM5#	10/1986 - 02/1993	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-80001	4K,5K..KM5#	10/1986 - 02/1993	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-80001	4K,5K..KM5#	10/1986 - 02/1993	2
Common parts
90179-06027
90480-72001
91651-60820
Linked diagrams
1201
1708
