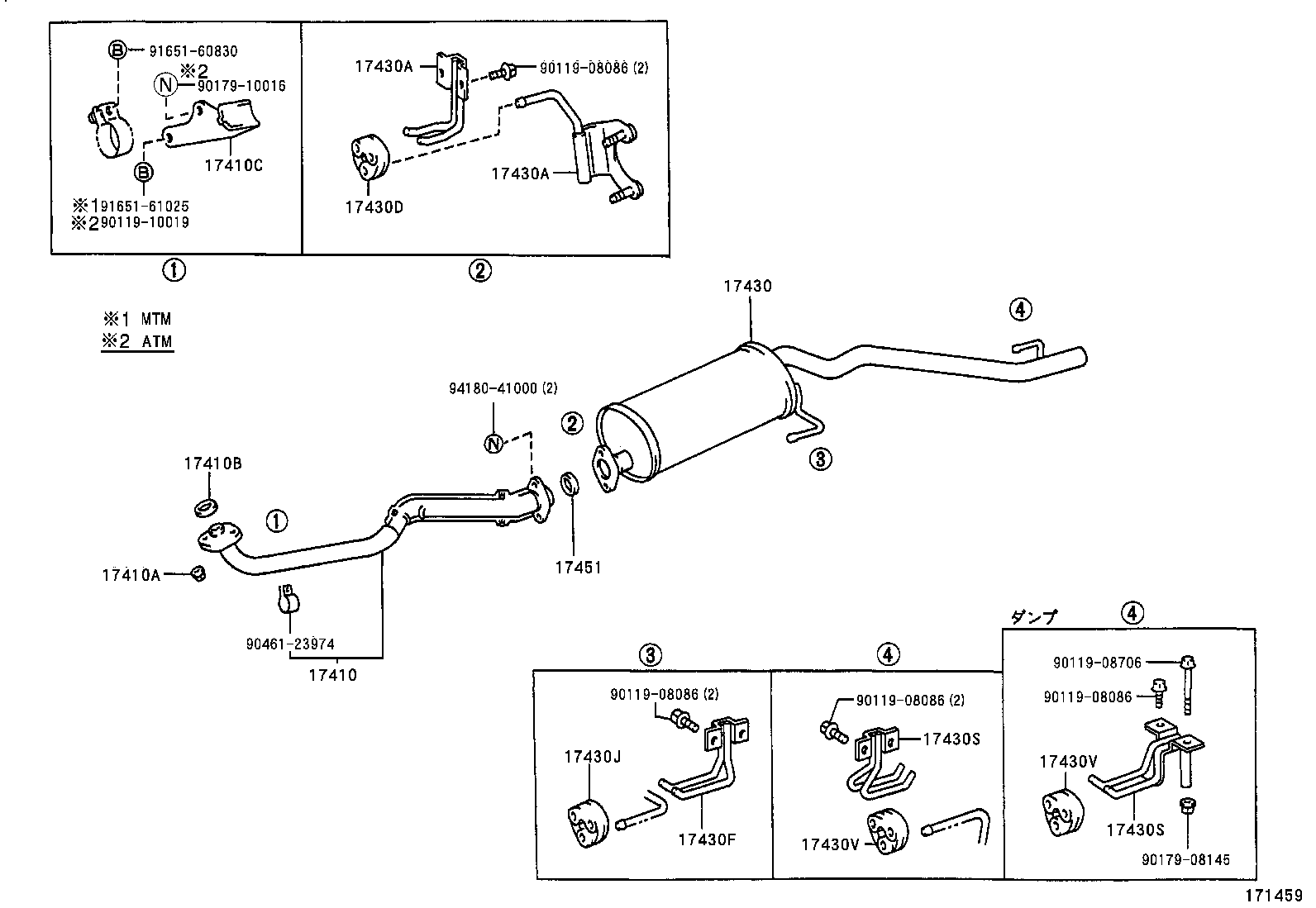

KM50-TLJDS3 (1986)
Toyota Lite/Townace Truck
(8610-9008)4K,5K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-13330 |
4K,5K..KM5#..SJL |
1 | ||
| 17401-13100 |
4K,5K..KM5#..JL,T1 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1C,2C,4K,5K..CM5#,6#,KM5# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
1C,2C,4K,5K..CM5#,6#,KM5# |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-13160 |
4K,5K..KM5# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-13330 |
4K,5K..KM5#..SJL |
1 | ||
| 17405-95700 |
4K..KM50..JL..IV ﾀﾞﾝﾌﾟ |
1 | ||
| 17430-13320 |
4K,5K..KM5#..JL,T1 |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17576-13010 |
4K,5K..KM5# PIPE SIDE |
1 | ||
| 17572-13060 |
4K,5K..KM5# BODY SIDE |
1 | ||
| 17572-13060 |
4K,5K..KM5# BODY SIDE |
1 | ||
| 17576-13010 |
4K,5K..KM5# PIPE SIDE |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17576-13010 |
4K,5K..KM5# PIPE SIDE |
1 | ||
| 17572-13060 |
4K,5K..KM5# BODY SIDE |
1 | ||
| 17572-13060 |
4K,5K..KM5# BODY SIDE |
1 | ||
| 17576-13010 |
4K,5K..KM5# PIPE SIDE |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17566-64010 |
1C,2C,4K,5K,2Y..CM50,51,55,60,65,KM5#,YM55,6# |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17574-13040 |
4K,5K..KM5# |
1 | ||
| 17574-13050 |
4K..KM50..JL..IV ﾀﾞﾝﾌﾟ |
1 | ||
| 17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17566-64010 |
4K,5K..KM5# |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17575-13070 |
4K,5K..KM5# |
1 | ||
| 17575-95700 |
4K..KM50..JL..IV ﾀﾞﾝﾌﾟ |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17575-13070 |
4K,5K..KM5# |
1 | ||
| 17575-95700 |
4K..KM50..JL..IV ﾀﾞﾝﾌﾟ |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17565-13030 |
4K..KM50..JL..IV ﾀﾞﾝﾌﾟ |
2 | ||
| 17566-64010 |
4K,5K..KM5# |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17565-13030 |
4K..KM50..JL..IV ﾀﾞﾝﾌﾟ |
2 | ||
| 17566-64010 |
4K,5K..KM5# |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
1C,2C,4K,5K..CM5#,6#,KM5# |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90119-08706 | ||||
| 90119-10019 | ||||
| 90179-08145 | ||||
| 90179-10016 | ||||
| 90461-23974 | ||||
| 91651-60830 | ||||
| 91651-61025 | ||||
| 94180-41000 | ||||
