KM50-TLJDS (1986)
Toyota Lite/Townace Truck
Production
Oct 1986
-
Aug 1990
Engine
4K
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8610-9008)4K

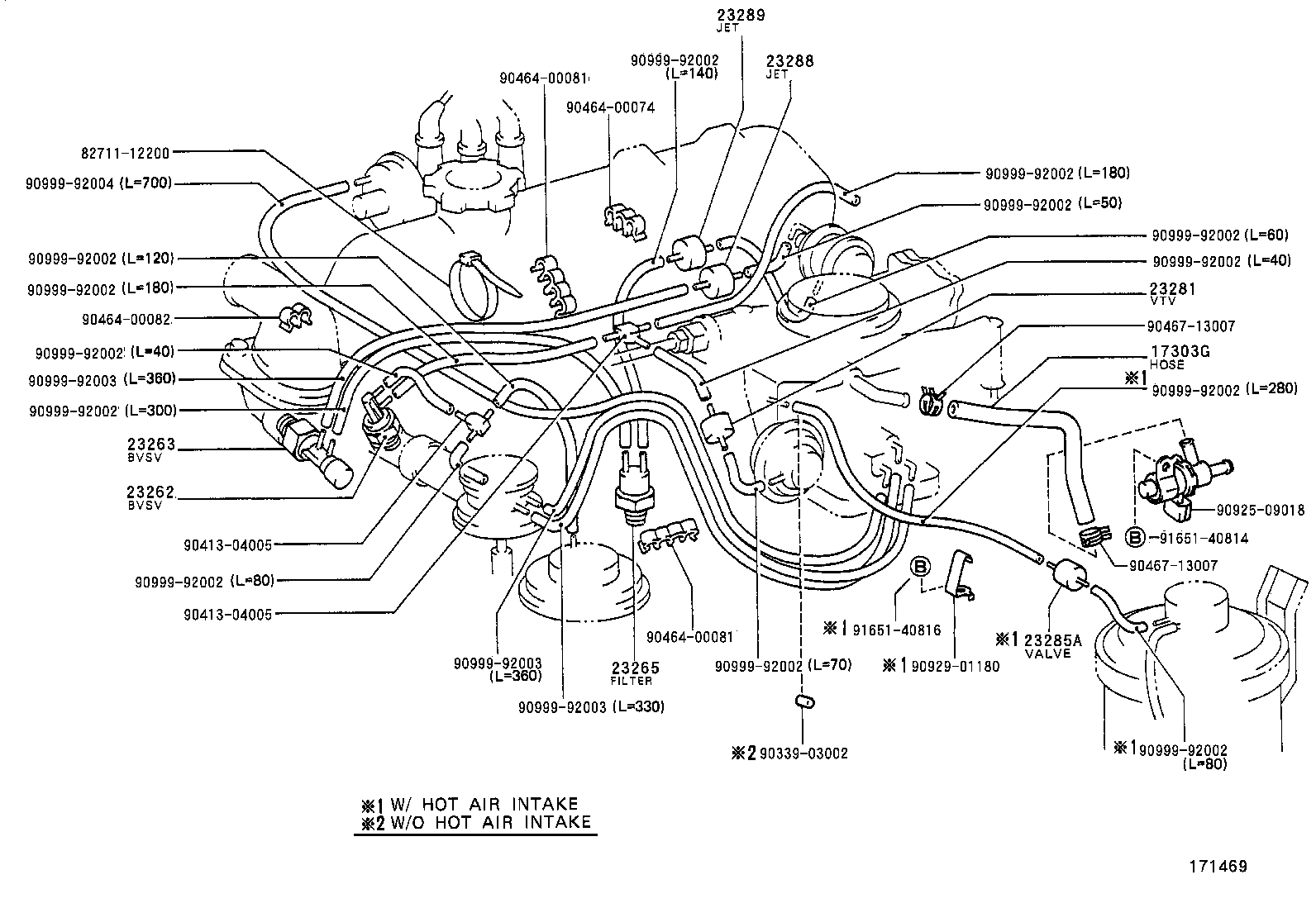

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303G - HOSE, NO.3(FOR AIR PIPE) | ||||
| 23826-13050 |
4K..KM50 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05051 |
4K,5K..KM5# |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05074 |
4K..KM50 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4K,5K..KM5# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01094 |
4K..KM50 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4K..KM50 |
1 | ||
| 90917-10049 |
4K..KM50 W/HOT AIR INTAKE |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04006 |
4K,5K..KM5# |
1 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04005 |
4K..KM50 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90467-13007 | ||||
| 90925-09018 | ||||
| 90929-01180 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
(8701- )4K

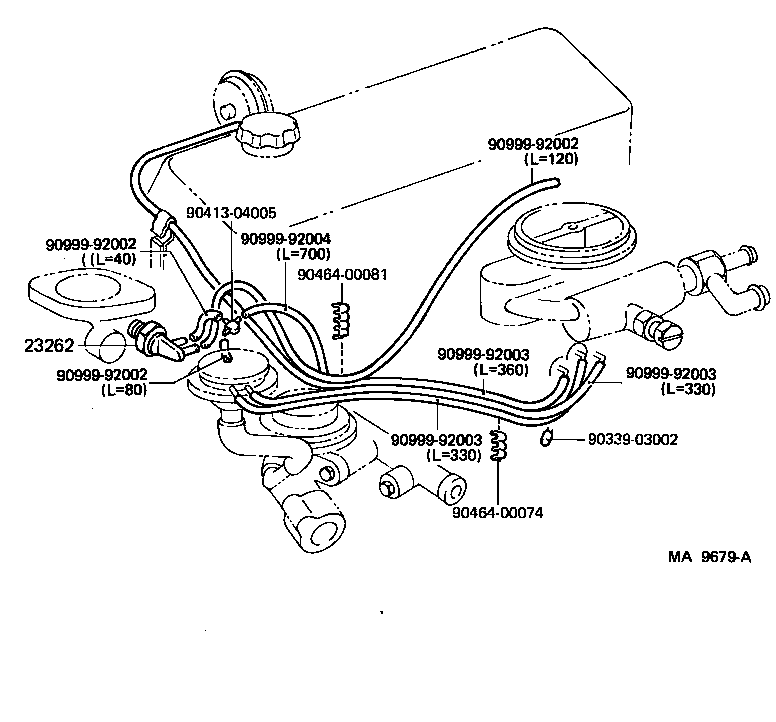

Click highlighted areas on diagram
LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05051 |
4K,5K..KM5# |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
