KM50-TBJDS3 (1986)
Toyota Lite/Townace Truck

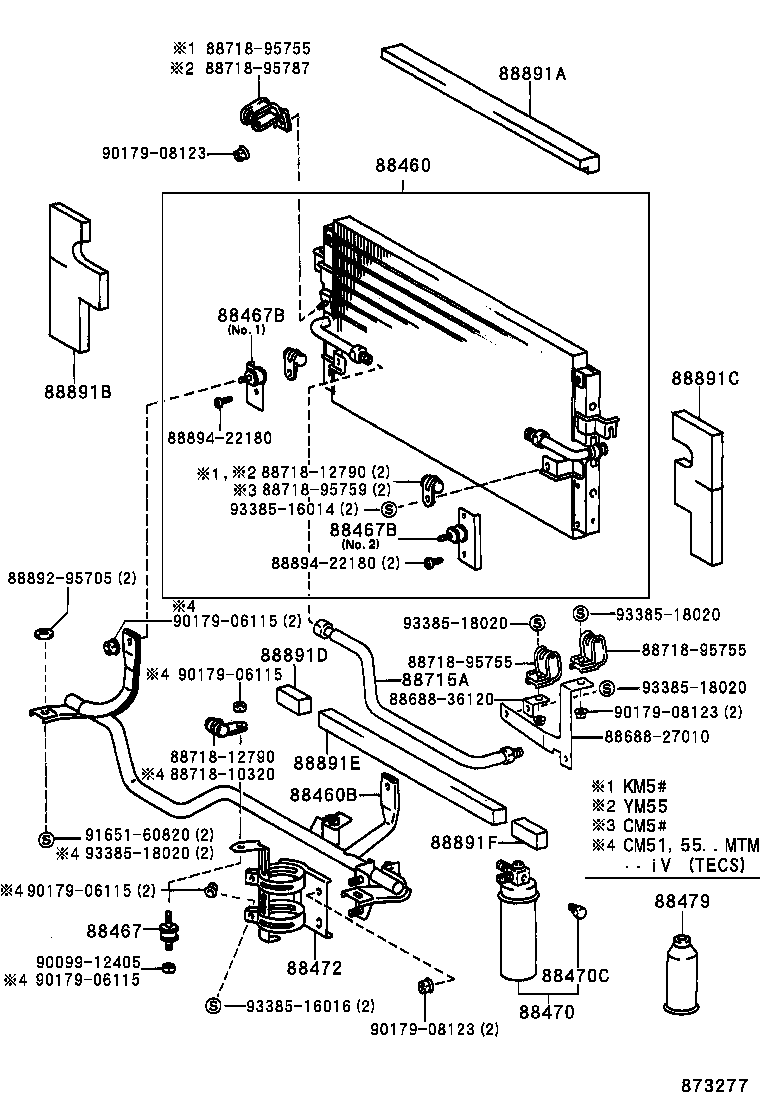

ILLUST NO. 1 OF 2(8610-8910)CM5#,KM5#,YM55 ; (8910-9310)CM5#,KM5#,YM55..4H,4HC,5F,5H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95720 |
KM5# |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95746 |
CM5#,KM5#,YM55..4H,4HC,5F,5H |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
CM5#,6#,KM5#,YM55 |
3 | ||
| 88467-14040 |
KM50,YM55;KM51..ATM |
3 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-95702 |
CM5#,KM5#,YM55 NO.1 |
1 | ||
| 88467-95703 |
CM5#,KM5#,YM55 NO.2 |
1 | ||
| 88467-95702 |
CM5#,KM5#,YM55 NO.1 |
1 | ||
| 88467-95703 |
CM5#,KM5#,YM55 NO.2 |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-95702 |
CM5#,KM5#,YM55 NO.1 |
1 | ||
| 88467-95703 |
CM5#,KM5#,YM55 NO.2 |
1 | ||
| 88467-95702 |
CM5#,KM5#,YM55 NO.1 |
1 | ||
| 88467-95703 |
CM5#,KM5#,YM55 NO.2 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-16010 |
CM5#,KM5#,YM55 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95707 |
CM5#,KM5#,YM55 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
CM5#,6#,KM5#,YM55,60 400G |
2 | ||
| 90986-02004 |
KM5# 250G |
2 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 53735-95700 |
CM50,51,55,KM5#,YM55 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-95711 |
CM50,51,55,KM5#,YM55 |
1 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-95712 |
CM50,51,55,KM5#,YM55 |
1 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 53733-95701 |
CM50,51,55,KM5#,YM55 |
1 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 53737-95701 |
CM50,51,55,KM5#,YM55 |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 53733-95701 |
CM50,51,55,KM5#,YM55 |
1 | ||
| Common parts | ||||
| 88688-27010 | ||||
| 88688-36120 | ||||
| 88718-10320 | ||||
| 88718-12790 | ||||
| 88718-95755 | ||||
| 88718-95759 | ||||
| 88718-95787 | ||||
| 88892-95705 | ||||
| 88894-22180 | ||||
| 90099-12405 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 91651-60820 | ||||
| 93385-16014 | ||||
| 93385-16016 | ||||
| 93385-18020 | ||||

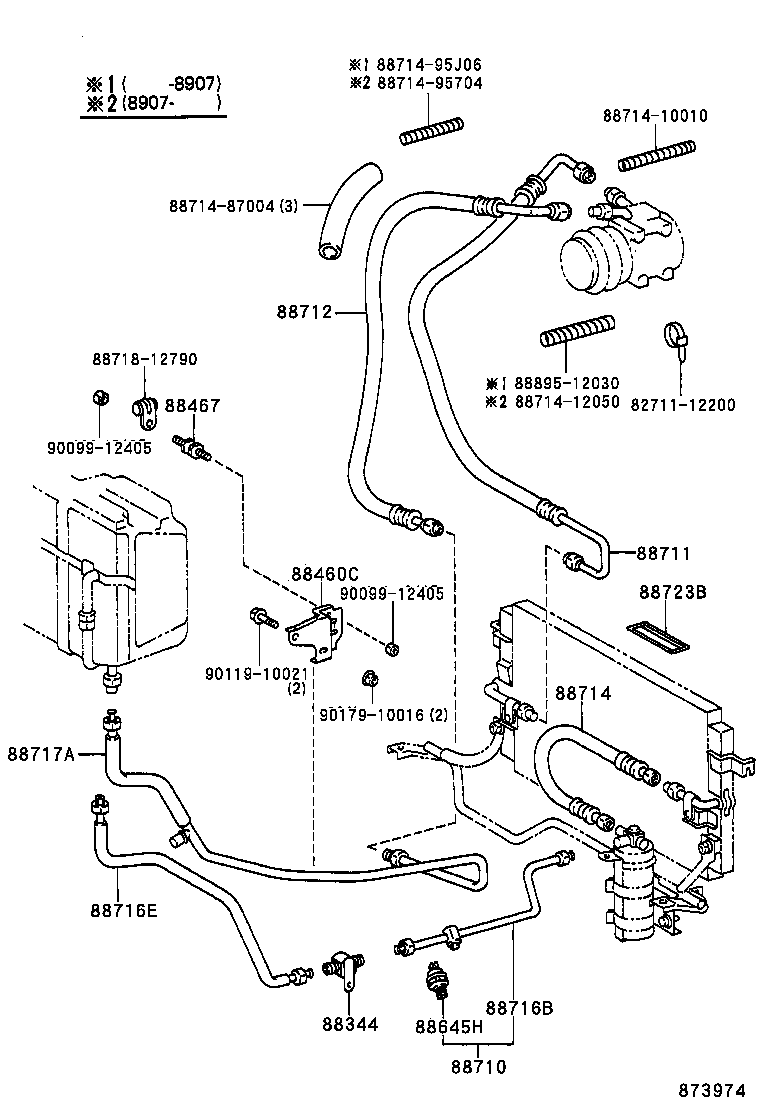

ILLUST NO. 2 OF 2(8610-8910)KM5# ; (8910-9310)KM5#..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88344 - GLASS SUB-ASSY, SIGHT | ||||
| 88481-87002 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95788 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
CM5#,6#,KM5#,YM55 |
3 | ||
| 88467-14040 |
KM50,YM55;KM51..ATM |
3 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-12020 |
CM5#,KM5#,YM55 |
2 | ||
| 88645-12020 |
CM5#,KM5# |
2 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-95700 |
CM5#,KM5#,YM55 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95741 |
KM5# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95734 |
KM5# |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95709 |
CM5#,KM5#,YM55 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95760 |
CM5#,KM5#,YM55 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95759 |
CM5#,KM5#,YM55 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95749 |
KM5#,YM55 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12040 |
CM5#,KM50 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88714-10010 | ||||
| 88714-12050 | ||||
| 88714-87004 | ||||
| 88714-95704 | ||||
| 88714-95J06 | ||||
| 88718-12790 | ||||
| 88895-12030 | ||||
| 90099-12405 | ||||
| 90119-10021 | ||||
| 90179-10016 | ||||
