KM50-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8610- )

Click highlighted areas on diagram

diagram 55905A 55905A 55905A 55906A 55908A 55909A 55910 5593310010 5593310010 8302 8302 8401 8401 8401 9018305033 9048013013 9354015016 9354015016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-95707

CM5#,6#,KM5#,YM55,60

FRESH-RECIRC

 1
55905-10110

CM5#,6#,KM5#,YM55,60

DEF-VENT,WARM-COOL

 2
55905A - KNOB, HEATER CONTROL
55905-95707

CM5#,6#,KM5#,YM55,60

FRESH-RECIRC

 1
55905-10110

CM5#,6#,KM5#,YM55,60

DEF-VENT,WARM-COOL

 2
55905A - KNOB, HEATER CONTROL
55905-95707

CM5#,6#,KM5#,YM55,60

FRESH-RECIRC

 1
55905-10110

CM5#,6#,KM5#,YM55,60

DEF-VENT,WARM-COOL

 2
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95707

CM5#,6#,KM5#,YM55,6#

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95706

CM5#,6#,KM5#,YM55,6#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95703

CM5#,6#,KM5#,YM55,6#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95723

CM5#,6#,KM5#,YM55,6#

 1
Common parts
55933-10010
90183-05033
90480-13013
93540-15016
Linked diagrams
8302
8401

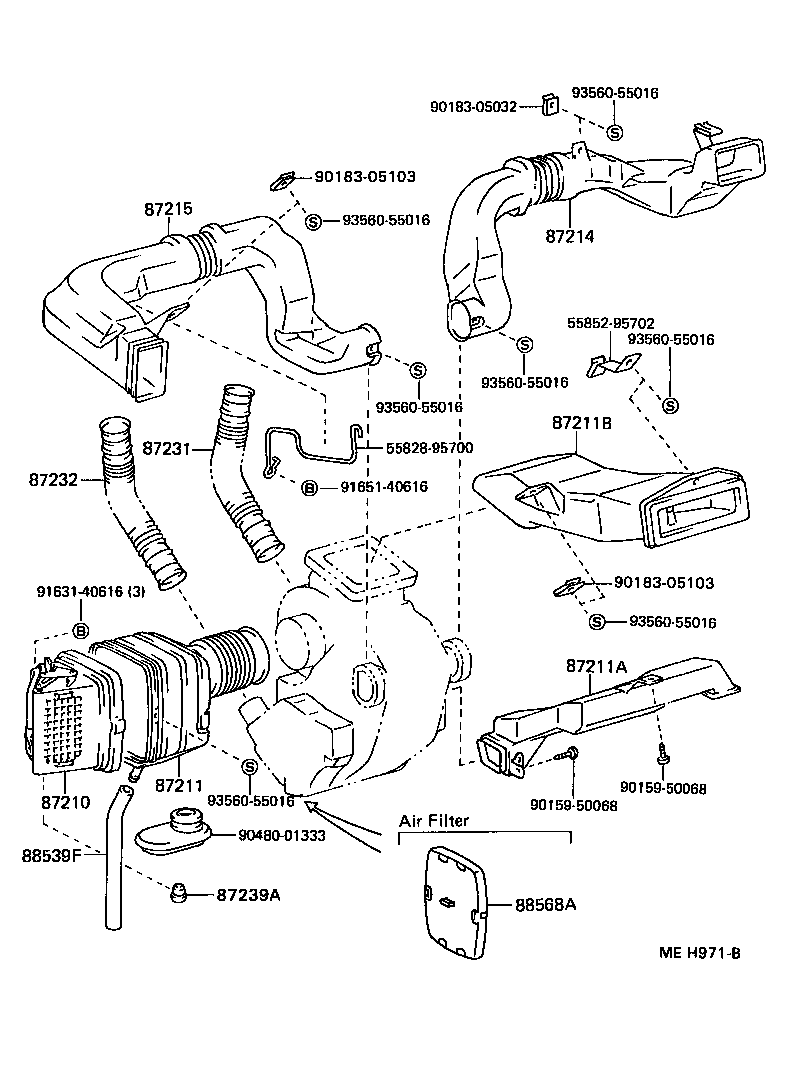

ILLUST NO. 2 OF 2(8610-9611)

Click highlighted areas on diagram

diagram 5582895700 5585295702 87210 87211 87211A 87211B 87214 87215 87231 87232 87239A 88539F 88568A 9015950068 9015950068 9018305032 9018305103 9018305103 9048001333 9163140616 9165140616 9356055016 9356055016 9356055016 9356055016 9356055016 9356055016 9356055016
Part # Description Qty Price
87210 - DAMPER ASSY, AIR
87210-95706

CM5#,6#,KM5#,YM55,6#

 1
87210-95709

CM5#,6#,KM5#,YM55,6#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87211 - DUCT, AIR, NO.1
87211-95715

CM5#,6#,KM5#,YM55,6#

 1
87211A - DUCT, AIR, NO.2
87211-95716

CM5#,6#,KM5#,YM55,6#

 1
87211B - DUCT, AIR, NO.3
55086-95701

CM5#,6#,KM5#,YM55,6#

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-95703

CM5#,6#,KM5#,YM55,6#

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55084-95703

CM5#,6#,KM5#,YM55,6#

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-95701

CM5#,6#,KM5#,YM55,60

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-95701

CM5#,6#,KM5#,YM55,60

 1
88539F - HOSE, DRAIN
88539-95711

CM5#,6#,KM5#,YM55,6#

 1
88568A - FILTER, AIR
88880-95700

CM5#,6#,KM5#,YM55,60

 1
Common parts
55828-95700
55852-95702
90159-50068
90183-05032
90183-05103
90480-01333
91631-40616
91651-40616
93560-55016
